Standard product information
GP4100 Series
Global Code
Product Features
4.3" Wide DC Ethernet Color
Display specifications
Display type
Display size
4.3" Wide
480 x 272 pixels
Effective display area
W95 x H53.9 mm [W3.74 x H2.12 in.]
Display colors
65,536 colors
White LED (Not user replaceable. When replacement is required, contact your local distributor.)
Backlight service life
50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
Brightness control
16 Levels (Adjusted with touch panel)
Electrical specifications
Rated input voltage
12 to 24 Vdc
Input voltage limits
10.2 to 28.8 Vdc
Allowable voltage drop
1 ms or less with lowest input voltage, 10 ms or less with rated input voltage
Power consumption
In-rush current
12 Vdc: 20 A or less, 24 Vdc: 40 A or less
Voltage endurance
1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)
Insulation resistance
500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
Environmental specifications
International safety standards
CEUKCAUL,cUL (61010) ListedATEXMarine ABSMarine ClassNKMarine LREACKCRCM
Surrounding air temperature
0 to 50 °C [32 to 122 °F]
Storage temperature
-20 to +60 °C [-4 to 140 °F]
Ambient humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
Storage humidity
10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
Pollution degree
For use in Pollution Degree 2 environment
Corrosive gases
Free of corrosive gases
Air pressure (altitude range)
800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
Vibration resistance
IEC/EN 61131-2 compliant
5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
9 to 150 Hz fixed acceleration: 9.8 m/s2
X, Y, Z directions for 10 cycles (approx. 100 min.)
Concussion resistance
IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
Electrostatic discharge immunity
Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)
Application memory
When using GP-Pro EX:
- Screen Area: 8MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: None
- Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
- Free Space: None

Removable System: No
Backup memory
When using GP-Pro EX:
- Screen Area: FLASH EPROM 128KB
- Variable Area: None

Battery: None

1For details on the memory size, refer to the manual for your screen editing software.

Interface specifications
USB (Type A)
Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Communication distance: 3 m [9.84 ft.] or less
USB (mini-B)
Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 3 m [9.84 ft] or less
IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1
Structural specifications
Functional grounding: Grounding resistance of 100 Ω, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard (same for FG and SG terminals).
Cooling method
Natural air circulation
IP65F, Type 1, Type 4X (indoor use only), Type 13*1
External dimensions
W124.9 x H90.4 x D38.8 mm [W4.92 x H3.56 x D1.53 in.]
Panel cut-out dimensions
W112.5 x H77.5 mm [W 4.43 x H3.05 in.]
with Panel Cutout Adapter (PFXZCFAD31, sold separately): W105 x H66 mm [W4.13 x H2.6 in.]
0.22 kg [0.49 lb] or less

1The front face of the unit, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification. Even though the unit's level of resistance is equivalent to these standards, oils that should have no effect on the unit can possibly harm the unit. This can occur in areas where either vaporized oils are present, or where low viscosity cutting oils are allowed to adhere to the unit for long periods of time. If the unit's front face protection sheet becomes peeled off, these conditions can lead to the ingress of oil into the unit and separate protection measures are suggested. Also, if non-approved oils are present, it may cause deformation or corrosion of the front panel's plastic cover. Therefore, prior to installing the unit, be sure to confirm the type of conditions that will be present in the unit's operating environment. If the installation gasket is used for a long period of time, or if the unit and its gasket are removed from the panel, the original level of the protection cannot be guaranteed. To maintain the original protection level, be sure to replace the installation gasket regularly.

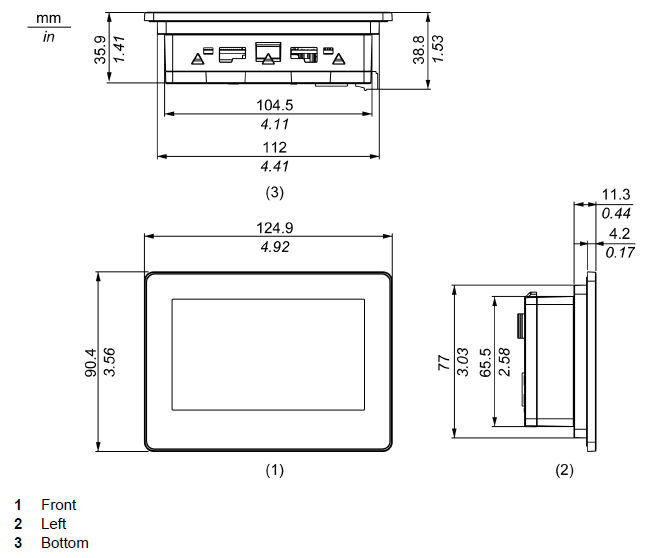

External dimensions

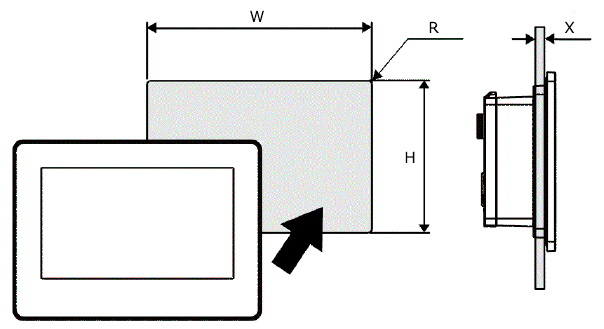

Panel cut-out dimensions
112.5 mm (+1/-0 mm)
(4.43 in. [+0.04/-0 in.])
77.5 mm (+1/-0 mm)
(3.05 in. [+0.04/-0 in.])
1.5 to 6 mm
(0.06 to 0.24 in.)
2 to 3 mm
(0.08 to 0.12 in.)
* with Panel Cutout Adapter (PFXZCFAD31, sold separately): W105 x H66 mm (W4.13 x H2.6 in.)
External dimensions with cable

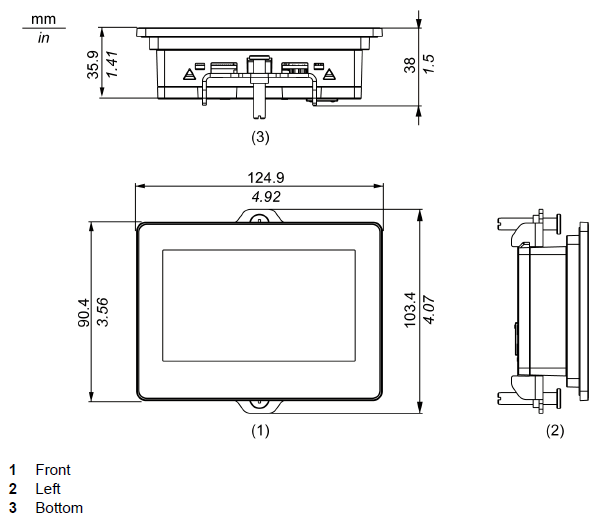

Dimensions with Installation Fasteners Attached
