PFXZCCEUSS1
PFXZCCEUSS1
產品基本資訊
Specification
產品基本資訊
產品類型
Peripheral Equipment
系列
EZ Series
顯示器尺寸

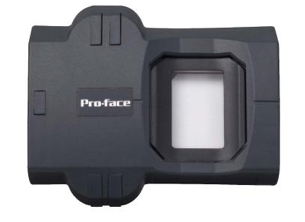

Fingerprint Recognition Unit
型號
PFXZCCEUSS1
全球碼
PFXZCCEUSS1
產品主要特色
USB (DC24V)
Specification
Specifications
Rated Input Voltage:
24VDC
Input Voltage Limits:
20 to 30 VDC
Power Consumption:
1.6W max
Surrounding Air Temperatuer:
0 to 50º C (32 to 122º F)
Supported Software:
GP-Pro EX Ver. 4.07.100 or later
Storage Temperature:
-25 to 70 deg C (-13 to 158 deg F)
Environmental Ratings:
IP65f front face/IP20 back
Certifications:
CE. CSA, UL, RoHS
General Specs
Functional Specs
Electrical Specs
Environmental Specs
External Specs
Dimensions
Datasheet
Attention: Compliance with laws in operating countries
EZ Fingerprint Recognition Unit involves fingerprint technology. In some jurisdictions, this product may be subject to notification to and/or approval by relevant local regulatory authority prior to importing this product into such jurisdictions and/or using this product in such jurisdictions. The jurisdictions which do not require such notification and/or approval as of December 1, 2012 ("Non-regulated Jurisdictions") are as follows:
Japan, Taiwan, USA, Canada, Mexico, Brazil, Australia, Singapore
In any other jurisdictions, we strongly suggest importers and users to contact the local authority and make inquiries as to notification and/or approval requirements with respect to the imports and the use of this product. Furthermore, if you intend to incorporate this product into any machine, device or application, additional regulations may apply. We also encourage importers and users in the Non-regulated Jurisdictions to confirm the latest notification and/or approval requirements with the local authority as relevant regulations may change from time to time.
It is your responsibility to comply with laws that regulate this product. We will not be liable for any claims or litigation arising from the imports or the use of this product in any jurisdiction. You will indemnify us from any claims or litigation arising from the imports or the use of this product.
General Specifications
Model
PFXZCCEUSS1
Supported Standards and Regulations
Supported Software
GP-Pro EX Ver. 4.07.100 or later
Functional Specifications
Memory Capacity
100 users (2 fingerprints for one user)
Error Rate
0.1% or less
Electrical Specifications
Rated Input Voltage
24 Vdc
Input Voltage Limits
20 to 30 Vdc
Voltage Drop
1ms
Power Consumption
1.6W max
In-Rush Current
2.5A max
Voltage Endurance
AC 2kV
Insulation Resistance
10MΩ or more
Environmental Specifications
Surrounding Air Temperature
0 to 50 ℃ (32 to 122 ℉)
Storage Temperature
-25 to 70 ℃ (-13 to 158 ℉)
Ambient Air and Storage Humidity
0 to 85%
Dust
IP65 front face
IP20 back
Pollution Degree
DP2
Corrosive Gasses
Free of corrosive gases
Operating Altitude
0 to 2000 m (0 to 6,561 ft.)
Vibration Resistance
1gn - 9Hz to 500 Hz
Amplitude 3mm - 5Hz to 9Hz
Electrical Fast Transient Burst
IEC61000-4-4
2kV Power Port
Electromagnetic Field
IEC61000-4-3
10 V/m
Electrostatic Discharge Immunity
IEC61000-4-2
4kV Contact Discharge
8kV Air Discharge
Shock Resistance
50gn, duration 11ms
No-load Current Consumption
50mA or less
Delays
First-up: less than 2s
Normal operating: less than 1s
External Specifications
External Dimensions
W69.3 x H54 x D78.5 mm (W2.73 x H2.13 x D3.09 in.)
Structure
NEMA #250/UL50 TYPE 12
(on the front panel when properly installed in an enclosure)
Cable Length
USB cable: 1.0 m (3.28 ft.)
Power cable: 2.0 m (6.56 ft.)
Weight
140g [0.31 lb]
Design the USB cable to be 3 m or less when it is extended.

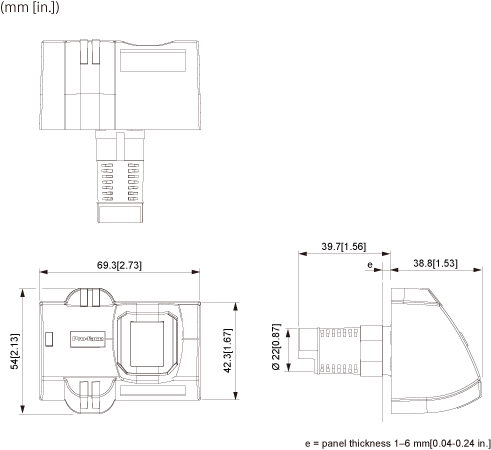

Dimensions
