PFXLM4301TADAC

產品基本資訊
產品類型
HMI+Control
系列
LT4000M Series
顯示器尺寸
5"
型號
PFXLM4301TADAC
全球碼
PFXLM4301TADAC
產品主要特色
5.7" DC AIO (Source) Type
銷售狀態
Sale
可否維修
- (不提供維修服務。以新品更換。)
顯示器規格
顯示類型
TFT 全彩 LCD
顯示尺寸
5.7"
解析度
320 x 240 像素 (QVGA)
有效可視面積
W115.2 x H86.4 mm [W4.54 x H3.40 in.]
顯示顏色
65,536色
背光
White LED, Non-exchangeable, LED ON / OFF control, adjustable screen saver activation time
亮度控制
16 階 (可由觸控面板調整)
觸控面板類型
電阻式薄膜(類比)
觸控面板使用年限
1百萬次以上
Language Fonts
日語、ASCII、簡體中文、繁體中文、韓語、俄語、泰語*1
Character Sizes
8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts
Font Sizes
Width can be expanded 1 to 8 times. Height can be expanded 1/2 and 1 to 8 times.
8 x 8 點
40 字 x 30 列
8 x 16 點
40 字 x 15 列
16 x 16 點
20 字 x 15 列
32 x 32 點
10 字 x 7 列

1字型種類和字元編碼詳情請參閱GP-Pro EX參考手冊。

電源規格
輸入電壓
24 Vdc
額定電壓
20 to 28.8 Vdc
允許的壓降
在20.4 Vdc時10 ms以下
耗電量
13 W以下
湧入電流
28.8 Vdc: 30 A以下
耐壓特性
500 Vdc for 1 minute
絕緣電阻
500 Vdc, 10 MΩ 以上
環境規格
國際安全標準
周圍空氣溫度
Horizontal installation: 0 to 50 °C [32 to 122 °F]
Vertical installation: 0 to 40 °C [32 to 104 °F]
儲存溫度
-20 至 60°C (-4 至 140°F)
環境濕度
5 至 85 % RH (濕球溫度: 最高39 °C [102.2 °F] - 非凝結環境)
儲存濕度
5 至 85 % RH (濕球溫度: 最高39 °C [102.2 °F] - 非凝結環境)
灰塵
0.1 mg/m3 (10-7 oz/ft3) 以下 (非傳導等級)
汙染程度
適用於汙染程度 2 的環境
腐蝕性氣體
非腐蝕性氣體的環境
耐氣壓震動（高度範圍）
800 至 1,114 hPa (海平線上2,000 m [6,561 ft.]以下)
耐震動
[Mounted on a DIN rail]
3.5 mm [0.138 in.] fixed amplitude from 5 to 8.4 Hz
9.8 m/s2 (1 gn) fixed acceleration from 8.4 to 150 Hz

[Mounted on a panel]
3.5 mm [0.138 in.] fixed amplitude from 5 to 8.6 Hz
9.8 m/s2 (1 gn) fixed acceleration from 8.6 to 150 Hz

[Vibration immunity (operating)]
IEC 61131-2
耐衝擊
[Mounted on a DIN rail] 147 m/s2 (15 gn) for a duration of 11 ms
[Mounted on a panel] 147 m/s2 (15 gn) for a duration of 6 ms
耐雜訊(快速暫態脈衝干擾)
Power lines:2 kV
Digital I/O:1 kV
Relay outputs:2 kV
Ethernet line:1kV
COM line:1 kV
CAN line:1 kV
抗靜電放電力
6 kV 接觸放電、8 kV 空氣放電
Standard compliance
IEC61131-2
Storage altitude
0～10,000m
Operating altitude
0～2,000m
Degree of protection (IEC61131-2)
IP20 with protective covers in place
Rediated radio frequency electromagnetic fields (IEC/EN 61000-4-3)
10V/m（80MHz～3GHz）
Surge immunity (IEC/EN 61000-4-5)
[Power supply] CM: 1 kV, DM: 0.5 kV
[Digital I/O] CM: 1 kV, DM: 0.5 kV
[Shielded cable] 1 kV

CM = common drive
DM = differential drive
Conducted disturbances induced by radio-frequency fields (IEC/EN 61000-4-6)
10Veff（0.15～80MHz）
Electric field strength (EN 55011 (IEC/CISPR11))
[30 to 230 MHz] quasi peak 10 m @40 dBμV/m
[230 MHz to 1 GHz] quasi peak 10 m @47 dBμV/m
Mains terminal dusturbance voltage (EN 55011 (IEC/CISPR11))
[150 to 500 kHz] quasi peak 79 dBμV
[500 kHz to 30 MHz] quasi peak 73 dBμV
記憶體
應用記憶體
FLASH EPROM 16 MB (includes screen editing program and extended logic program)*2
備份記憶體
nvSRAM 128 KB (Rechargeable lithium battery for data backup)
應用程式記憶體
FLASH EPROM 132 KB (等同於15,000 個 steps)*3
控制記憶體可變區
nvSRAM 64 KB (rechargeable lithium battery for data backup)
Font area
FLASH EPROM 8 MB (when limit exceeded, uses application memory)

2使用者應用程式可用區域

3軟體內最多可轉換60,000個 steps。但會減少內部記憶體(給畫面資料用的)容量1MB。

介面規格
序列(COM1)
RS-232C / RS485 x 1,
RS-232C (Connector type: RJ45, Isolation: None, Maximum baud rate: 115,200 bps, Cable Type: Shielded, Cable Maximum length: 15 m (49 ft), 5 Vdc power supply for RS-232C: None)
RS-485 (Connector type: RJ45, Isolation: None, Maximum baud rate: 300 to 115,200 bps, Cable Type: Shielded, Cable Maximum length: 200 m (656 ft), Polarization: Setting is required via software when connecting Multiple LTs. Refer to the "GP-Pro EX Device/ PLC Manual" for the setting. 5 Vdc power supply for RS-485: None)*4
USB Type A
符合USB 2.0 (Type A) x 1
電源輸入電壓: 5 Vdc ±5 %
輸出電流: 500 mA以下
傳輸距離: 5 m [16.4 ft.]以下
乙太網路
IEEE802.3 compliant Ethernet x 1
(Connector type: RJ45, Driver: 10 M half duplex (auto negotiation) / 100 M full duplex (auto negotiation), Cable type: Shielded, Automatic cross-over detection: Yes)
CANopen (Master)
CAN-CiA (ISO 11898-2:2002 Part 2), Connector: D-sub9 (pin)
Control
DIO:12點標準輸入(包含2點快速輸入) 6點標準輸出, 2點快速輸出 AIO:2ch類比輸入(13-bit)和2ch類比輸入(16-bit)熱電偶 2ch類比輸出(12-bit)

42-wire connection is available for RS-485. When a Device/PLC supports 2-wire connection, 4 wires (RXD+, TXD+, RXD-, and TXD-) can be short-circuited to be 2 wires (RXD+ and TXD+ = D1, RXD- and TXD- = D0). For details on the connection, refer to the connection manual.

結構規格
冷卻方法
自然氣流
結構規格
NEMA#250 TYPE 4X (室內，安裝於外殼內)
顯示器模組: IP65F (IEC60529)
後裝模組: IP20 (IEC60529)
重量
0.8 kg以下
Digital input specifications
Rated Current
5mA
Inrush Values [Voltage]
DC30V
Inrush Values [Current]
6.29 mA max.
Input impedance
4.9 kΩ
Input type
Source
輸入電壓
DC24V
Maximum Allowable Voltage
DC28.8V
Input limit values [ON Voltage]
15 Vdc or more (15 to 28.8 Vdc)
Input limit values [OFF Voltage]
5 Vdc以下(0 至 5 Vdc)
Input limit values [ON Current]
2.5 mA or more
Input limit values [OFF Current]
1.0 mA以下
Isolation [Method]
Photo coupler Isolation
Isolation [Between internal logic]
DC500V
Filter
0.5 ms x N (N is 0 to 63)
IEC61131-2 edition 3 type
Type 1
Cable type and length
Shielded: Maximum 100 m (328 ft)
Non-shielded: 50 m (164 ft)
Compatibility
Supports 2 wire and 3 wire sensors
Terminal blocks
Type: 3.5 mm (0.137 in.) pitch
Terminal blocks are removable.
Input paralleling
No
High speed counter input specifications
Rated Current [Voltage]
DC24V
Rated Current [Current]
7.83mA
Inrush Values [Voltage]
DC30V
Inrush Values [Current]
9.99mA
Input impedance
3.2kΩ
Input type
Source
輸入電壓
DC24V
Maximum Allowable Voltage
DC28.8V
Input limit values [ON Voltage]
15 Vdc or more
Input limit values [OFF Voltage]
5 Vdc以下
Input limit values [ON Current]
|5 mA or more
Input limit values [OFF Current]
1.5 mA以下
Isolation [Method]
Photo coupler Isolation
Isolation [Between internal logic]
DC500V
Filter
None, 4 μs, 40 μs
IEC61131-2 edition 3 type
Type 1
Compatibility
Supports 2 wire and 3 wire sensors
Cable [Type]
Shielded cable
Cable [Length]
Maximum 10 m (33 ft)
Terminal blocks
Type: 3.5 mm (0.137 in.) pitch
Terminal blocks are removable.
Maximum frequency
- 100 kHz is the maximum frequency for Single-phase
- 50 kHz is the maximum frequency for 2-phase
- Duty Rate: 45 to 55%
Phase Counting Mode
- Single phase
- 2 Phase x 2
- 2 Phase x 4
- 2 Phase x 2 Reverse
- 2 Phase x 4 Reverse
Response time [Marker]
1ms
Response time [Preload]
1ms
Response time [Prestrobe]
1ms
Response time [Synchronize output]
2ms
Input paralleling
Not equipped
Transistor output specifications
輸入電壓
DC24V
Rated Current
0.3 A/point, 1.8 A/common
Output range
DC19.2～28.8V
Output type
Source
Residual voltage
1.5 Vdc or less for I= 0.1A
Delay
Off to on (0.3 A load): 1.1ms
On to off (0.3 A load): 2ms
NOTE: The delay is not including the cable delay.
Isolation [Method]
Photo coupler Isolation
Isolation [Between internal logic]
DC500V
Minimum resistor load
80Ω at 24 Vdc
Cable length
无屏蔽：150m
Protection against short circuit
Not equipped
Terminal blocks
Type: 3.5 mm (0.137 in.) pitch
Terminal blocks are removable.
Note1
Note: Refer to LT4201TM/4301TM Hardware Manual about Protecting Outputs from Inductive Load Damage for additional information on this topic.
Note2
Caution: Q0 and Q1 circuits are push-pull circuits. The following is the operation of the push-pull circuit at the Sink Output and the Source Output.
Sink Output: +24(V) is output to terminal Q0, Q1 when the logic for Q0, Q1 is off
Source Output: 0(V) is output to terminal Q0, Q1 when the logic for Q0, Q1 is off

Standard Output terminals Q2 or later are common open collector outputs.
Do not connect Fast Output terminals Q0, Q1 and Standard Output terminals Q2 or later. It will short.
Note3
Type: 3.5 mm (0.137 in.) pitch
Terminal blocks are removable.
Pulse output / PWM output / High-speed counter (synchronize output) specifications
Output type
Source
輸入電壓
DC24V
Power supply input range
DC19.2～28.8V
Power supply reverse protection
○
Pulse Output/PWM output current
50 mA/point, 100 mA/common
Response time for original input
2ms
Isolation resistance [Between fast outputs and internal logic]
10 MΩ or more
Isolation resistance [Between power supply port and protective earth ground (PE) = 500 Vdc]
10 MΩ or more
Residual voltage [for I = 0, 1 A]
1.5 Vdc以下
Delay
Off to on (50 mA load): 1.1 ms
On to off (50 mA load): 1.1 ms
NOTE: The delay is not including the cable delay.
Minimum load impedance
80&Omega
Maximum Pulse output frequency
50KHz
Maximum PWM output frequency
65kHz
Accuracy Pulse Output/ PWM Output [10 to 100 Hz]
Accuracy: 0.1%
Duty: 0 to 100 %
Accuracy Pulse Output/ PWM Output [10 to 1000 Hz]
Accuracy: 1%
Duty: 1 to 99 %
Accuracy Pulse Output/ PWM Output [1.001 to 20kHz]
Accuracy: 5%
Duty: 5 to 95 %
Accuracy Pulse Output/ PWM Output [20.001 to 45kHz]
Accuracy: 10%
Duty: 10 to 90 %
Accuracy Pulse Output/ PWM Output [45.001 to 65 kHz]
Accuracy: 15%
Duty: 15 to 85 %
Duty rate range
1～99%
Cable [Type]
Shielded, including 24 Vdc power supply
Cable [Length]
Maximum 5 m (16 ft)
Terminal blocks
Type: 3.5 mm (0.137 in.) pitch
Terminal blocks are removable.
Note1
NOTE: When using the acceleration/deceleration pulse output, there is a 1% maximum error for the frequency.
Note2
Caution: Q0 and Q1 circuits are push-pull circuits. The following is the operation of the push-pull circuit at the Sink Output and the Source Output.
Sink Output: +24(V) is output to terminal Q0, Q1 when the logic for Q0, Q1 is off
Source Output: 0(V) is output to terminal Q0, Q1 when the logic for Q0, Q1 is off

Standard Output terminals Q2 or later are common open collector outputs.
Do not connect Fast Output terminals Q0, Q1 and Standard Output terminals Q2 or later. It will short.
Note3
Type: 3.5 mm (0.137 in.) pitch
Terminal blocks are removable.
Analog input specifications
Number of maximum input
2
Input type
Single-ended
Input range
01|[Voltage input] -10 to 10 Vdc / 0 to 10 Vdc
[Current input] 0 to 20 mA / 4 to 20 mA
Input impedance
[Voltage input] 1 MΩ or more
[Current input] 250 ± 0.11% Ω
Sample duration time
10 ms per channel + 1 scan time
Total input system transfer time
20 ms + 1 scan time
Input tolerance
01|[Maximum deviation] ± 2.5 % of the full scale
[Maximum deviation at 25 °C [77 °F] without electromagnetic disturbance] ± 1 % of the full scale
Digital resolution
13 bits
Temperature drift
± 0.06 % of the full scale
Common mode characteristics
80db
Cross talk
60db
Non-linearity
± 0.4 % of full scale
Input value of LSB
[Voltage input] 5 mV
[Current input] 10 µA
Maximum allowed overload (no damages)
[Voltage input] ± 30 Vdc (less than 5 minutes) / ± 15 Vdc (No damage)
[Current input] ± 30 mA dc
耐壓特性
Photo coupler between input and internal circuit
Cable [Type]
Shielded cable
Cable [Length]
Must be less than 3 m for IEC61131-2 conformance.
Maximum transmission distance is 10m.
Terminal blocks
Type: 3.5 mm (0.137 in.) pitch
Terminal blocks are removable.
Isolation (photocoupler) [External input]
Photo coupler Isolation
Isolation (Photocoupler)[Between channels]
Non-isolated
Temperature input (temperature probes) specifications
Input sensor type
Pt100 / Pt1000 / Ni100 / Ni1000
Input temperature range
Pt100/Pt1000：-200 to 600℃, Ni100/Ni1000：-50～200℃
Measuring current [Pt100/Ni100]
1.12 mA ± 3.5 %
Measuring current [Pt1000/Ni1000]
0.242 µA ± 3.5 %.
Input impedance
Typically 10 M&Omega
Sample duration time
10 ms + 1 cycle time
Wiring type
2-wire or 3-wire connection configured by software for all inputs
Conversion mode
Sigma delta type
Input filter
Low pass
解析度
0.1℃
Detection type
Open circuit (detection on each channel)
Input tolerance [Maximum deviation at 25°C (77°F) without electromagnetic disturbance]
± 5 °C [41 °F]*5
Input tolerance [Maximum deviation at 25 to 50°C (77 to 122°F)]
Pt type: ± 5.6 °C [42.08 °F]
Ni type: ± 5.2 °C [41.36 °F]
Temperature drift
30 ppm/°C
Digital resolution
16 bits
Rejection in differential mode (50/60 Hz)
Typically 60 dB
Common mode rejection (50/60 Hz)
Typically 80 dB
Isolation Method
Photo coupler Isolation
Permitted input signal
± 5 Vdc max.
Cable length [Pt100/Ni100]
20 Ω 以下
Cable length [Pt1000/Ni1000]
200 Ω 以下
Terminal blocks
Type: 3.5 mm (0.137 in.) pitch
Terminal blocks are removable.
Noise resistance - cable
Shielded cable is necessary.

5Excluding errors caused by the wiring.

Temperature input (thermocouple) specifications
Input sensor type
Thermocouple
Input type range
J（-200～760℃）、K（-240～1,370℃）、R（0～1,600℃）、B（200～1,800℃）、S（0～1,600℃）、T（-200～400℃）、E（-200～900℃）、N（-200～1,300℃）*6
Input impedance
Typically 10 MΩ
Sample duration time
10 ms + 1 cycle time
Conversion mode
Sigma delta type
Digital resolution
16 bits
Input filter
Low pass
Resolution temperature value
0.1 °C (0.18 °F)
Detection type
Open circuit (detection on each channel)
Input tolerance [Maximum deviation at 25°C (77°F) without electromagnetic disturbance]
0.2 % of the full scale, plus standard point of compensation precision at ±6 °C [42.8 °F] .
Input tolerance [Maximum deviation]
0.28 % of full scale range
Temperature drift
30 ppm/°C
Input tolerance - terminal temperature compensation
±5 °C [41 °F] after 10 min.
Cold junction compensation in the temperature range (0 to 50°C (122°F))
Internal cold junction error: ±6 °C [42.8 °F]
after operating 45 minutes.
Rejection in differential mode (50/60 Hz)
Typically 60 dB
Common mode rejection (50/60 Hz)
Typically 80 dB
Isolation Method
Photo coupler Isolation
Permitted input signal
±5 Vdc max.
Warm up time
45 minutes
Terminal blocks
Type: 3.5 mm (0.137 in.) pitch
Terminal blocks are removable.
Noise resistance - cable
Shielded cable is necessary.

6Temperature measurement on PCB at terminal block for cold junction compensation.

Analog output specifications
Maximum number of outputs
2
Output range
[Voltage Output] -10 to 10 Vdc / 0 to 10 Vdc
[Current Output] 0 to 20 mA / 4 to 20 mA
Load impedance
[Voltage Output] 2 kΩ or more
[Current Output] 300 Ω or more
Application load type
Resistive load
Setting time
10ms
Total input system transfer time
10 ms + 1 scan time
Output tolerance [Maximum deviation at 25°C (77°F) without electromagnetic disturbance]
±1 % of the full scale
Output tolerance [Maximum deviation]
± 2.5% of the full scale
Digital resolution
12 bits
Temperature drift
± 0.06 % of the full scale
Output ripple
± 50 mV
Cross talk
60db
Non-linearity
± 0.5% of full scale
Output value of LSB
[Voltage Output] 6 mV
[Current Output] 12 µΑ
耐壓特性
Photo coupler between input and internal circuit
Output protection
Short circuit protection: Yes
Open circuit protection: Yes
Output behavior if input power supply is less than the power failed threshold
Set to 0
Cable [Type]
Shielded cable
Cable [Length]
Must be less than 3 m for IEC61131-2 conformance.
Maximum transmission distance is 10m.
Terminal blocks
Type: 3.5 mm (0.137 in.) pitch
Terminal blocks are removable.
Isolation (photocoupler) [External input]
Photo-coupler isolation
Isolation (Photocoupler)[Between channels]
Non-isolated
Terminal blocks
A1 (Signal Name , Group)
V0+ (Fast Output)
A2 (Signal Name , Group)
Q1 (Fast Output)
A3 (Signal Name , Group)
V1+ (Standard Output)
A4 (Signal Name , Group)
Q3 (Standard Output)
A5 (Signal Name , Group)
Q5（標準出力）
A6 (Signal Name , Group)
Q7 (Standard Output)
B1 (Signal Name , Group)
V0- (Fast Output)
B2 (Signal Name , Group)
Q0 (Fast Output)
B3 (Signal Name , Group)
V1- (Standard Output)
B4 (Signal Name , Group)
Q2 (Standard Output)
B5 (Signal Name , Group)
Q4 (Standard Output)
B6 (Signal Name , Group)
Q6 (Standard Output)
C1 (Signal Name , Group)
I0 (Fast Input / Standard Input)
C2 (Signal Name , Group)
I1 (Fast Input / Standard Input)
C3 (Signal Name , Group)
I3 (Fast Input / Standard Input)
C4 (Signal Name , Group)
I5 (Standard Input)
C5 (Signal Name , Group)
I7 (Standard Input)
C6 (Signal Name , Group)
I9 (Standard Input)
C7 (Signal Name , Group)
I11 (Standard Input)
C8 (Signal Name , Group)
MS0+ (Temperature Input)
C9 (Signal Name , Group)
EX0+ (Temperature Input)
C10 (Signal Name , Group)
MS1+ (Temperature Input)
C11 (Signal Name , Group)
EX1+ (Temperature Input)
C12 (Signal Name , Group)
IV0 (Analog Input)
C13 (Signal Name , Group)
IV1 (Analog Input)
C14 (Signal Name , Group)
IA1 (Analog Input)
C15 (Signal Name , Group)
U/I0 (Analog Output)
D1 (Signal Name , Group)
IC0 (Fast Input / Standard Input)
D2 (Signal Name , Group)
I2 (Standard Input)
D3 (Signal Name , Group)
IC1 (Standard Input)
D4 (Signal Name , Group)
I4 (Standard Input)
D5 (Signal Name , Group)
I6 (Standard Input)
D6 (Signal Name , Group)
I8 (Standard Input)
D7 (Signal Name , Group)
I10 (Standard Input)
D8 (Signal Name , Group)
MS0- (Temperature Input)
D9 (Signal Name , Group)
EX0- (Temperature Input)
D10 (Signal Name , Group)
MS1- (Temperature Input)
D11 (Signal Name , Group)
EX1- (Temperature Input)
D12 (Signal Name , Group)
AIC (Analog Input)
D13 (Signal Name , Group)
IA0 (Analog Input)
D14 (Signal Name , Group)
AOC (Analog Output)
D15 (Signal Name , Group)
U/I1 (Analog Output)
產品尺寸

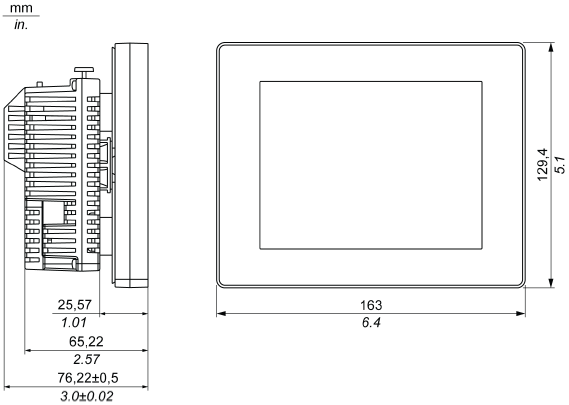

外部尺寸

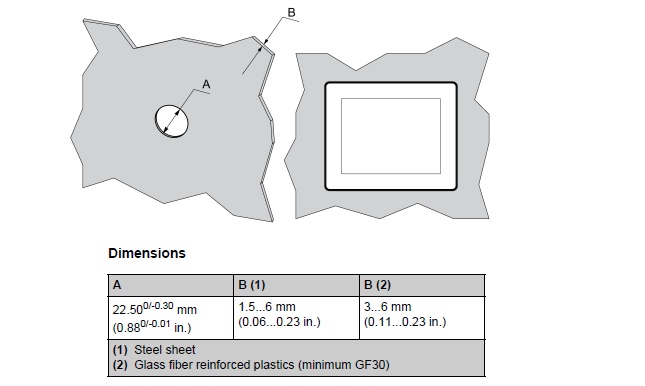

Panel cutout diagram



* Without the tee option, the display module supports a rotating torque of 2.5 N•m (22.12 lbin).
Page Top
