Overview:
This is a pie chart with a smart design like a smartphone.
There are each 2 of the decimal type and the hexadecimal type, the total will be 4 pieces.
Target Model:
GP4000, SP5000, SP5000X, ST6000, STM6000, PS5000, PS6000, PC/AT
Target Size:
Recommended for use of more than 640 by 400 pixels.
Details:

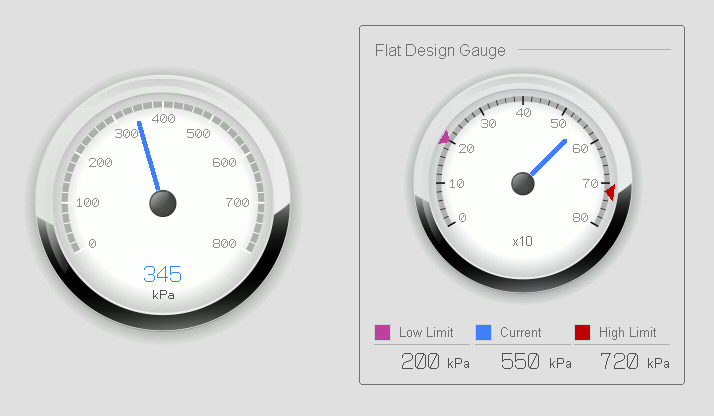

The 1st is the 3 parameter type of minimum, maximum, and current value.
When you place this gauge to your screen, the 3 symbol variables like below will be registered automatically.
- FDGauge_Current
- FDGauge_HighLimit
- FDGauge_LowLimit
You can display the PLC data to the gauge by registering your PLC address to these symbol variables.
The 2rd is the 1 parameter type of current value.
When you place this gauge to your screen, the 1 symbol variable like below will be registered automatically.
- FDGauge_Current2
You can display the PLC data to the gauge by registering your PLC address to these symbol variables.
Also, when right-clicking on the needle and selecting the animation setting, you can change the minimum input value and the maximum input value.

Remarks:
This file extension will be ".pkg", so after importing it with the package editor, we recommend to use registering it to the keyboard screen.


A manual with more details will be available soon..
