Overview:

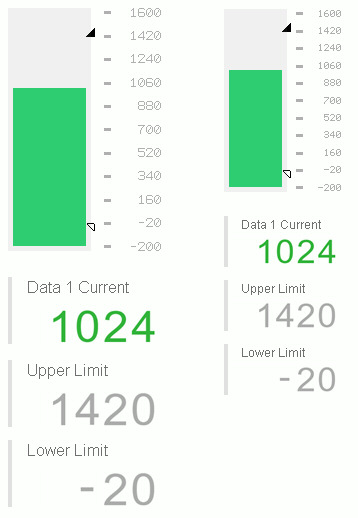

This is the combined graph with numerical display, a bar graph, and a scale.

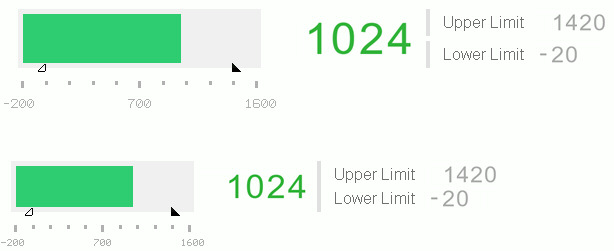

You can choose between vertical and horizontal orientations, and two sizes: "large" and "small."
You can adjust the minimum and maximum value ranges, and the scale display will automatically change accordingly.
You can also set High and Low alarm ranges; the bar graph will flash if the range is exceeded.
The bar graph color can be freely changed in the properties.
Target Model:
GP4000, SP5000, SP5000X, ST6000, STM6000, PS5000, PS6000, PC/AT
Target Size:
For the large bar graph, recommended for use with more than 800 by 600 pixels.
For the small bar graph, recommended for use with more than 640 by 480 pixels.
Details:
When you place this gauge on the screen, the following symbol variables and D-Script will be automatically registered in your project.
Please refer to the included simple manual for instructions on how to change the settings.
- (Symbol Variable) SD_BarGraph04
- (Symbol Variable) SD_BarGraph04_Limit
- (Symbol Variable) SD_BarGraph04_Setting
- (D-Script) SD_BarGraph04
Remarks:

• If you want to change the size or font of the numeric display used in this package, you will need to install Display - Additional Bitmap Font 01 first.
• The download data 'SmartDesign_BarGraph.zip' also includes other Smart Design BarGraphs. If you have already downloaded another Smart Design BarGraph, you do not need to download this part.
• This package file is not available in GP-Pro EX versions before 5.00.000.
