Set up via PC (Remote Setup)
- Connect this product with the computer over Ethernet. To
connect the computer to the same network as the product, change the
computer's IP address and subnet mask as follows.
IP address: 192.168.1.* (any address other than 192.168.1.100)
Subnet Mask: 255.255.255.0
NOTE: If you are using Windows 11, set the IP address as follows:(1) From the Start menu, select Settings > Network & Internet.
(2) Click Properties next to Ethernet.
(3) Click Edit next to IP Address Assignment, select Manual from the drop-down menu, and then click Save.
(4) Enable IPv4, then enter the IP address, subnet mask, etc.
- Power on the product.
- Open a web browser on the computer, and enter the following
URL.
https://192.168.1.100/machine_config

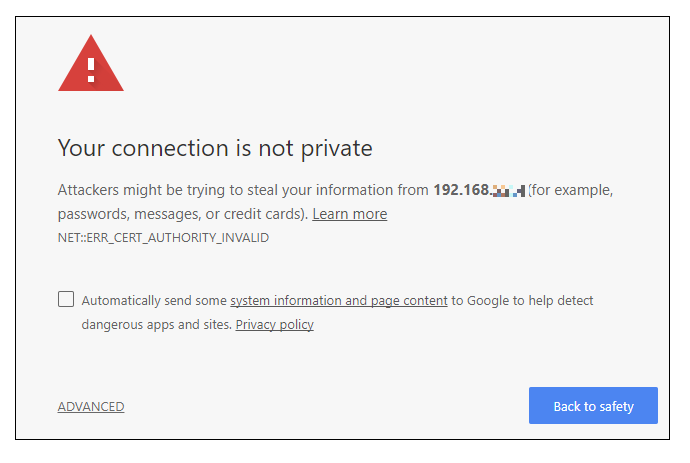

- When the connection is established, the HMI device sends
a certificate to use for the encryption. Since the certificate is
not signed from a Certificate Authority you will get a warning message.
Click on ADVANCED options and
choose to proceed.

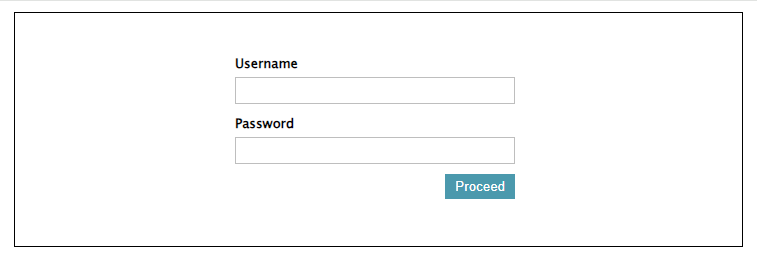

- The login screen will be displayed. Enter the following
initial password, and click Proceed.
Default username: admin
Default password: admin

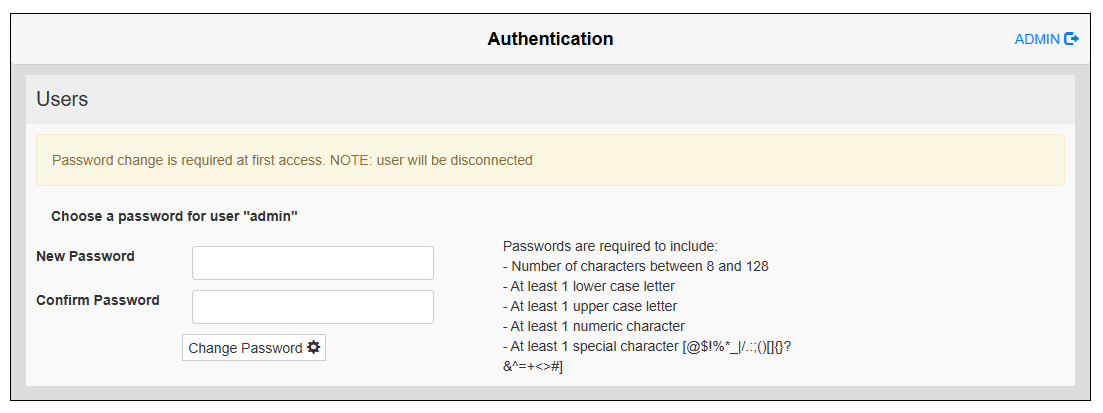

- The Authentication screen is displayed. Set the password for the administrator user
account.
NOTE:-
Passwords should be at least 8 characters long and include at least one uppercase letter, one lowercase letter, one number, and one special character.
-
You can change the password at any time. For details, refer to Change Password.
-
Please be careful not to forget your password. If you forget the administrator password, you will need to initialize the product. Initializing (device restore) the product will result in the loss of user data stored in the product.
-
- The login screen is displayed. Enter the username "admin" and the password set earlier, then
click Proceed.

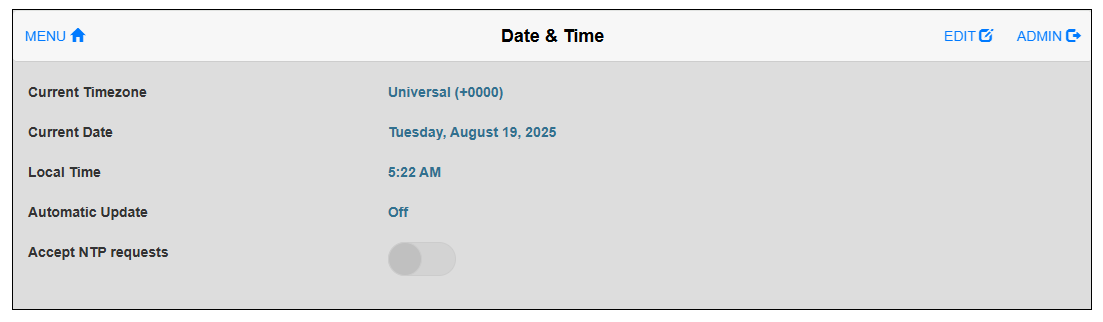

- The system settings menu is displayed. From the menu, select Date & Time. To enter editing mode,
in the top right-hand corner of the screen, click EDIT. Set the date and time for the product's
internal clock. At the top of the screen, click SAVE to save the changes.
- Change other settings as required.NOTE: If you want to change the IP address, we recommend to first complete all the other necessary system settings.
- From the menu, select EXIT. Return to the login screen.
- Transfer the project file from the screen editing software. For information on how to transfer, refer to the manual of the screen editing software.
