Properties (Operation Log Viewer)

Hide Show

[Function] - [Basic]
[Function] - [Detail]
[Shape] - [Text]
[Shape] - [Basic]
[Shape] - [Size/Location]

[Function] - [Basic]

Select the column that is the basis for the display order.

Select the display order.

-[ASC]: Normal order, such as a,b,c,,,, or 1,2,3,,,,.

-[DESC]: Opposite of [ASC].

[Function] - [Detail]

Click the Table Setting icon and select the items for the operation log viewer object.

Enter the text for the column title.

Note: When entering characters that do not correspond with the Language Text, select the appropriate language in the font setting of objects where the characters will display. When using Language Text, select the language in the Language Table editor.
For information on supported languages, refer to the following.
Supported Display Languages

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Columns[(column number)].Title'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Language Table Text]

Set the column width.
Enter an asterisk (*) for a column width that is the width of the entire Operation Log Viewer object minus the width of all the other columns.

Setting Value Range: 1 - 1000

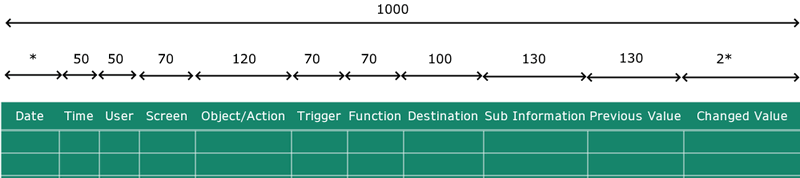

(Example)

* + 2* = 1000 - (50 + 50 + 70 + 120 + 70 + 70 + 100 + 130 + 130) = 210
* = 70
As a result, the column width of Date is 70, and the column width of Changed Value is 140.

Select the horizontal positioning of the column title: Left, Center, or Right.

Select the vertical positioning of the column title: Top, Middle, or Bottom.

Select the horizontal positioning of display data: Left, Center, or Right.

Select the vertical positioning of display data: Top, Middle, or Bottom.

For [Date] or [Time] columns, set the date or time format.

Select this check box to display column titles in the first row of the table.

Select this check box to use the sort function to display data in the specified order.
Repeatedly touch the column title to change between sort options: ascending→descending→before sort→ascending→and so on.

Note: When the [Display Filter] check box is selected, touch the column title to display a screen where you can specify sort and filter conditions. To sort, touch the [Sort Normal] button. Repeatedly touch the button to change between sort options: [Sort ASC] (ascending)→[Sort DESC] (descending)→[Sort Normal] (before sort).

Select this check box to refine the search to display only data that meets the specified conditions.
Touch the column title to display a screen where you can specify conditions.

Touch the column title to display a screen where you can specify sort and filter conditions.

Set the width of the entire table.
Set -1 to apply the total width of all the columns as the width of the table.
When the width of the table exceeds the width of the object, you can scroll to display areas that exceed the object width.
If the width of the table is less than the sum of the width of all the columns, columns that exceed the width of the table are not displayed.

Setting Value Range: -1 - 5000

Select the sound of the buzzer on touch.

-[None]: No Beep.

-[One shot]: Beeps once.

-[Continuous]: Beeps continuously.

-[Periodic]: Beeps at a regular interval.

Display a keypad in input mode. When you want to input using a method other than touching a keypad, such as inputting with a barcode reader, disable this setting so a keypad does not display on the screen in input mode.

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).UseKeypad'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

[Shape] - [Text]

Select the font language for when displaying an operation log viewer

Note:

When using the Language Table for displayed text content, the font type in the Language Table is used for the string. As a result, when using the Language Table, this property cannot be used to modify or verify the font type.
If you use characters from a language that is not supported by the selected font, then the characters will display either as white space characters or square symbols on the display unit. For information on supported languages, refer to the following.
Supported Display Languages

When specifying using a source property, the setting value for items are as follows.
[English_Gothic]: 0000 hex
[French_Gothic]: 0010 hex
[German_Gothic]: 0020 hex
[Italian_Gothic]: 0030 hex
[Portuguese_Gothic]: 0040 hex
[Spanish_Gothic]: 0050 hex
[Albanian_Gothic]: 0060 hex
[Croatian_Gothic]: 0070 hex
[Czech_Gothic]: 0080 hex
[Hungarian_Gothic]: 0090 hex
[Slovenian_Gothic]: 00D0 hex
[Polish_Gothic]: 00E0 hex
[Romanian_Gothic]: 00A0 hex
[Serbian_Gothic]: 00B0 hex
[Slovak_Gothic]: 00C0 hex
[Russian_Gothic]: 00F0 hex
[Greek_Gothic]: 0100 hex
[Turkish_Gothic]: 0110 hex
[Chinese_Simplified_GB18030_Gothic]: 0130 hex
[Chinese_Traditional_Gothic]: 0140 hex
[Korean_Gothic]: 0150 hex
[Japanese_Gothic]: 0160 hex
[Thai_Gothic]: 0170 hex
[Hindi_Gothic]: 0180 hex
[Hebrew_Gothic]: 0190 hex
[Arabic_Gothic]: 01A0 hex

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).FontType'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

Set the font color for titles displayed in the heading.

Select how to display colors.

-[Solid]: Display a solid color.

-[Blink]: Alternate between 2 colors.

When selecting [Solid]When selecting [Solid]

Set the display color.
To the right of the item name is the current display color. Click the display color to pop up a color palette. Select the color set up method, either [ID] or [RGB], which appears at the top of the color palette.
-[ID]: From the color palette, select the display color you want to use. The display color is managed using the ID. While ID numbers are the same between color sets, because the display color depends on the color set, if you change the color set the display color will also change.
-[RGB]: Set the display color in RGB format. Either select from the color palette, or enter the RGB value.

Note: For information about color sets, refer to the following.
Color Set

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).TitleFontColor.Color.Value' / '(object name).TitleFontColor.Color.ColorIndexEnabled'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the transparency level of the display color.

Setting Value Range: 0 - 100

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).TitleFontColor.Color.Transparency'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

When selecting [Blink]When selecting [Blink]

Select the blink speed for the display color.

Note: There are two color settings when setting [Type] to [Blink].

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).TitleFontColor.Color1.Value' / '(object name).TitleFontColor.Color1.ColorIndexEnabled'

'(object name).TitleFontColor.Color2.Value' / '(object name).TitleFontColor.Color2.ColorIndexEnabled'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the transparency level of the display color.

Setting Value Range: 0 - 100

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).TitleFontColor.Color1.Transparency' / '(object name).TitleFontColor.Color2.Transparency'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the font size for titles displayed in the heading.

Setting Value Range: 6 - 512

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).TitleFontSize'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the font color for the display data.

Select how to display colors.

-[Solid]: Display a solid color.

-[Blink]: Alternate between 2 colors.

When selecting [Solid]When selecting [Solid]

Note: For information about color sets, refer to the following.
Color Set

Set the transparency level of the display color.

Setting Value Range: 0 - 100

When selecting [Blink]When selecting [Blink]

Select the blink speed for the display color.

Note:

For information about color sets, refer to the following.
Color Set
There are two color settings when setting [Type] to [Blink].

Set the transparency level of the display color.

Setting Value Range: 0 - 100

Set the font size for display data.

Setting Value Range: 6 - 512

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).BodyFontSize'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

[Shape] - [Basic]

Set fill color.

Select how to display colors.

-[Solid]: Display a solid color.

-[Blink]: Alternate between 2 colors.

When selecting [Solid]When selecting [Solid]

Note: For information about color sets, refer to the following.
Color Set

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Fill.Color.Value' / '(object name).Fill.Color.ColorIndexEnabled'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the transparency level of the display color.

Setting Value Range: 0 - 100

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Fill.Color.Transparency'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

When selecting [Blink]When selecting [Blink]

Select the speed at which the two display colors switch.

Note: For information about color sets, refer to the following.
Color Set

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Fill.Color1.Value' / '(object name).Fill.Color1.ColorIndexEnabled'

'(object name).Fill.Color2.Value' / '(object name).Fill.Color2.ColorIndexEnabled'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the transparency level of the display color.

Setting Value Range: 0 - 100

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Fill.Color1.Transparency' / '(object name).Fill.Color2.Transparency'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set border color.

Select how to display colors.

-[None]: Display no color.

-[Solid]: Display a solid color.

-[Pattern]: Display two colors in a pattern.

When selecting [Solid]When selecting [Solid]

Note: For information about color sets, refer to the following.
Color Set

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Border.Color.Value' / '(object name).Border.Color.ColorIndexEnabled'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the transparency level of the display color.

Setting Value Range: 0 - 100

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Border.Color.Transparency'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

When selecting [Pattern]When selecting [Pattern]

Select the pattern for the display colors.

Note: For information about color sets, refer to the following.
Color Set

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Border.ForeColor.Value' / '(object name).Border.ForeColor.ColorIndexEnabled'

'(object name).Border.BackColor.Value' / '(object name).Border.BackColor.ColorIndexEnabled'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the transparency level of the display color.

Setting Value Range: 0 - 100

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Border.ForeColor.Transparency' / '(object name).Border.BackColor.Transparency'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the width of the border.

Setting Value Range: 1 - 9

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).BorderThickness'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the column grid color.

Select how to display colors.

-[None]: Display no color.

-[Solid]: Display a solid color.

-[Pattern]: Display two colors in a pattern.

When selecting [Solid]When selecting [Solid]

Note: For information about color sets, refer to the following.
Color Set

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).ColumnGridColor.Color.Value' / '(object name).ColumnGridColor.Color.ColorIndexEnabled'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the transparency level of the display color.

Setting Value Range: 0 - 100

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).ColumnGridColor.Color.Transparency'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

When selecting [Pattern]When selecting [Pattern]

Select the pattern for the display colors.

Note: For information about color sets, refer to the following.
Color Set

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).ColumnGridColor.ForeColor.Value' / '(object name).ColumnGridColor.ForeColor.ColorIndexEnabled'

'(object name).ColumnGridColor.BackColor.Value' / '(object name).ColumnGridColor.BackColor.ColorIndexEnabled'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the transparency level of the display color.

Setting Value Range: 0 - 100

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).ColumnGridColor.ForeColor.Transparency' / '(object name).ColumnGridColor.BackColor.Transparency'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the width of the border.

Setting Value Range: 1 - 9

Set the whole object’s color transparency.

Setting Value Range: 0 - 100

Note: When transparency is set for display colors, it results in higher transparency as it is applied to both colors.

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Transparency'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

[Shape] - [Size/Location]

Specify the coordinates of the object’s top-left border. The top-left part of the drawing screen is the start point for coordinates.

Setting Value Range: -5000 - 10000

Set when drawing objects away from Grid, Scroll Grid, Uniform Grid, Dock Panel, and Stack Panel coordinates.

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Location.Left' / '(object name).Location.Top'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the location of an object to place with row and column numbers.
The top-left cell of the drawing screen is the start row and column. 0 is the number for the start row and start column.

Setting Value Range: 0 - 100

Set when placing objects in a Grid or Scroll Grid.

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Location.Row' / '(object name).Location.Column'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the row span or column span when you want to place an object on multiple rows and/or columns.

Setting Value Range: 1 - 100

Set when placing objects in a Grid or Scroll Grid.

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Location.RowSpan' / '(object name).Location.ColumnSpan'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Select the direction where you want to dock the object.

(The value in brackets represents the value of the source property.)

-[Left] (0)

-[Top] (1)

-[Right] (2)

-[Bottom] (3)

Setting Value Range: 0 - 3

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Location.Dock'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the object width and height.
By default, values are set in brackets. If you change the value of other settings (such as object alignment, margins), the value in brackets is updated accordingly.

Setting Value Range: 1 - 5000

Note: When placing objects on a Grid, Scroll Grid, or Uniform Grid, in order for the object to line up with grid borders, use the width and height default values.

Data Binding Support:

To use as a Binding Source, refer to the following. Note that if the width and height remain as their default values, the value of the Binding Source is 0.
'(object name).Width' / '(object name).Height'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding

Set the margins on the object. [Margin] settings depend on [Object Alignment] and [Width]/[Height] settings. This setting works together with [Object Alignment].

Setting Value Range: -1000 - 1000

Note: The margin is not part of the object area. Touching its margin is not the same as touching the object.

Select the horizontal alignment option. When the object is on [Canvas], [Scroll Canvas], [Zoom Canvas], [View Box], this setting does not work.

-[Left]: The object are left-aligned with respect to the drawing target. The object position shifts right by the numerical value set in [Left] margin. [Right] margin is ignored.
-[Center]: The object are center-aligned with respect to the drawing target. The object position shifts right by the numerical value set in [Left] margin. [Right] margin is ignored.
-[Right]: The object are right-aligned with respect to the drawing target. The object position shifts left by the numerical value set in [Right] margin. [Left] margin is ignored.
-[Stretch]: The object width is smaller than the value set in [Width] by the numerical value set in [Left] and [Right] margin.

Note: When object [Width] is set as default value (value are set in brackets), object alignment is same as [Stretch] even when you select other option than [Stretch].

Select the vertical alignment option. When the object is on [Canvas], [Scroll Canvas], [Zoom Canvas], [View Box], this setting does not work.
-[Top]: The object are top-aligned with respect to the drawing target. The display position of the object shifts downward by the numerical value set in [Top] margin. [Bottom] margin is ignored.
-[Middle]: The object are middle-aligned with respect to the drawing target. The display position of the object shifts downward by the numerical value set in [Top] margin. [Bottom] margin is ignored.
-[Bottom]: The object are bottom-aligned with respect to the drawing target. The display position of the object shifts upward by the numerical value set in [Bottom] margin. [Top] margin is ignored.
-[Stretch]: The object height is smaller than the value set in [Height] by the numerical value set in [Top] and [Bottom] margin.

Note: When object [Height] is set as default value (value are set in brackets), object alignment is same as [Stretch] even when you select other option than [Stretch].

Select the visibility state of the object.
On the right-hand side of the field, click the box to select the source property for the visibility function.
(The value in brackets represents the value of the source property)

-[Visible] (0): Display the object.

-[Hidden] (1): Hide the object. The object area is maintained.

-[Collapsed] (2): Collapse the object. The object area is also collapsed. You can dynamically change the screen layout by collapsing objects on the Uniform Grid, Stack Panel, or Dock Panel.

Setting Value Range: 0 - 2

Note:

When using a BOOL type source property, you cannot use [Collapsed].
For information on Visibility animation and example operations, refer to the following.
Operation When Visibility Animation is Set Up
For setting examples using [Hidden], refer to the following.
Displaying Windows
For setting examples using [Collapsed], refer to the following.
Configuring a Screen with Multiple Sections
Splitting a Screen

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Visibility'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding
