Splitting a Screen

You can create a multi-screen display by splitting the screen area equally into multiple parts, such as 2, 4, 9, and so on.

After switching the Visibility Animation between showing the Content Display object and minimizing the Content Display object, the Uniform Grid automatically adjusts the size and position of the Content Display object between a single full screen and multiple split-screen displays

For information about the features used to enable the split-screen display, refer to the following.

Uniform Grid

What is Animation?

Operation When Visibility Animation is Set Up

Example Operation

Touch the switch on Content1 to collapse the other content, so only Content1 displays in its entirety. Touch the switch once more to display all the content again and return to the split screen display.



Setting Workflow

1. Add Variables
2. Set up Screen
3. Set up Contents Screen
4. Set up Parts
5. Draw Contents
6. Set up Scripts



Add Variables

Add variables to store the value of the Content Display object's [Visibility] property.

Project Explorer : [Variables] ➞ [All Variables]

Add the following variables.

[Name]	[Data Type]
Var1	[INT]
Var2	[INT]
Var3	[INT]
Var4	[INT]

Set up Screen

Project Explorer : [Screen Design] ➞ [Screens]

Add the following screen.

Screen properties :

[Screen ID]	[Screen Type]
2	[Uniform Grid]

Set up the following property.

Target01 property:

Tab	Sub Tab	Property		Value
[Function]	[Basic]	[Preferences]	[Initial Screen ID]	2

Set up Contents Screen

Project Explorer : [Screen Design] ➞ [Contents]

Add the following contents.

[Content ID]	[Screen Type]
1	[View Box]
2	[View Box]
3	[View Box]
4	[View Box]



Set up Parts

Project Explorer : [Screen Design] ➞ [Screens] ➞ [Screen2]

To define screen settings such as color, in Document view click the drawing area and define the settings in the Properties window.

UniformGrid properties :

Tab	Property		Values
[Basic]	[Fill]	[Value]	ID: (Any)
	[Row]		(Initial Value)
	[Column]		(Initial Value)



Drag and drop the following objects from the [Tool Chest] to the screen.

Content Display object (Name: ContentDisplay1) properties :

Tab	Sub Tab	Property	Values
[Function]	[Basic]	[Content ID]	1
[Shape]	[Size/Location]	[Visibility]	[Variables] [Name]: Var1

Content Display object (Name: ContentDisplay2) properties :

Tab	Sub Tab	Property	Values
[Function]	[Basic]	[Content ID]	2
[Shape]	[Size/Location]	[Visibility]	[Variables] [Name]: Var2

Content Display object (Name: ContentDisplay3) properties :

Tab	Sub Tab	Property	Values
[Function]	[Basic]	[Content ID]	3
[Shape]	[Size/Location]	[Visibility]	[Variables] [Name]: Var3

Content Display object (Name: ContentDisplay4) properties :

Tab	Sub Tab	Property	Values
[Function]	[Basic]	[Content ID]	4
[Shape]	[Size/Location]	[Visibility]	[Variables] [Name]: Var4



Draw Contents

Place a switch in each content to switch between a single full screen and multiple split-screen displays. Set a script to operate the switch.

Project Explorer : [Screen Design] ➞ [Contents] ➞ [Content1]

Drag and drop the following object from the [Tool Chest] to the Content1.

Switch object (Name: Switch1) properties :

Default Value

Project Explorer : [Screen Design] ➞ [Contents] ➞ [Content2]

Drag and drop the following object from the [Tool Chest] to the Content2.

Switch object (Name: Switch1) properties :

Default Value

Project Explorer : [Screen Design] ➞ [Contents] ➞ [Content3]

Drag and drop the following object from the [Tool Chest] to the Content3.

Switch object (Name: Switch1) properties :

Default Value

Project Explorer : [Screen Design] ➞ [Contents] ➞ [Content4]

Drag and drop the following object from the [Tool Chest] to the Content4.

Switch object (Name: Switch1) properties :

Default Value

Set up Script

Set up a script that switches the [Visibility] property of other Content Display objects between 0 (show) and 2 (minimize) when a switch is touched on one of the Content Display objects.

Project Explorer : [Screen Design] ➞ [Contents] ➞ [Content1]

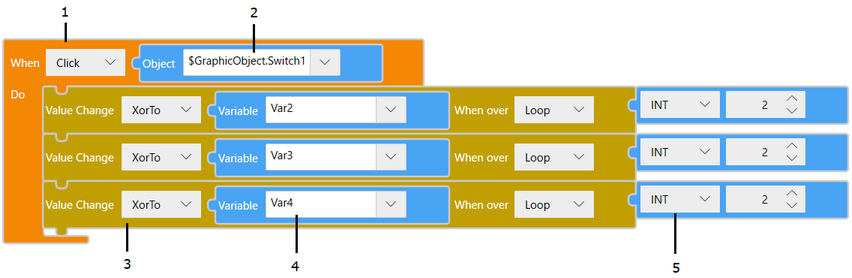

Set the following script on the object.

From the [Tool Chest] drag and drop the script to the Script editor.



Number	Block
1	[Trigger] ➞ [Touch] ➞ [Touch]
2	[Value] ➞ [Screen Object]
3	[Operation] ➞ [Value Change] ➞ [Value Change]
4	[Value] → [Variable]
5	[Value] → [Constant]

 Project Explorer : [Screen Design] ➞ [Contents] ➞ [Content2]

Set the following script on the object.

From the [Tool Chest] drag and drop the script to the Script editor.

Switch object (Name: Switch1) script:



Number	Block
1	[Trigger] ➞ [Touch] ➞ [Touch]
2	[Value] ➞ [Screen Object]
3	[Operation] ➞ [Value Change] ➞ [Value Change]
4	[Value] → [Variable]
5	[Value] → [Constant]



Project Explorer : [Screen Design] ➞ [Contents] ➞ [Content3]

Set the following script on the object.

From the [Tool Chest] drag and drop the script to the Script editor.

Switch object (Name: Switch1) script:

Number	Block
1	[Trigger] ➞ [Touch] ➞ [Touch]
2	[Value] ➞ [Screen Object]
3	[Operation] ➞ [Value Change] ➞ [Value Change]
4	[Value] → [Variable]
5	[Value] → [Constant]



Project Explorer : [Screen Design] ➞ [Contents] ➞ [Content4]

Set the following script on the object.

From the [Tool Chest] drag and drop the script to the Script editor.

Switch object (Name: Switch1) script:

Number	Block
1	[Trigger] ➞ [Touch] ➞ [Touch]
2	[Value] ➞ [Screen Object]
3	[Operation] ➞ [Value Change] ➞ [Value Change]
4	[Value] → [Variable]
5	[Value] → [Constant]
