BLUE Web Viewer Overview and Development Workflow

• About BLUE Web Viewer
• Web Viewer Operating Environment
• Development Flow

About BLUE Web Viewer

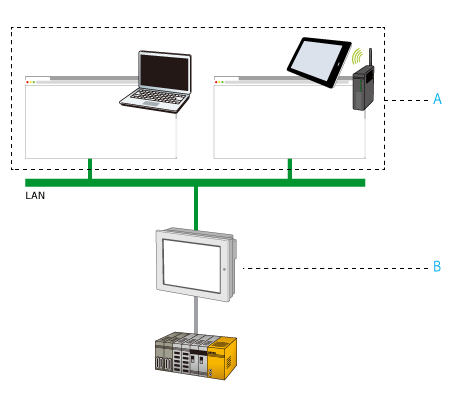

“BLUE Web Viewer” (hereafter referred to as “Web Viewer”) is a feature that runs on a display unit for sharing screen information with Web browsers on smart phones and tablets (hereafter referred to as “smart devices”) as well as on computers. Using Web Viewer, the display unit is a server, and the smart devices and computers connecting to the server are clients.

1. Clients
2. Server

Using a client, you can also perform operations on the server from a Web browser. Remote operation of the server from a client is possible when the network is set up so clients can connect to the server.

A single server can allow multiple, simultaneous client connections.

Example applications:

• Remote operation and monitoring of equipment installed with the display unit

• View the display unit screen on a large monitor

There are many applications where Web Viewer might be required, such as interacting with machinery that is located in a hard to reach location (such as in a clean room or at the other end of a large facility), or interacting with a display unit that is configured without a display module.

Even though the Web Viewer system can support multiple clients connecting to the server and viewing the panel interface, only one client can interact with the server (touch operation) at any time.

Web Viewer Operating Environment

Item		Description
Server	Display unit models	Supported Model/Feature
	Number of simultaneous client connections	3 for ST6000 Series and STM6000 Series 5 for other models
Client		Operating system Web browser Windows Windows Server Google Chrome 64 or later Microsoft Edge 80 or later iOS 13 or later iPadOS 13 or later Safari 13 or later Google Chrome 78 or later Android 4.4 or later Google Chrome 72 or later Note: Internet Explorer and Firefox are not supported.
Supported protocols		HTTP (version 1.1)
Supported languages (user interface)		English, French, German, Spanish, Italian, Portuguese, Simplified Chinese, Traditional Chinese, Korean, and Japanese

To build a secure network to prevent unauthorized access

To build a secure network to prevent unauthorized access, see the following.

Cybersecurity

We especially recommend doing the following.

• Build a communication environment using encrypted communication (for example, VPN).
• Install the display unit on a trusted secure network and protect the display unit with a firewall.

Pro-face Connect

You can use Pro-face Connect to build an encrypted communication environment.

When using Pro-face Connect with Web Viewer, in the Creating an Agent settings add the port setting.

Adding port setting

Development Flow

1. Configuring the Server
2. Configuring User Authentication Settings

Configuring the Server

The following describes the steps to configure the server.

1. In the Project Explorer window, go to [System Architecture] and click [Target01].

2. In the Properties window, click [Advanced] tab and click [Data Access] tab.

3. Go to [Web Function Settings] and select the [Enable Web Viewer] check box.
4. Go to [Web Viewer Settings] and select the [Security Settings] check box.
5. If necessary, change the port number in [Port Number].

Configuring User Authentication Settings

In the Web Viewer settings, enable [Security Setting] so that user authentication is required when a client accesses the server. Users and user groups set up in the project are used for user authentication.

To configure user authentication:

1. Configure users and user groups. Refer to the following.
   Steps to Design (Security)

2. In the Project Explorer window, go to [Security] and click the desired user group.
3. In the Properties window, set the [Web Viewer Access Right] property.


   [Web Viewer Access Right]

   Select the access right when logging in as a client. [None]: Login is not possible. [Monitor]: View-only access. [Monitor/Operation]: View and operation access.
