PFXFP6700WCD

PF_CP21213

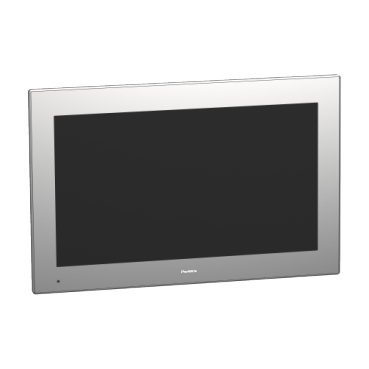

15w Industrial FPM, FP6000, FWXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter, DVI, USB Type B, 24V DC

Main
Product or component type
Touch panel screen
Range of product
FP6000
Integrated connection type
DVI-D video port
USB 2.0 connector USB type B
Complementary
Display size
15.6 inch
Aspect ratio
16:9
Display resolution
1366 x 768 pixels FWXGA
Display colour
16 million colours
Pixel resolution
1366 x 768
Inrush current
30 A
Device mounting
Panel mounting
Direct mounting VESA
Power consumption in W
20.0 W (maximum)
Display type
LED not replaceable
Colour TFT LCD
Touch panel
Multi-touch projected capactive technology (PCT) with optimized noise filter
Terminal type
Touchscreen display
Function available
Standard mode
Glove mode
Water detection mode
Supply voltage limits
18…31.2 V DC
Type of installation
Indoor installation
Cut-out dimensions
394 (+ 1/- 0) x 250 (+ 1/- 0) mm
Width
408 mm
Height
264 mm
Depth
Enclosure : 67.5 mm
Net weight
5.3 kg
Environment
Standards
CE
FCC part 15
UL 61010-2-201
CSA C22.2 No 61010-2-201
Ambient air temperature for operation
0…55 °C
Pollution degree
2
Vibration resistance
1 gn (f = 5…9 Hz) single amplitude conforming to IEC 61131-2
1 gn (f = 9…150 Hz) fixed amplitude conforming to IEC 61131-2
1 gn X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
Environmental characteristic
Dust resistant 0.1 mg/m3 (non-conductive)
Corrosive gas free
Product certifications
RCM
KC
UKCA
DNV (except 22" wide display)
EAC
ATEX zone 2
ATEX zone 22 dust
CULus Class 1 Division 2
IECEx zone 2 (DC model, front USB cover must be locked with screw)
IECEx zone 22 (DC model, front USB cover must be locked with screw)
Operating altitude
2000 m
Shock resistance
147 m/s² conforming to IEC 61131-2
147 m/s² 3 shocks in each direction X, Y and Z
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
43.0 cm
Package 1 Width
15.0 cm
Package 1 Length
50.0 cm
Package 1 Weight
6.1 kg
Contractual warranty
Warranty (in months)
18

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Total lifecycle Carbon footprint
1 204 kg CO2 eq.
Huella de carbono de la fase de fabricación [A1 a A3]
321 kg CO2 eq.
Huella de carbono de la fase de distribución [A4]
0.8 kg CO2 eq.
Huella de carbono de la fase de instalación [A5]
1 kg CO2 eq.
Huella de carbono de la fase de uso [B2, B3, B4, B6]
875 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Yes
Huella de carbono de la fase de fin de vida [C1 a C4]
6 kg CO2 eq.
Environmental Disclosure
Product Environmental Profile
Total lifecycle Carbon footprint
1204
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
EU RoHS Declaration
REACh Regulation
REACh Declaration
SCIP Number
3e485f57-089b-461f-87ef-eb75768c4245
EU RoHS Directive
Compliant By Exemption
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
End of Life Information
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Dimensions Drawings
Connections and Schema
