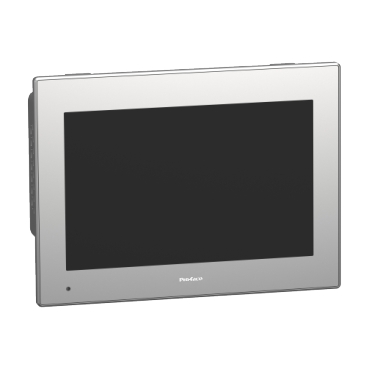

PFXFP6500WCD

10w Industrial FPM, FP6000, WXGA, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter, DVI, USB Type B, 24V DC

Main
Complementary
Environment
Packing Units
Dimensions Drawings
Connections and Schema
Offer Sustainability

Main

Product or component type

Touch panel screen

Range of product

FP6000

Integrated connection type

DVI-D video port
USB 2.0 connector USB type B

Complementary

Display size

10.1 inch

Aspect ratio

16:9

Display resolution

1280 x 800 pixels WXGA

Display colour

16 million colours

Pixel resolution

1280 x 800

Inrush current

30 A

Device mounting

Panel mounting
Direct mounting VESA

Power consumption in W

12.4 W (maximum)

Display type

LED not replaceable
Colour TFT LCD

Touch panel

Multi-touch projected capactive technology (PCT) with optimized noise filter

Terminal type

Touchscreen display

Function available

Standard mode
Glove mode
Water detection mode

Supply voltage limits

18…31.2 V DC

Type of installation

Indoor installation

Cut-out dimensions

255 (+ 1/- 0) x 185 (+ 1/- 0) mm

Width

268.5 mm

Height

198.5 mm

Depth

Enclosure : 67.5 mm

Net weight

3.2 kg

Environment

Standards

CE
FCC part 15
UL 61010-2-201
CSA C22.2 No 61010-2-201

Ambient air temperature for operation

0…55 °C

Pollution degree

Vibration resistance

1 gn (f = 5…9 Hz) single amplitude conforming to IEC 61131-2
1 gn (f = 9…150 Hz) fixed amplitude conforming to IEC 61131-2
1 gn X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2

Storage Relative Humidity

10…90 % without condensation

Environmental characteristic

Dust resistant 0.1 mg/m3 (non-conductive)
Corrosive gas free

Product certifications

RCM
KC
UKCA
DNV (except 22" wide display)
EAC
ATEX zone 2
ATEX zone 22 dust
CULus Class 1 Division 2
IECEx zone 2 (DC model, front USB cover must be locked with screw)
IECEx zone 22 (DC model, front USB cover must be locked with screw)

Operating altitude

2000 m

Shock resistance

147 m/s² conforming to IEC 61131-2
147 m/s² 3 shocks in each direction X, Y and Z

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Height

35.0 cm

Package 1 Width

15.0 cm

Package 1 Length

37.0 cm

Package 1 Weight

3.8 kg

Offer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained

SCIP Number

3e485f57-089b-461f-87ef-eb75768c4245

Packaging without single use plastic

Packaging made with recycled cardboard

Yes

REACh Regulation

REACh Declaration

EU RoHS Directive

EU RoHS Declaration

Mercury free

Yes

RoHS exemption information

Yes

Environmental Disclosure

Product Environmental Profile

Circularity Profile

End of Life Information

WEEE

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Take-back

Global warming ; Total life cycle

741 kg CO2 eq.

Carbon footprint (kg.eq.CO2 per CR, Total Life cycle)

741
