PFXDM6800WC

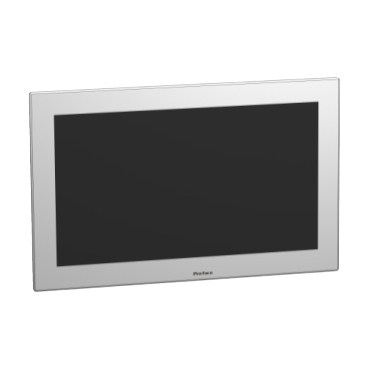

19w Display module, PS6000, Full HD, 16M colors, PCAP Multi Touch (2 points) with optimized noise filter

Main
Complementary
Environment
Packing Units
Dimensions Drawings
Mounting and Clearance
Offer Sustainability

Main

Product or component type

Touch panel screen

Range of product

PS6000

Terminal type

Touchscreen display

Inrush current

30 A

Power consumption in W

85 W (typical) with advanced box
150 W (maximum) with advanced box
64 W (typical) with standard box
82 W (maximum) with standard box

Complementary

Device mounting

Panel mounting
Direct mounting VESA

Function available

Standard mode
Glove mode
Water detection mode

Pixel resolution

1920 x 1080

Display resolution

1920 x 1080 pixels full HD

Display size

18.5 inch

Aspect ratio

16:9

Display type

LED not replaceable
Colour TFT LCD

Display colour

16 million colours

Backlight lifespan

50000 hours at 25 °C

Touch panel

Multi-touch projected capactive technology (PCT) with optimized noise filter

Type of installation

Indoor installation

Type of cooling

Natural

Cut-out dimensions

449.5 (+ 1/- 0) x 279.5 (+ 1/- 0) mm

Width

463.6 mm

Height

293.6 mm

Depth

Enclosure : 32 mm

Product weight

4.9 kg

Environment

Product certifications

RCM
KC
EAC
UKCA
DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot)
ATEX zone 2 (DC model, front USB cover must be locked with screw)
ATEX zone 22 dust (DC model, front USB cover must be locked with screw)
CULus Class 1 Division 2 (without DIO option)
IECEx zone 2 (DC model, front USB cover must be locked with screw)
IECEx zone 22 (DC model, front USB cover must be locked with screw)

Standards

CE
FCC part 15
UL 61010-2-201
CSA C22.2 No 61010-2-201

IP degree of protection

IP66f
IP67f
Type 1
Type 4X
Type 12
Type 13

Ambient air temperature for operation

0…50 °C

Ambient air temperature for storage

-20…60 °C

Relative humidity

10…90 % without condensation

Pollution degree

Storage Relative Humidity

10…90 % without condensation

Operating altitude

2000 m

Vibration resistance

1 gn (f = 5…9 Hz) single amplitude conforming to IEC 61131-2
1 gn (f = 9…150 Hz) fixed amplitude conforming to IEC 61131-2
1 gn X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2

Shock resistance

147 m/s² conforming to IEC 61131-2
147 m/s² 3 shocks in each direction X, Y and Z

Electromagnetic compatibility

Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3
Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 level 3
Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4

Environmental characteristic

Dust resistant 0.1 mg/m3 (non-conductive)
Corrosive gas free

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Height

46.0 cm

Package 1 Width

15.0 cm

Package 1 Length

55.0 cm

Package 1 Weight

5.9 kg

Unit Type of Package 2

P12

Number of Units in Package 2

Package 2 Height

150.0 cm

Package 2 Width

80.0 cm

Package 2 Length

120.0 cm

Package 2 Weight

139.8 kg
