PFXST6700WADE

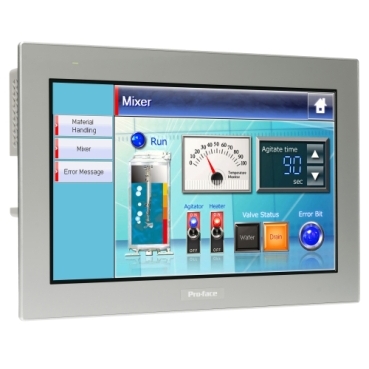

PFXST6700WADE_w_screen.eps

15"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC, GP-ProEX model

Main
Product or component type
Touch panel screen
Range of product
Pro-face ST6000
Processor name
ARM Cortex-A8
Software package
GP-Pro EX
Complementary
Display size
15 inch
Display type
Colour TFT LCD
Display colour
16 million colours
Display resolution
1366 x 768 pixels FWXGA
Touch panel
Single touch analogue resistive
Backlight lifespan
50000 hours with white
Brightness
16 levels via touch panel
Input voltage limits
19.2...28.8 V DC
Maximum cycle time
10 ms
Rated short-duration power frequency withstand voltage
1000 V AC during 1 min
Memory description
User data memory 64 MB
Backup memory 320 kB
Type of cooling
AN (air natural)
Integrated connection type
COM1 serial link 1 SUB-D 9-pin female, interface: RS232C/RS422/RS485, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 2400...115200 bps
COM2 serial link 1 SUB-D 9-pin male, interface: RS422/RS485, transmission rate: 187.5 kbps compatible with Siemens MPI
USB 2.0 type A
USB 2.0 type micro B
Ethernet female RJ45 10BASE-T/100BASE-TX
[Us] rated supply voltage
24 V DC
Inrush current
30 A
Maximum power consumption in W
18.5 W
15 W when power is not supplied to external devices
5.4 W when backlight is OFF
Data format
8 bits, no parity, 1 or 2 stop even or odd
Electrical connection
Cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Fixing mode
By 6 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201
By 6 screws conforming to IEC 61131-2
By 6 screws conforming to IEC 61000-6-2
Enclosure material
PC
Front material
Aluminium
Cut-out dimensions
394 x 250 mm
Width
412 mm
Height
268 mm
Depth
50 mm
Net weight
2.7 kg
Environment
Product certifications
CE
EAC
UL/cUL listed
IC
RCM
UKCA
NEMA degree of protection
NEMA 4X front panel (indoor use)
NEMA Type 1
NEMA 13 front panel (in enclosure)
Standards
IEC 61000-6-4
IEC 61000-6-2
IEC 61131-2
UL 61010-2-201
CSA C22.2 No 61010-2-201
KN 11
KN 61000-6-2
Directives
2014/30/EU - electromagnetic compatibility
2014/35/EU - low voltage directive
IP degree of protection
IP20 (rear panel) conforming to IEC 61131-2
IP65f (front panel) conforming to IEC 61131-2
Ambient air temperature for operation
0…50 °C
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non-condensing
Storage Relative Humidity
10…90 % non-condensing
Operating altitude
2000 m
Pollution degree
2
Environmental characteristic
Corrosive gas free
Vibration resistance
+/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 61131-2
9.8 m/s² (f = 9…150 Hz)
Shock resistance
147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming to IEC 61131-2
Insulation resistance
>= 10 MOhm
Electromagnetic compatibility
Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4
Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
12.700 cm
Package 1 Width
36.000 cm
Package 1 Length
52.500 cm
Package 1 Weight
3.362 kg
Unit Type of Package 2
S04
Number of Units in Package 2
2
Package 2 Height
30.000 cm
Package 2 Width
40.000 cm
Package 2 Length
60.000 cm
Package 2 Weight
7.540 kg

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Total lifecycle Carbon footprint
1 181 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
252.9538771916288
Carbon footprint of the manufacturing phase [A1 to A3]
253 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
4.6820012822016475
Carbon footprint of the distribution phase [A4]
5 kg CO2 eq.
Carbon footprint of the installation phase [A5]
0.6631994529809971
Carbon footprint of the installation phase [A5]
0.7 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
918.5339892543212
Carbon footprint of the use phase [B2, B3, B4, B6]
919 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Yes
Carbon footprint of the end-of-life phase [C1 to C4]
4.572603147670446
Carbon footprint of the end-of-life phase [C1 to C4]
5 kg CO2 eq.
Environmental Disclosure
Product Environmental Profile
Total lifecycle Carbon footprint
1181
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
EU RoHS Declaration
REACh Regulation
REACh Declaration
SCIP Number
20694bec-44d9-42c3-8fdd-3861ce15e3ab
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
End of Life Information
Removable battery
User replaceable
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Dimensions Drawings
Mounting and Clearance
