PFXSP5B90

PFXSP5B90

ExtremeBox, Modular, 2COM, 2ETH 1Gbps, USB A & mini-B, 2xSD, I/F expandable, Sound, AUX, 12VDC, Outdoor use

Main
Product or component type
Base unit
Range of product
Pro-face SP5000
Software package
GP-Pro EX
BLUE
Processor name
ARM Cortex-A8
Complementary
Memory description
Device memory 1 GB
Type of cooling
AN (air natural)

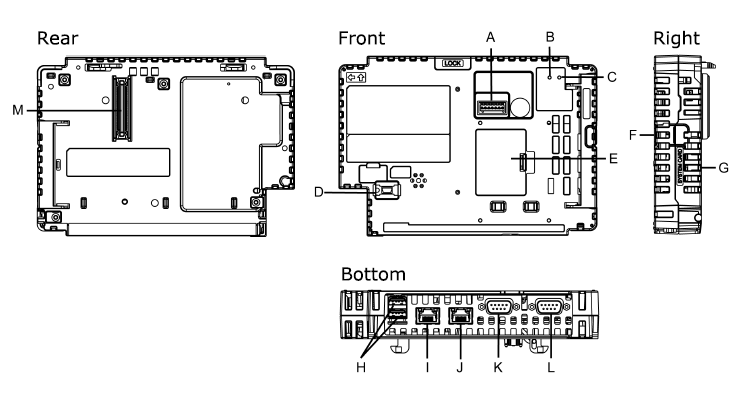

Integrated connection type
COM1 serial link 1 SUB-D 9-pin male, interface: RS232C, transmission rate: 2400...115200 bps
Maximum power consumption in W
20 W
Power consumption in W
20 W

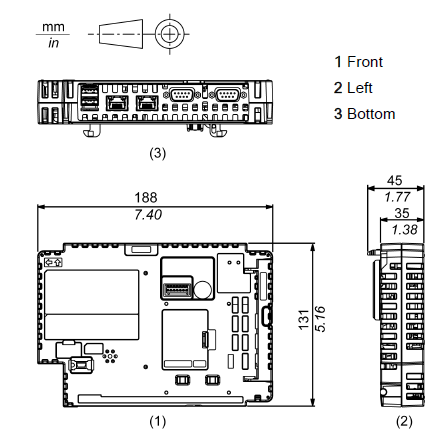

Width
188 mm
Height
131 mm
Depth
35 mm
Net weight
0.9 kg
Environment
Product certifications
UL
cUL
CE
UKCA
KC
RCM
EAC
ATEX
IECEx
Standards
UL 61010-2-201
CSA C22.2 No 61010-2-201
ANSI/ISA 12.12.01
CSA C22.2 No 213 Class I Division 2
Directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
2011/65/EU - RoHS
2015/863/EU - RoHS directive
1907/2006/EC - REACH directive
2014/34/EU - ATEX directive
2014/53/EU - radio equipment directive
Ambient air temperature for operation
0…60 °C
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non-condensing
Storage Relative Humidity
10…90 % non-condensing
Operating altitude
2000 m
Pollution degree
2
Environmental characteristic
Corrosive gas free
Electromagnetic compatibility
Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
14.000 cm
Package 1 Width
21.500 cm
Package 1 Length
26.000 cm
Package 1 Weight
1.199 kg
Unit Type of Package 2
S04
Number of Units in Package 2
4
Package 2 Height
30.000 cm
Package 2 Width
40.000 cm
Package 2 Length
60.000 cm
Package 2 Weight
5.438 kg

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Recyclability potential, in %
62
Total lifecycle Carbon footprint
1 073 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
251.7579822144713
Carbon footprint of the manufacturing phase [A1 to A3]
252 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
1.567897666162039
Carbon footprint of the distribution phase [A4]
2 kg CO2 eq.
Carbon footprint of the installation phase [A5]
0.007036847854168703
Carbon footprint of the installation phase [A5]
0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
808.3174516992377
Carbon footprint of the use phase [B2, B3, B4, B6]
808 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Yes
Carbon footprint of the end-of-life phase [C1 to C4]
11.06436884845495
Carbon footprint of the end-of-life phase [C1 to C4]
11 kg CO2 eq.
Environmental Disclosure
Product Environmental Profile
Total lifecycle Carbon footprint
1073
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
EU RoHS Declaration
REACh Regulation
REACh Declaration
SCIP Number
A905f611-0f0f-4059-8d6d-22e0091b08d1
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
End of Life Information
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
