PFXSP5790WAD

PFXSP5790WAD

15W Extreme touch panel display, FWXGA, Analog-Single, Modular, 12-24VDC, Outdoor use

Main
Product or component type
Touch panel screen
Range of product
Pro-face SP5000
Software package
GP-Pro EX
BLUE
Processor name
ARM Cortex-A9
Complementary
Display size
15.6 inch
Display type
Colour TFT LCD
Display colour
262144 colours
Display resolution
1366 x 768 pixels FWXGA
Touch panel
Single touch analogue resistive
Backlight lifespan
50000 hours with white
Brightness
1000 cd/m2
Inrush current
30 A
Input voltage limits
10.8…28.8 V DC
Rated short-duration power frequency withstand voltage
1000 V AC during 1 min
Type of cooling
AN (air natural)
Power consumption in W
48 W
34 W
12.5 W (backlight off (standby mode))
19 W (backlight dimmed (brightness: 20%))
Electrical connection
Cable 2 mm², AWG 14, max resistance 100 Ohm for functional grounding
Fixing mode
By 8 screw clamps, mounting on 1.6...5 mm thick panel

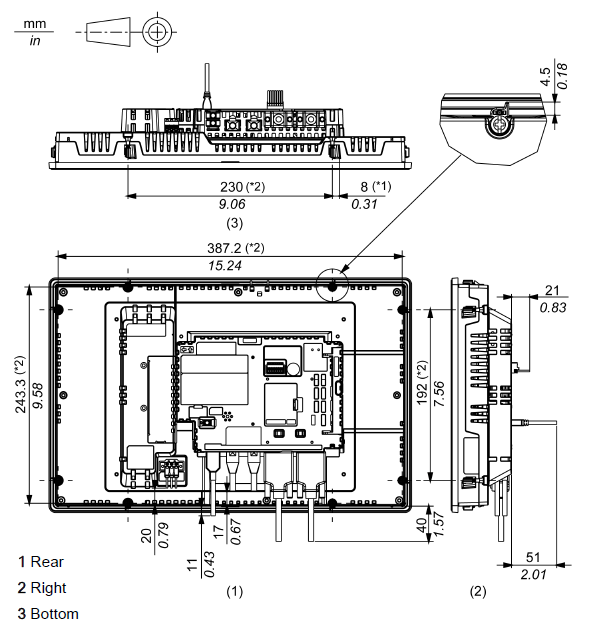

Cut-out dimensions
394 x 250 mm panel cut dimension

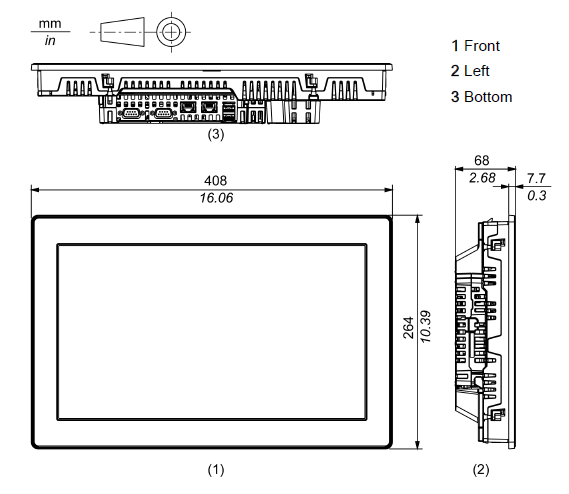

Width
408 mm
Height
264 mm
Depth
68 mm
Net weight
4.8 kg
Environment
Product certifications
UL
cUL
CE
UKCA
KC
RCM
EAC
ATEX
IECEx
Standards
UL 61010-2-201
CSA C22.2 No 61010-2-201
ANSI/ISA 12.12.01
CSA C22.2 No 213 Class I Division 2
Directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2012/19/EU - WEEE directive
2011/65/EU - RoHS
2015/863/EU - RoHS directive
1907/2006/EC - REACH directive
2014/34/EU - ATEX directive
2014/53/EU - radio equipment directive
IP degree of protection
IP66f
Ambient air temperature for operation
-20…60 °C
Ambient air temperature for storage
-20…60 °C
Relative humidity
10…90 % non-condensing
Storage Relative Humidity
10…90 % non-condensing
Operating altitude
2000 m
Pollution degree
2
Environmental characteristic
Corrosive gas free
Vibration resistance
3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 60068-2-6
Shock resistance
147 m/s² (X, Y, Z directions for 3 times) conforming to IEC 60068-2-27
Insulation resistance
>= 10 MOhm
Electromagnetic compatibility
Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
45.000 cm
Package 1 Width
18.500 cm
Package 1 Length
53.500 cm
Package 1 Weight
6.623 kg
Unit Type of Package 2
P06
Number of Units in Package 2
4
Package 2 Height
75.000 cm
Package 2 Width
60.000 cm
Package 2 Length
80.000 cm
Package 2 Weight
39.492 kg

Offer SustainabilityOffer Sustainability

Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing “Use Better, Use Longer, Use Again” campaign to extend product lifetimes and recyclability.

Environmental Data Explained
Recyclability potential, in %
34
Total lifecycle Carbon footprint
703 kg CO2 eq.
Carbon footprint of the manufacturing phase [A1 to A3]
11.768941356227366
Carbon footprint of the manufacturing phase [A1 to A3]
12 kg CO2 eq.
Carbon footprint of the distribution phase [A4]
1.1120459372964093
Carbon footprint of the distribution phase [A4]
1 kg CO2 eq.
Carbon footprint of the installation phase [A5]
0.003937470161174623
Carbon footprint of the installation phase [A5]
0 kg CO2 eq.
Carbon footprint of the use phase [B2, B3, B4, B6]
687.0698339443519
Carbon footprint of the use phase [B2, B3, B4, B6]
687 kg CO2 eq.
Mercury free
Yes
Sustainable packaging
No
RoHS exemption information
Yes
Carbon footprint of the end-of-life phase [C1 to C4]
3.349356454039912
Carbon footprint of the end-of-life phase [C1 to C4]
3 kg CO2 eq.
Environmental Disclosure
Product Environmental Profile
Total lifecycle Carbon footprint
703
F-gas free
Only air and vacuum used for insulation / breaking, no F-gas including SF6
Packaging made with recycled cardboard
Yes
Packaging without single use plastic
No
EU RoHS Directive
EU RoHS Declaration
REACh Regulation
REACh Declaration
SCIP Number
Bec78d47-e62d-44d7-8e6f-c4f5bb86ee60
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen-free status
Product contains halogen above thresholds
PVC free
No
Silicone-free
No
End of life manual availability
End of Life Information
Take-back
No
WEEE Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
