Wired Adapter Product Overview
The Wired Adapter is a GPH6000 Series wired type conversion adapter. Use a dedicated cable to connect the adapter to the handheld display.

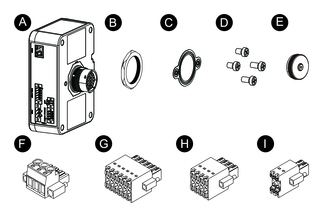

Packaging Contents
Verify all items listed here are present in your package.
Please contact customer support immediately if you find anything damaged or missing.
 WARNING |
|---|
|
UNINTENDED EQUIPMENT OPERATION
Do not use damaged products or accessories.
Failure to follow these instructions can result in death, serious injury, or equipment
damage.
|
-
Wired adapter (PFXZHADPCOM) x 1
-
Nut (attached to adapter) x 1
-
Installation gasket x 1
-
Installation screw (M4)*1
length: 6 mm [0.24 in] x 2
length: 8 mm [0.31 in] x 2 -
Connector cover x 1
-
DC power connector x 1
-
Serial interface connector x 1
-
Emergency stop switch/Enabling switch output connector x 1
-
Key switch output connector x 1
-
Instruction sheet x 1
*1 The length and number of screws that you should use will vary depending on the thickness of the panel. For details, refer to the Panel Cutout Dimensions.
Parts Identification
-
Ethernet interface
-
Serial interface (COM)
-
Power supply
-
Status LED*1
-
Nut*2
-
Dedicated cable connector
-
Key switch output interface
-
Emergency stop switch/Enabling switch output interface
*1 The light is green while power is supplied.
*2 Decide whether to use the nuts, dependent on the panel thickness and the number of screws installed. For details, refer to Panel Cutout Dimensions.
