This section describes how to change the project's display unit settings. You can change the display unit model and its screen orientation.
Setup Procedure
Please refer to the Settings Guide for details.
4.4.1 System Settings [Display] Settings Guide
Change a SP-5500TP VGA+SP-5B10 project to SP-5600TP SVGA+SP-5B10.
From the [Project (F)] menu, select [System Settings (C)], and in the window click [Display].

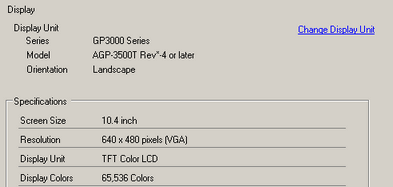

In the workspace, click [Change Display Unit].

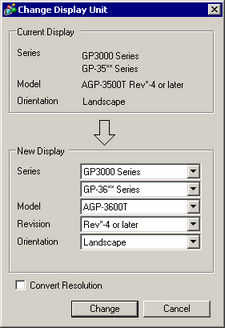

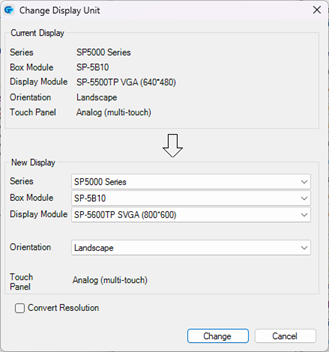

Select the display unit model and orientation, then click [Change].
If the project is set with a password, on changing the model you need to enter the Super User password. 3.8.2.6 Project Information - Password

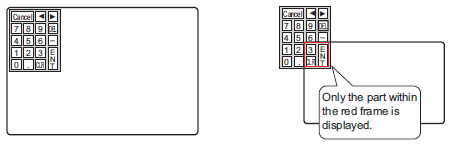

Even if the size of the display screen area changes on changing the display unit model, parts drawn on the screen appear in the same size and location as before the model change. To adjust the part size and the position relative to the resolution of the display unit model, select the [Convert Resolution] check box.

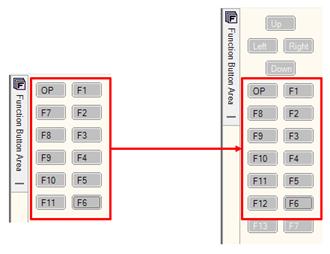

When you change the display unit model between the following models, you can assign the functions of the function keys set for the current model to the keys in the same positions. To perform these assignments, select the [Adjust Function Key Position] check box.
PFXGPH6400WA*
GP4000H Series
GP3000H Series
