31.8 Controlling External I/O in STC6000 Series and TM3 Module

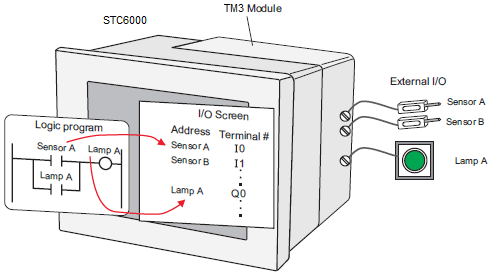

When you install a TM3 module in the STC6000 Series, in addition to standard inputs and outputs, you can run analog I/O and temperature inputs (thermocouple and Pt100). In the project, from [I/O Driver] select [TM3 Driver].

Feature	Type	Description	Browse to
Standard Input	TM3DI8	DIO Module: 8-input 24 Vdc sink/source	31.8.2.1 External Driver - DIO Input Module
	TM3DI8A	DIO module: 8-Input 120 Vac
	TM3DI16	DIO Module: 16-input 24 Vdc sink/source
	TM3DI16K	DIO Module: 16-input 24 Vdc sink/source HE10 (MIL) connector
	TM3DI32K	DIO Module: 32-input 24 Vdc sink/source HE10 (MIL) connector
Standard Output	TM3DQ8R	DIO module: 8-output relay	31.8.2.2 External Driver - DIO Output Module
	TM3DQ16R	DIO module: 16-output relay
	TM3DQ8U	DIO module: 8-output transistor (sink)
	TM3DQ8T	DIO module: 8-output transistor (source)
	TM3DQ16U	DIO module: 16-output transistor (sink)
	TM3DQ16T	DIO module: 16-output transistor (source)
	TM3DQ16UK	DIO module: 16-output transistor (sink) HE10 (MIL) connector
	TM3DQ16TK	DIO module: 16-output transistor (source) HE10 (MIL) connector
	TM3DQ32UK	DIO module: 32-output transistor (sink) HE10 (MIL) connector
	TM3DQ32TK	DIO module: 32-output transistor (source) HE10 (MIL) connector
Standard Input/Output	TM3DM8R	DIO Module: 4-input 24 Vdc sink/source DIO module: 4-output relay	31.8.2.3 External Driver - DIO Input/Output Module
Standard Input/Output	TM3DM24R	DIO Module: 16-input 24 Vdc sink/source DIO module: 8-output relay	31.8.2.3 External Driver - DIO Input/Output Module
Analog Input	TM3AI2H	Analog Module: 2-input Voltage (0 - 10V, -10 - 10V) / Current (0 - 20mA, 4 - 20mA)	31.8.2.4 External Driver - Analog Input Module (2 points)
	TM3AI4	Analog Module: 4-input Voltage (0 - 10V, -10 - 10V) / Current (0 - 20mA, 4 - 20mA)	31.8.2.5 External Driver - Analog Input Module (4 points)
	TM3AI8	Analog Module: 8-input Voltage (0 - 10V, -10 - 10V) / Current (0 - 20mA, 4 - 20mA)	31.8.2.6 External Driver - Analog Input Module (8 points)
	TM3TI4	Analog Module: 4-input Voltage (0 - 10V, -10 - 10V) / Current (0 - 20mA, 4 - 20mA) Thermocouple (K, J, R, S, B, E, T, N, C type) PT100/PT1000, NI100/NI1000	31.8.2.7 External Driver - Analog Input Module Temperature Input Module (4 points)
	TM3TI4D	Analog Module: 4-input Thermocouple (K, J, R, S, B, E, T, N, C type)	31.8.2.8 External Driver - Temperature Input Module (4 points)

Analog Output Module	TM3AQ2	Analog Module: 2-output Voltage (0 - 10V, -10 - 10V) / Current (0 - 20mA, 4 - 20mA)	31.8.2.10 External Driver - Analog Output Module (2 points)
Analog Output Module	TM3AQ4	Analog Module: 4-output Voltage (0 - 10V, -10 - 10V) / Current (0 - 20mA, 4 - 20mA)	31.8.2.11 External Driver - Analog Output Module (4 points)
Analog Input/Output	TM3TM3	Analog Module: 2-input Voltage (0 - 10V, -10 - 10V) / Current (0 - 20mA, 4 - 20mA) Thermocouple (K, J, R, S, B, E, T, N, C type) PT100/PT1000, NI100/NI1000 Analog Module: 1-output Voltage (0 - 10V, -10 - 10V) / Current (0 - 20mA, 4 - 20mA)	31.8.2.12 External Driver - Analog Input/Output Module (3 points)
Analog Input/Output	TM3AM6	Analog Module: 4-input Voltage (0 - 10V, -10 - 10V) / Current (0 - 20mA, 4 - 20mA) Analog Module: 2-output Voltage (0 - 10V, -10 - 10V) / Current (0 - 20mA, 4 - 20mA)	31.8.2.13 External Driver - Analog Input/Output Module (6 points)
Bus Expansion Module	TM3XTRA1	Remote Transmitter Module	-
Bus Expansion Module	TM3XREC1	Remote Receiver Module	-
