How Recipes Work

• Recipe Data Structure
• Recipe Workflow
• Selecting Recipes
• Filtering the Recipe List ([Display Filter] Property)
• Comparing Ingredients with Data on the External Device
• Recipe Data Transition

Recipe Data Structure

You can create multiple recipes and control it in groups.

1: Ingredient value

2: Recipe data

• Ingredient Value: Individual data comprising a recipe.
• Recipe: Collection of Ingredient Value. Recipe data will be transferred to the device address.
• Recipe Group: Collection of Recipe.
• Recipe Family: Collection of Recipe Group.

Recipe Workflow

1. Create recipes with the screen editing software.

   Note: By using the Import/Export function, you can also modify recipes in Excel or other software. For more detail, refer following.

   Exporting and Importing Recipe Data

2. Transfer the project to the display unit.

   Note:

   • If the save destination of recipe is set to [Internal], the recipe is saved in the internal memory of the display unit. For the internal memory, refer to the following.
     Functions Available in Memory / Storage
     If you want to reduce the amount of internal memory usage, change the save destination to external storage. From the Project Explorer select [Control], and in the Properties window change the [Save in] option.

   • If the recipe is saved to external storage, attach the external storage to the display unit.

3. Select the recipes you want to send from the display unit to the external device. For information about selecting recipes, refer to the following.
   Selecting Recipes

   Note: Before sending recipes to the external device, you can compare differences in data with the Ingredient Viewer object.

   Comparing Ingredients with Data on the External Device

4. Send recipes to the external equipment. Data on the external equipment is overwritten.
   Recipe Data Transition

Selecting Recipes

There are two ways to select recipes.

• Select recipe from external device:

Select [Recipe] ➞ [Control], and by defining variables for the [Recipe Family ID], [Recipe Group ID], and [Recipe ID] you can use the external device to select recipes. You can set up one Recipe Control for each project.

• Select recipe by touch:

By using a Recipe Dropdown List object, you can touch to select recipes. In this case, setting up variables for selecting recipes becomes unnecessary.

In the following video, refer to the recipe Selection Method for when using the Recipe Dropdown List object.

Filtering the Recipe List ([Display Filter] Property)

Select the [Display Filter] check box to filter the list according to the entered text. After touching the Recipe Drop-Down List, you can touch [Search] at the top of the list and type the text for the filter.

When filtering recipes with the text, touch the Search Kind icon to toggle between search options.

	Wild Card	Case Sensitive
	Search for partial matches (any part of recipe label)	-
	Search for forward matches (match characters at beginning of label)	-
	No wildcard. Match label exactly, regardless of case.	-
	No wildcard. Match label exactly, including case.

Example Usage

The following describes the filters in action.

1. Touch the Recipe List to view items.


2. In the [Search] field, type the text to find matches in the Recipe List.

3. In this example type “1”, confirm the [Search Kind] icon is as shown, and the list is filtered as follows.


4. In the [Search] field type “RECIPE”, change the [Search Kind] icon as shown, and the list is filtered as follows.


5. In the [Search] field type “RECIPE1LABEL”, change the [Search Kind] icon as shown, and the list is filtered as follows.


6. In the [Search] field change the [Search Kind] icon as shown, and the list is filtered as follows (no matches).


Comparing Ingredients with Data on the External Device

Before transferring recipes, you can use the Ingredient Viewer object to compare ingredients on the display unit with external device values.

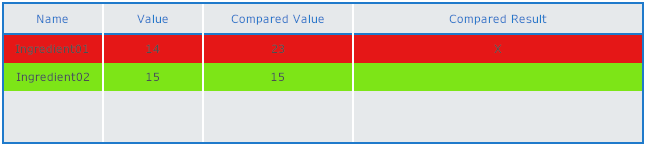

By executing the [Compare] operation, the device address value is displayed in the [Compared Value] column of the Ingredient Viewer object. You can set a different Font Color and Background Color in the Ingredient Viewer object for when compared values are the same or different.

If [Value] and [Compared Value] is different, "X" is displayed in [Compared Result] column.

Recipe Data Transition

To send the selected recipe to external devices, you need to set up scripts.

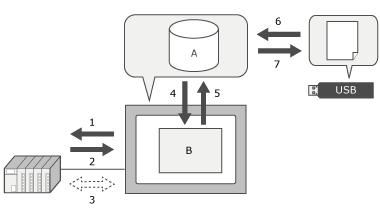

Depending on the operation selected in Operation, the transition of recipe data is as follows.

Name		Description
A	Project File	Data saved on the display unit.
B	Working Memory	Memory for temporary storage of working data. Data is lost if power on the display unit is turned OFF. Selecting a recipe copies the recipe saved in the project to this memory.
1	Send	Send a recipe from the display unit to the external device.
2	Snapshot	Copies data on the external device to the display unit. (Not saved to the display unit.)
3	Compared	Compares recipes on the display unit (working memory) with external device data.
4	Load	Discards data read using Snapshot or recipes modified with the Ingredient Viewer object, and restores them with recipes saved in the project.
5	Save	Saves to the project data read using Snapshot or recipes modified with the Ingredient Viewer object.
6	Import	Import recipes from the external storage attached to the display unit.
7	Export	Export recipes saved on the display unit to external storage attached to the display unit.
