Properties (Content Display)

[Function] - [Basic]

[Content ID] '(object name).ScreenID'

Set the content ID of the content to display in the Content Display.

Setting Value Range: 1 - 19999

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).ScreenID'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding
[Parameter]

Set the value to store in the '(Content Name).Parent.Parameter' source property of the content.

By associating this source property with any of the content properties, the [Parameter] value is referred to by the associated property.

Setting Value Range: -2147483648 - 2147483647

Example

If you associate the '(content name).Parent.Parameter' source property with [Zoom Percent] in the [Zoom Canvas] content, you can specify its zoom percentage in the [Parameter] setting of the content display object or the slide content display object.

Property of Content

Name [Screen Type] [Zoom Percent]
Content1 [Zoom Canvas] [ Graphical Object]
[Source Object]: Content1
[Source Property]: Parent.Parameter


Property of Content Display Object or Slide Content Display Object

[Name] [Parameter]
ContentDisplay1 or SlideContentDisplay1 100
ContentDisplay2 or SlideContentDisplay2 200

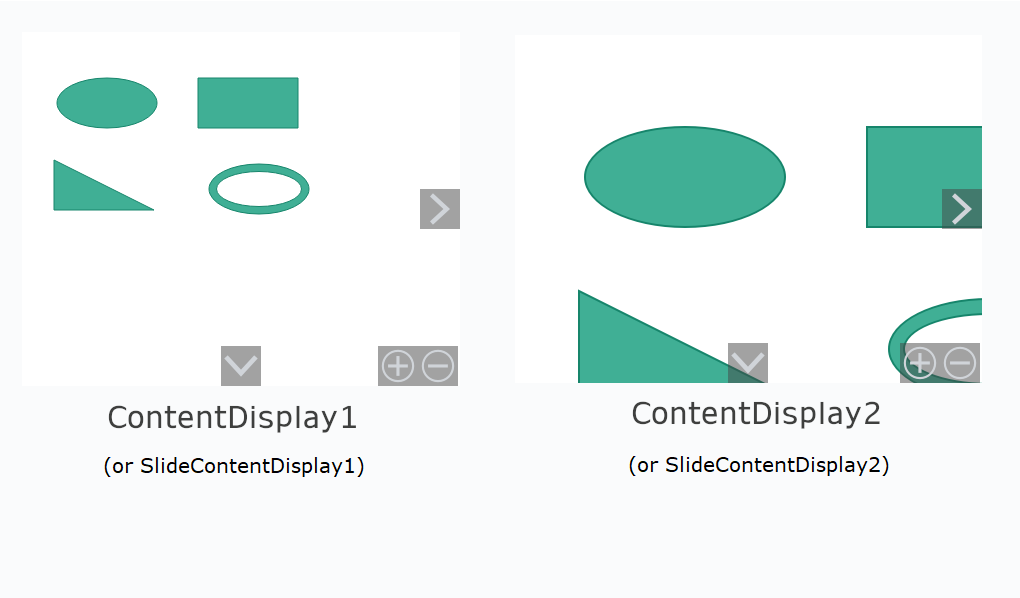

The same content is displayed with a zoom percentage of 100% for ContentDisplay1 (or SlideContentDisplay1) and 200% for ContentDisplay2 (or SlideContentDisplay2).

Note:

  • To use the ‘(Content Name).Parent.Parameter’ source property as a Binding Source, refer to the following.
    Parent.Parameter
    For more information of Data Binding concept, refer to the following.
    Data Binding
  • Since the '(Content Name).Parent.Parameter' source property is read-only, set the [Direction] to [One Way] when associating it with a property.

[Shape] - [Size/Location]

[Location]
[Left] / [Top] '(object name).Location.Left' / '(object name).Location.Top'

Specify the coordinates of the object’s top-left border. The top-left part of the drawing screen is the start point for coordinates.

Setting Value Range: -5000 - 10000

Set when drawing objects away from Grid, Scroll Grid, Uniform Grid, Dock Panel, and Stack Panel coordinates.

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Location.Left' / '(object name).Location.Top'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding
[Row] / [Column] '(object name).Location.Row' / '(object name).Location.Column'

Set the location of an object to place with row and column numbers.
The top-left cell of the drawing screen is the start row and column. 0 is the number for the start row and start column.

Setting Value Range: 0 - 100

Set when placing objects in a Grid or Scroll Grid.

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Location.Row' / '(object name).Location.Column'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding
[Row Span] / [Column Span] '(object name).Location.RowSpan' / '(object name).Location.ColumnSpan'

Set the row span or column span when you want to place an object on multiple rows and/or columns.

Setting Value Range: 1 - 100

Set when placing objects in a Grid or Scroll Grid.

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Location.RowSpan' / '(object name).Location.ColumnSpan'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding
[Width] / [Height] '(object name).Width' / '(object name).Height'

Set the object width and height.
By default, values are set in brackets. If you change the value of other settings (such as object alignment, margins), the value in brackets is updated accordingly.

Setting Value Range: 1 - 5000

Note: When placing objects on a Grid, Scroll Grid, or Uniform Grid, in order for the object to line up with grid borders, use the width and height default values.

Data Binding Support:

To use as a Binding Source, refer to the following. Note that if the width and height remain as their default values, the value of the Binding Source is 0.
'(object name).Width' / '(object name).Height'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding
[Angle]

Set the rotation angle for the object. Set the rotation angle in the clockwise direction.

Setting Value Range: -360 - 360
[Margin]
[Left] / [Right] / [Top] / [Bottom]

Set the margins on the object. [Margin] settings depend on [Object Alignment] and [Width]/[Height] settings. This setting works together with [Object Alignment].

Setting Value Range: -1000 - 1000

Note: The margin is not part of the object area. Touching its margin is not the same as touching the object.
[Object Alignment]
[Horizontal]

Select the horizontal alignment option. When the object is on [Canvas], [Scroll Canvas], [Zoom Canvas], [View Box], this setting does not work.

-[Left]: The object are left-aligned with respect to the drawing target. The object position shifts right by the numerical value set in [Left] margin. [Right] margin is ignored.
-[Center]: The object are center-aligned with respect to the drawing target. The object position shifts right by the numerical value set in [Left] margin. [Right] margin is ignored.
-[Right]: The object are right-aligned with respect to the drawing target. The object position shifts left by the numerical value set in [Right] margin. [Left] margin is ignored.
-[Stretch]: The object width is smaller than the value set in [Width] by the numerical value set in [Left] and [Right] margin.

Note: When object [Width] is set as default value (value are set in brackets), object alignment is same as [Stretch] even when you select other option than [Stretch].
[Vertical]

Select the vertical alignment option. When the object is on [Canvas], [Scroll Canvas], [Zoom Canvas], [View Box], this setting does not work.
-[Top]: The object are top-aligned with respect to the drawing target. The display position of the object shifts downward by the numerical value set in [Top] margin. [Bottom] margin is ignored.
-[Middle]: The object are middle-aligned with respect to the drawing target. The display position of the object shifts downward by the numerical value set in [Top] margin. [Bottom] margin is ignored.
-[Bottom]: The object are bottom-aligned with respect to the drawing target. The display position of the object shifts upward by the numerical value set in [Bottom] margin. [Top] margin is ignored.
-[Stretch]: The object height is smaller than the value set in [Height] by the numerical value set in [Top] and [Bottom] margin.

Note: When object [Height] is set as default value (value are set in brackets), object alignment is same as [Stretch] even when you select other option than [Stretch].
[Animation]
[Horizontal Offset] / [Vertical Offset] '(object name).Animation.HorizontalOffset' / '(object name).Animation.VerticalOffset'

Set the value to move the object in horizontal or vertical direction.
In [Horizontal Offset], you can set a positive value to move the object from the left to right, or a negative value to move the object from the right to left.
In [Vertical Offset], you can set a positive value to move the object towards the bottom, and a negative value to move the object towards the top.
On the right-hand side of the field, click the box to select the source property that stores the amount of movement.

Setting Value Range: -5000 - 10000

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Animation.HorizontalOffset' / '(object name).Animation.VerticalOffset'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding
[Horizontal Anchor] / [Vertical Anchor] '(object name).Animation.HorizontalAnchor' / '(object name).Animation.VerticalAnchor'

Set the origin point (X/Y axis) of the object that is scaled up/down.
On the object before any movement is applied, set its base point as a percentage from the top-left of the object.
On the right-hand side of the field, click the box to select the source property that stores the base point.

Setting Value Range: 0 - 100

When [Horizontal Anchor] = 25 and [Vertical Anchor] = 75, the base point is as shown below.

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Animation.HorizontalAnchor' / '(object name).Animation.VerticalAnchor'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding
[Horizontal Scale] / [Vertical Scale] '(object name).Animation.HorizontalScale' / '(object name).Animation.VerticalScale'

Set the percentage of object after scaling up or down.
On the right-hand side of the field, click the box to select the source property that stores the object size as a percentage.

Setting Value Range: -32768 - 32767

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Animation.HorizontalScale' / '(object name).Animation.VerticalScale'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding
[Rotation Center (X)] / [Rotation Center (Y)] '(object name).Animation.RotationCenterX' / '(object name).Animation.RotationCenterY'

Set the rotation center (X/Y axis) for the object.
On the object before any movement is applied, set the position of the base point as a percentage of the width and height of the object.
On the right-hand side of the field, click the box to select the source property that stores the X or Y coordinate of the rotation center point.

Setting Value Range: -1000 - 1000

When [Rotation Center (X)] = 50, and [Rotation Center (Y)] = 500, the rotation center is as shown below.

Note: 0 is the left or top side of the object, and 100 is the right or bottom side of the object.

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Animation.RotationCenterX' / '(object name).Animation.RotationCenterY'
'(object name).Animation.RotationCenterX' / '(object name).Animation.RotationCenterY'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding
[Rotation Angle] '(object name).Animation.RotationAngle'

Set the rotation angle for the object.
On the right-hand side of the field, click the box to select the source property that stores the rotation angle.

Setting Value Range: -32768 - 32767

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Animation.RotationAngle'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding
[Visibility] '(object name).Visibility'

Select the visibility state of the object.
On the right-hand side of the field, click the box to select the source property for the visibility function.
(The value in brackets represents the value of the source property)

-[Visible] (0): Display the object.

-[Hidden] (1): Hide the object. The object area is maintained.

-[Collapsed] (2): Collapse the object. The object area is also collapsed. You can dynamically change the screen layout by collapsing objects on the Uniform Grid, Stack Panel, or Dock Panel.

Setting Value Range: 0 - 2

Note:

Data Binding Support:

To use as a Binding Source, refer to the following.
'(object name).Visibility'

When used as a Binding Target, the Binding Sources that can be associated are as follows.
[ Alarm] [ Variable] [ Local Variable] [ Graphical Object] [ Target] [ Equipment] [ Recipe]

For more information of Data Binding concept, refer to the following.
Data Binding
