System Design

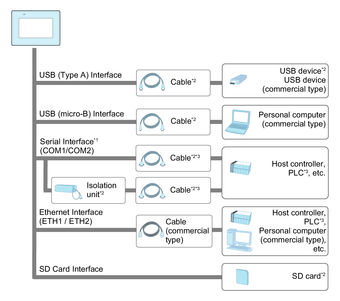

This section describes the system configuration with this product and peripheral equipment.

NOTE:
  • The number of interfaces may vary depending on the model. Refer to Parts Identification and Functions.

  • External storage devices used with this product should be formatted with the FAT, FAT32, or exFAT file system.

*1 In order to use this as an isolation port, Isolation Unit is required. To use RS-232C isolation unit, set the #9 pin of the COM port to VCC.

*2 Refer to Accessories.

*3 For information on how to connect controllers and other types of equipment, refer to the corresponding device driver manual of your screen editing software.
