Alarm Occurrence

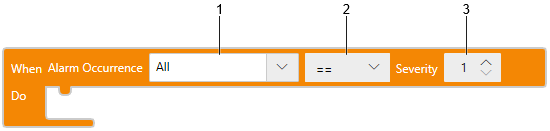

The Alarm Occurrence trigger runs the operation, when a configured alarm group or system error group satisfies the severity conditions.

Block

Text

All

onAnyAlarm($Enums.AlarmOperator.Equals, 1, ()=>{
1 2 3
});

AlarmGroup

onAlarm($AlarmGroup.AlarmGroup1,$Enums.AlarmOperator.Equals, 1,()=>{
1 1 2 3

});

SystemErrorGroup

onAnySystemError(()=>{
1
});

1. Group

2. Condition

3. Severity

Group

Select the alarm group or system error group.

Block

[AlarmGroup1] (Name of the alarm group)

[All]

[SystemErrorGroup]

Text

'onAlarm'

'onAnyAlarm'

'onAnySystemError'

Condition

Select the condition.

Block

[==]

[<=]

[>=]

[When Occur]

Text

'$Enums.AlarmOperator.Equals'

'$Enums.AlarmOperator.LessThanOrEquals'

'$Enums.AlarmOperator.GreaterThanOrEquals'

'$Enums.AlarmOperator.WhenOccur'

[Severity]

Set the severity level for the selected alarm group.

Range: 0 - 999

(Example 1)

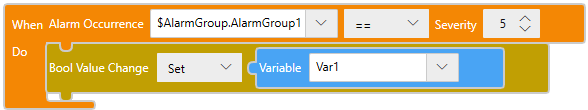

In AlarmGroup1, when an alarm of severity 5 occurs, Var1 turns ON.

Block

Text

onAlarm($AlarmGroup.AlarmGroup1,$Enums.AlarmOperator.Equals, 5, ()=>{

Var1 = true;

});

(Example 2)

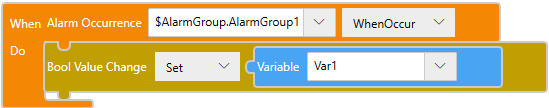

In AlarmGroup1, when an alarm occurs, Var1 turns ON.

Block

Text

onAlarm($AlarmGroup.AlarmGroup1,$Enums.AlarmOperator.WhenOccur, ()=>{

Var1 = true;

});
