Updating Recipes

Recipe values can be modified on display unit.

Example Operation

Setting Workflow

1. Add Variables
2. Add Recipe Family
3. Add Recipe Group
4. Add Recipes
5. Add Ingredients
6. Set Ingredient Values
7. Set up Parts
8. Set up Scripts

Add Variables

Project Explorer : [Variables] ➞ [All Variables]

Add the following variables.

Variables properties :

[Name]	[Data Type]	[Source]	[Device Address]	[Number of Bytes/Words]
Var1	[STRING]	'Schneider Modbus Serial Equipment'	400001	10
Var2	[BOOL]		400010,00	-
Var3	[INT]		400020	-
Var4	[INT]		400021	-
Var5	[INT]		400022	-

Add Recipe Family

Project Explorer : [Recipes] ➞ [Control]

Add the following recipe family.

Recipe Family (Name : RecipeFamily1) properties :

Tab	Property	Value
[Basic]	[Label]	Product A

Add Recipe Group

Project Explorer : [RecipeFamily1]

Add the following recipe group to [RecipeFamily1].

Recipe Group (Name : RecipeGroup1) properties :

Tab	Property	Value
[Basic]	[Label]	X Series

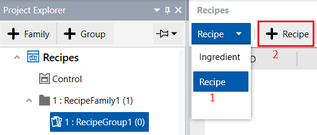

Add Recipes

Project Explorer : [RecipeGroup1]

Add the following Recipes to [RecipeGroup1].

[Recipe] properties :

[Name]	Property Window
	Tab	Property	Value
[Recipe1]	[Basic]	[Label]	Model1
[Recipe2]			Model2
[Recipe3]			Model3

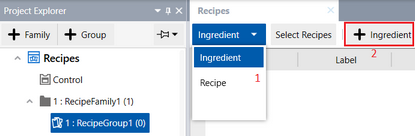

Add Ingredients

Project Explorer : [RecipeGroup1]

Add the following ingredients to [RecipeGroup1].

[Ingredient] properties :

[Name]	Property Window
	Tab	Property	Value
[Ingredient1]	[Basic]	[Label]	Code
		[Value]	[Variable] [Name]: Var1
		[Input Mode]
[Ingredient2]	[Basic]	[Label]	Coating
		[Value]	[Variable] [Name]: Var2
		[Input Mode]
[Ingredient3]	[Basic]	[Label]	Temperature
		[Value]	[Variable] [Name]: Var3
		[Min Input]	0
		[Max Input]	100
		[Input Mode]
		[Use Variable Input Range]
[Ingredient4]	[Basic]	[Label]	Time
		[Value]	[Variable] [Name]: Var4
		[Input Mode]
		[Use Variable Input Range]
[Ingredient5]	[Basic]	[Label]	Weight
		[Value]	[Variable] [Name]: Var5
		[Input Mode]
		[Use Variable Input Range]

Set Ingredient Values

Project Explorer : [RecipeGroup1]

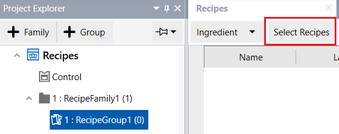

To set recipe values of ingredients, from Document View click [Select Recipes] ➞ [Select All Recipes] ➞ [OK].

The Recipe1, Recipe2, and Recipe3 columns display to the right of the Document View.

Properties of the Columns of [Recipe1], [Recipe2], and [Recipe3] :

[Name]	Document Window
	Property	Value
[Ingredient1]	[Recipe1]	AAAAA
	[Recipe2]	BBBBB
	[Recipe3]	CCCCC
[Ingredient2]	[Recipe1]	On
	[Recipe2]	Off
	[Recipe3]	Off
[Ingredient3]	[Recipe1]	40
	[Recipe2]	37
	[Recipe3]	38
[Ingredient4]	[Recipe1]	60
	[Recipe2]	20
	[Recipe3]	30
[Ingredient5]	[Recipe1]	120
	[Recipe2]	60
	[Recipe3]	90

Set up Parts

Project Explorer : [Screen Design] ➞ [Screens] ➞ [Screen1]

Drag and drop the following objects from the [Tool Chest] to the screen.

Recipe Dropdown List object (Name: RecipeDropdownList1) properties : A-1

Tab	Sub Tab	Property	Value
[Function]	[Basic]	[Control Type]	[Family]

Recipe Dropdown List object (Name: RecipeDropdownList2) properties : A-2

Tab	Sub Tab	Property	Value
[Function]	[Basic]	[Control Type]	[Group]

Recipe Dropdown List object (Name: RecipeDropdownList3) properties : A-3

Tab	Sub Tab	Property	Value
[Function]	[Basic]	[Control Type]	[Recipe]

Ingredient Viewer object (Name: IngredientViewer1) properties : B-1

Default value.

Switch object (Name: Switch1) properties : C-1

Default value.

Switch object (Name: Switch2) properties : C-2

Default value.

Switch object (Name: Switch3) properties : C-3

Default value.

Switch object (Name: Switch4) properties : C-4

Default value.

Set up Scripts

Project Explorer : [Screen1]

Set the following script on the object.

From the [Tool Chest] drag and drop the script to the Script editor.

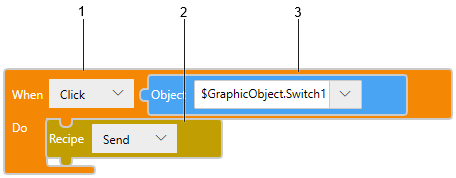

Switch object (Name: Switch1) script : C-1

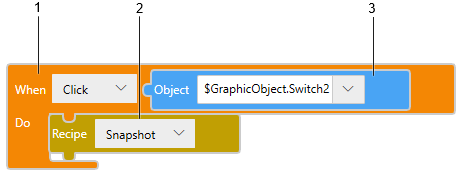

Switch object (Name: Switch2) script : C-2

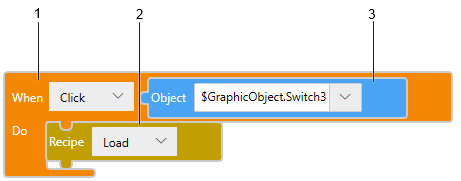

Switch object (Name: Switch3) script : C-3

Switch object (Name: Switch4) script : C-4

Legend	Block
1	[Triggers] ➞ [Touch] ➞ [Touch]
2	[Operations] ➞ [HMI Functions] ➞ [Recipe]
3	[Values] ➞ [Screen Object]
