{"searchBar":{"inputPlaceholder":"Search by keyword or ask a question","searchBtn":"Search","error":"Please enter a keyword to search"}}{}{}GP4000 Series/ Where can I set an IP address of EZ-LAN Adapter (PFXZCGEUUE1)?
You can set it on the offline screen of GP4000 series.
[Settings]
1.Transfer the screen data on GP-Pro EX VerV4.08 or later.
2.Insert the EZ LAN Adapter into the USB port of the touch panel. *Reboot is not necessary.
3.Move to the offline mode menu.

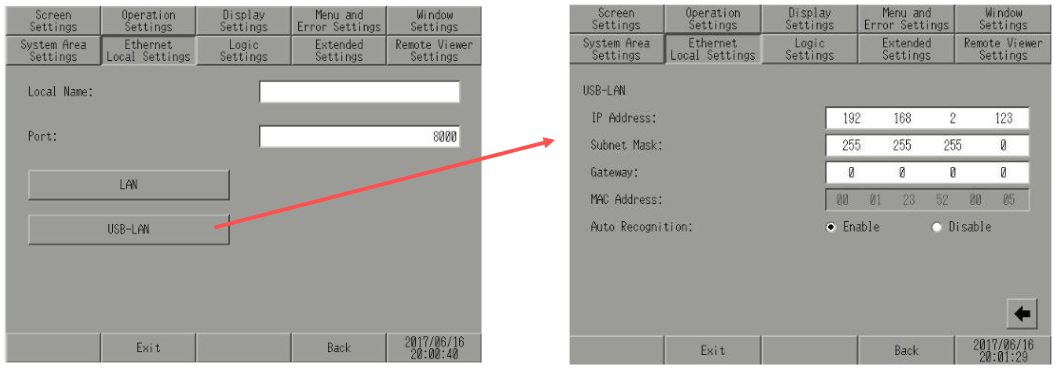

4.Select “Main Unit Settings” - “Ethernet Local Settings”.
5.Select “USB-LAN”.
6.Set an IP address.
[Settings]
1.Transfer the screen data on GP-Pro EX VerV4.08 or later.
2.Insert the EZ LAN Adapter into the USB port of the touch panel. *Reboot is not necessary.
3.Move to the offline mode menu.
4.Select “Main Unit Settings” - “Ethernet Local Settings”.
5.Select “USB-LAN”.
6.Set an IP address.
