{"searchBar":{"inputPlaceholder":"Search by keyword or ask a question","searchBtn":"Search","error":"Please enter a keyword to search"}}{}{}HMI/ When a problem occurs during starting a system, what are causes and solutions of error - RAAA20*-?

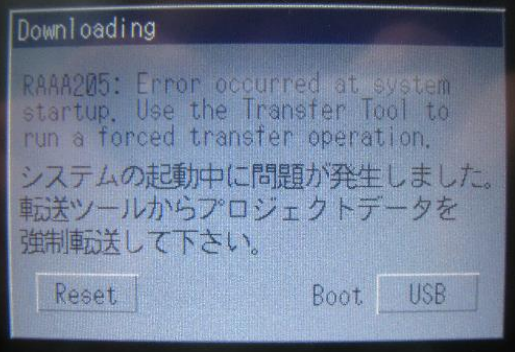

When the following error occurs, execute Forced Transfer from GP-Pro EX.
When Forced Transfer is impossible, try Memory Loader Transfer using a USB storage.

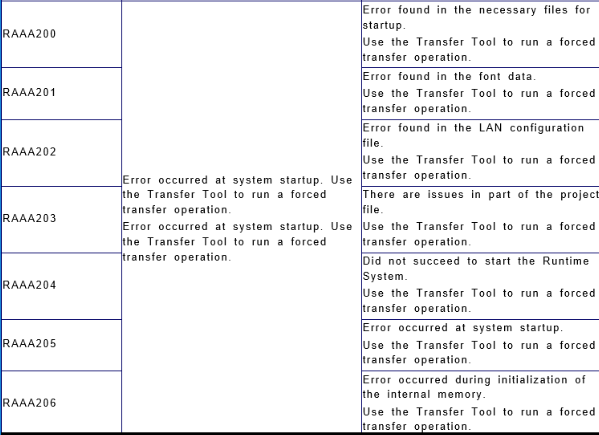

[Details of errors]
*Reference: GP-Pro EX Reference Manual
https://www.pro-face.com/otasuke/files/manual/gpproex/new/refer/gpproex.htm
[T.7.1 Settings common to all Display models]
[Memory Loader Transfer]
1.Insert a USB storage to a PC and create the startup data and the backup data under the USB storage with [Memory Loader] from the GP-Pro EX transfer screen.
2.Remove the USB storage from the PC and insert it to a TP.
3.Start Memory Loader from the [USB] button at the right bottom on the error screen of the main unit and run Memory Loader Transfer.
4.After transfer is completed, turn off the TP's power once. After the USB storage is pulled out, start the TP.
When Forced Transfer is impossible, try Memory Loader Transfer using a USB storage.
[Details of errors]
*Reference: GP-Pro EX Reference Manual
https://www.pro-face.com/otasuke/files/manual/gpproex/new/refer/gpproex.htm
[T.7.1 Settings common to all Display models]
[Memory Loader Transfer]
1.Insert a USB storage to a PC and create the startup data and the backup data under the USB storage with [Memory Loader] from the GP-Pro EX transfer screen.
2.Remove the USB storage from the PC and insert it to a TP.
3.Start Memory Loader from the [USB] button at the right bottom on the error screen of the main unit and run Memory Loader Transfer.
4.After transfer is completed, turn off the TP's power once. After the USB storage is pulled out, start the TP.
