How is Operated ACTION by plural "Trigger Conditions"?

You can set up plural "Trigger Conditions" when operationg ACTION or Dara Transfer.

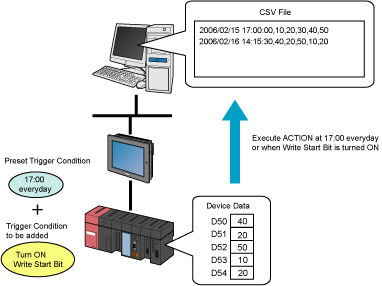

	Foe example, as like as bellow, you can operate "ACVTION" when one of 2 "Trigger Conditions" was filled up that conditions were [17:00 on evert day] or [Bit -ON for the Writing Start].

This sample is as follows when you set up same of "Trigger Condition" of above.
( *Supposing "AGP3500" as a "Entry Node" and "Writing Srart" as a "Symbol sheet" were registerd.)

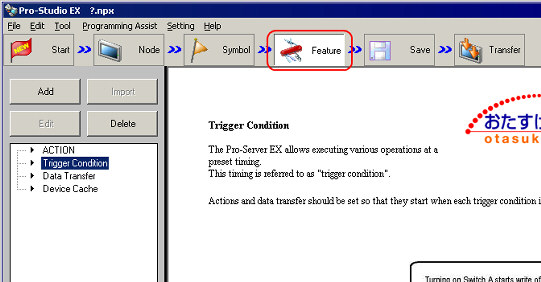

1.	Choose [Feature].

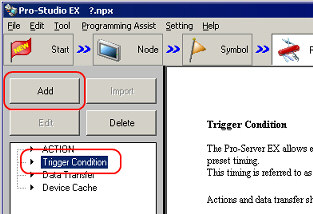

2.	Choose [Trigger Condition], and click [Add].

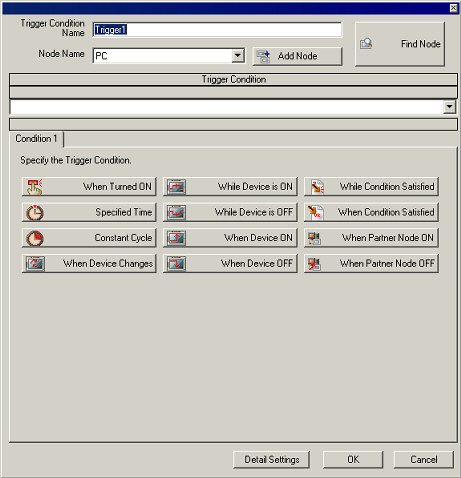

3.	Displaying the Window that set up "Trigger Condition".

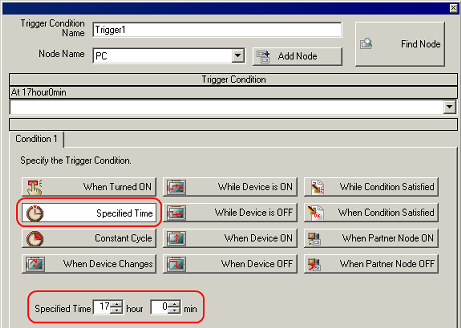

4.	Set up 1st "Trigger Condition. Choose [Specified Time] , and set up 17:00.

5.	Add "Trigger Condition". Choose [OR].
	*When you want to set up both conditions, choose "AND".

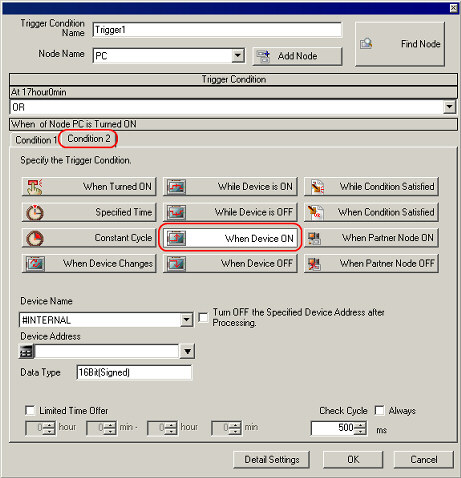

6.	[Condition 1] add. Set up 2nd condition. Choose [Condition 2] and [When Device ON].

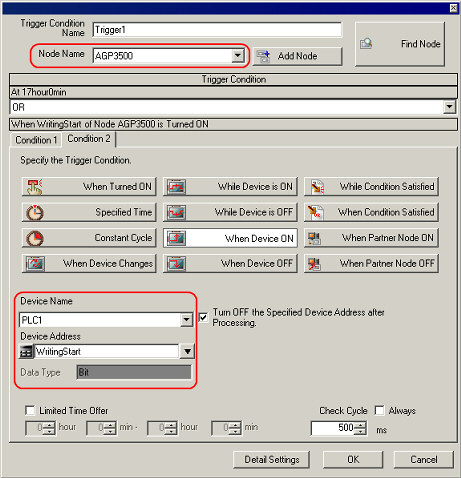

Set up "Node Name", "Device Name" and select a Symbol from "Device Address"
In here, set up "AGP3500" as a "Node Name", "PLC1" as s "Device Name" and "Writing Start" as a "Device Address".

*	"Device Address" will be Turn OFF automatically after Processing when you Check the box for [Turn OFF the Specified Device Address after Processing].

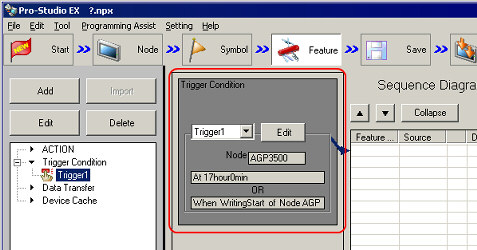

8.	The "Trigger Condition" set up already.

Published on:3/30/2014Last Modified on:9/29/2021
