Koyo Electronics CO., LTD. KOSTAC/DL Series CCM SIO | |  |

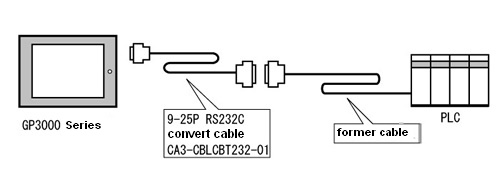

| | When replacing the cable (RS-232C) used for GP2000/77R/70 series to GP3000 series, | | | | System Configuration Diagram of GP2000/77R/70 series | | Connect to COM1. | | | | | | | System Configuration Diagram of GP3000 series | | |
| |
| | Important notes for the replacement of the cable from GP2000/77R/70 series to GP3000 series *Be sure to read here. | | | When replacing the hardware from GP2000/77R/70 series to GP3000 series, there are important notes shown below. | | | Communication settings | | - | Initial settings between GP-PRO/PB3 and GP-Pro EX are different as below. | | | | GP-Pro/PB3 | GP-Pro EX | | Timeout | 10sec | 3sec |
|
|
| | Supported devices | | - | For GP-Pro EX,the notation of word device differs.Also, the notation of Node differ. | | | GP-Pro/PB3 | GP-Pro EX | | Device String | Address String | Device String | Address String | | R404 | 00 | R | 40400 | | R | 40000 | R | 400.00 | | V405 | 00 | V | 40500 | | V | 40000 | V | 400.00 |
|
|
| | Warning messages of [Project Conveter] | | - | When the project file of GP-PRO/PB3 will be converted by [Project converter], these messages will show in following cases. | | | Warning Message | Description | | A speed setup which cannot be set up is registered. It returned to the default. | This message appears when Baudrate is set to 187500 bps. The baudrate is changed to 19200 bps, which is a default value, after conversion. | | A data length setup which cannot be set up is registered. It returned to the default. | This message appears when 7-bit is selected as a data length. The data length is changed to 8-bit, which is a default value, after conversion. | | A flow control setup which cannot be set up is registered. It returned to the default. | This message appears when X Control is selected for the control type. The control type is changed to ER (DTR/CTS) after conversion. |
|
|
|
|
