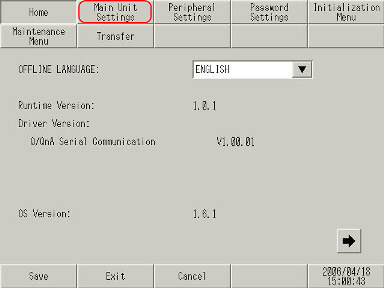

| The following explain how to connect the GPs via a Network. | | 1. | Transfer to "Initial Transfer Mode". Touch The [Main Unit Settings]. | |
| | Please refer to how to transfer "Initial Transfer Mode",
Please click below, |

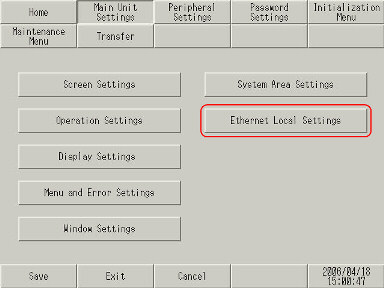

| 2. | Displaying the Setting Screen to fix System of GP. Touch the [Ethernet Local Settings]. | |
|

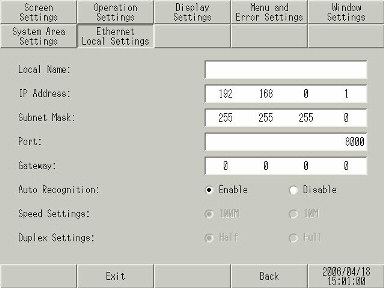

| 3. | Enter the numbers of thr IP address, Subnet Mask, DEfault Gateway and Self Node. Regarding the Values to set, please contact the network sdministrator. | |
| | | MEMO | | ・ | If no relay device to the other network such as a router is connected, it is not necessary to input about [Default Gateway]. |
|
|
|
|
