PFXPF16Cxxxxxxxx00

Standard product information
Family
Industrial PC (IPC)
Series
PS4000 Series
Size
12"
Model
PFXPF16Cxxxxxxxx00
Global Code
PFXPF16Cxxxxxxxx00
Product Features
12" rear mount 1 slot (1 PCIe)
Sales Status
End of Sales
End of sales date
Wednesday, July 31, 2019*1
End of repair date
Monday, December 25, 2023*2
Repair Status
✔ (Maintenance service is available, able to be maintained.)

1Due to the limited availability of the products in stock, shipping will end when the stock is out.

2It might not be able to repair our products when replacement parts become unavailable, regardless of the maintenance period.

Recommended replacement information
Replacement option 1
Model
PFXPP26xxxxxxxxx00 (PS-5600T, Core i7 model)
PFXPU26xxxxxxxxx00 (PS-5600T, Celeron model)
Replacement option 2
Model
PFXPL26xxxxxNxxx00 (PS-5601T, Atom model)
PFXPL26xxxxx4xxx00 (PS-5601T, Atom (Entry) model)
Note
PS-5601T Atom Model is the substitute of PS-4600 Celeron Model.
Industrial PC specifications
Supported OS
HDD or SSD: Windows XP Professional SP3 (32 bit) / Windows 7 Ultimate (32 bit/64 bit)
CFast: Windows Embedded Standard 2009 (32 bit) / Windows Embedded Standard 7 Premium (32 bit)*3
CPU
Intel Core i3-3217UE 1.60 GHz / Intel Celeron M 827E 1.40 GHz
L2 cache memory
Core i3: 3MB / Celeron: 1.5 MB
Main Memory
DDR3: 1 GB to 16 GB max.
Chipset
Core i3: Intel QM77 / Celeron: Intel HM76
Graphic Accelerator
Core i3: Intel HD Graphics 4000 / Celeron M: Intel HD Graphics 3000
Video Memory
Up to 1 GB*4
Graphics
XGA TFT active matrix (1,024 x 768 pixels)

3For details on languages supported by pre-installed operating systems, read the manual, "The List of OS Pre-installed Languages for Multi-language".
For Windows Embedded Standard 2009, 4 GB CFast or more is required. For Windows Embedded Standard 7 Premium, 8 GB CFast or more is required.
End of sale for Windows XP model: Nov. 25, 2016.

4Reserved from main memory

Display specifications
Display Size
12.1"
Display Colors
16 million colors
Backlight
LED
Backlight service life
50,000 hrs. at 25 °C [77 °F]
Brightness Control
Step less adjustment
Touch Panel Type
Resistive Film (analog)
Touch Panel Resolution
4,096 x 4,096
Electrical specifications
Rated Input Voltage
AC: 100 to 240 Vac
DC: 24 Vdc ±25 %
Rated Frequency
AC Power Model : 50 / 60 Hz
Power Consumption
130 W or less
In-Rush Current
AC Power Model: < 20 A (Cold restart, 100% load, 100 Vac)
DC Power Model: Typ. 7 A, max. 60 A < 300 μs
Environmental specifications
International Safety Standards
Surrounding Air Temperature
When using HDD running with a fan kit, SSD or CFast: 0 to 50 °C [32 to 122 °F]
When using Gigabit Ethernet: 0 to 45 °C [32 to 113 °F]
When using DVD multi drive: 5 to 45 °C [41 to 113 °F]
Storage Temperature
-20 to +60 °C [-4 to 140 °F]
Ambient Humidity
10 to 85 % RH (Wet bulb temperature: 29 °C [84.2 °F] max. - no condensation)
Storage Humidity
10 to 85 % RH (Wet bulb temperature: 29 °C [84.2 °F] max. - no condensation)
Pollution Degree
For use in Pollution Degree 2 environment
Air pressure (altitude range)
2,000 m [6,561 ft.] max.
Vibration resistance
EN/IEC 60068-2-6 Fc
[Operation (continuous) for 6 Fc products with SSD or CF Card storage device] 2 to 9 Hz: 1.5 mm [0.06 in.], 9 to 200Hz: 4.9 m/s2, 5 to 8.4 Hz: 1.75 mm [0.07], 8.4 to 150 Hz: 4.9 m/s2
[Operation (continuous) for products with HDD storage device] 5 to 100 Hz: 1.225 m/s2
[Operation (occasional) for products with SSD or CF Card storage device] 2 to 9 Hz: 3 mm [0.12 in.], 9 to 200 Hz: 9.8 m/s2, 5 to 8.4 Hz: 3 mm [0.12], 8.4 to 150 Hz: 9.8 m/s2
[Operation (occasional) for products with HDD storage device] 5 to 100 Hz: 2.450 m/s2
Concussion resistance
147 m/s2 / 11 ms (IEC 60068-2-27 Ea test)
Electromagnetic Compatibility (EMC)
Immunity to High Frequency Interference
Electromagnetic Emissions Class A
Interface specifications
Serial (COM1)
RS-232C (D-Sub 9-pin, plug)
Serial (COM2)
RS-232C (D-Sub 9-pin, plug)
USB Type A
Conforms to USB 2.0 (Type A) x 4 (bottom side)*5
Ethernet (LAN1)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Ethernet (LAN2)
10 / 100 / 1000 Mbit/s (RJ-45 Modular jack)
Video
DVI-I x 1
Serial ATA
Slide-in Disk: (HDD, SSD / CFast with Slide-in Disk Adapter unit) x 1
Slide-in Slot: (DVD-RW / HDD, SSD, CFast (with Slide-in Disk Adapter unit) through Slide-in Slot Adapter unit) x 1
CFast: x 1*6
Expansion slot
PCI Express(x8) x1

5USB 3.0 is equipped with Core i3 model of Windows 7 or Windows Embedded Standard 7
Maximum 500 mA per connection for USB5
Maximum 1 A per connection for USB1, USB2, USB3 and USB4
USB5 is not equipped with Rear Mount Model.

6Modifying products to install an HDD into a Slide-in Disk when it was not installed from factory, requires to change the unit firmware settings for proper behavior of the fan (that are required when running with HDD into a Slide-in Disk) - Please contact Pro-face support if you want to proceed such modification.

Structural specifications
Cooling method
Passive heat sink for the operation without HDD storage device into Slide-in Disk.
Optional fan kit necessary for the operation with HDD storage device into Slide-in Disk.
External dimensions
W292 x H246 x D123.7 mm [W11.50 x H9.69 x D4.87 in.]*7
Panel cut dimensions
W270 (+1.0/0) x H206 (+1.0/0) mm [W10.63 (+0.04/0) x H8.11 (+0.04/0) in.]
Weight
4 kg [8.81 lb]

7The length between two mounting holes

Dimensions

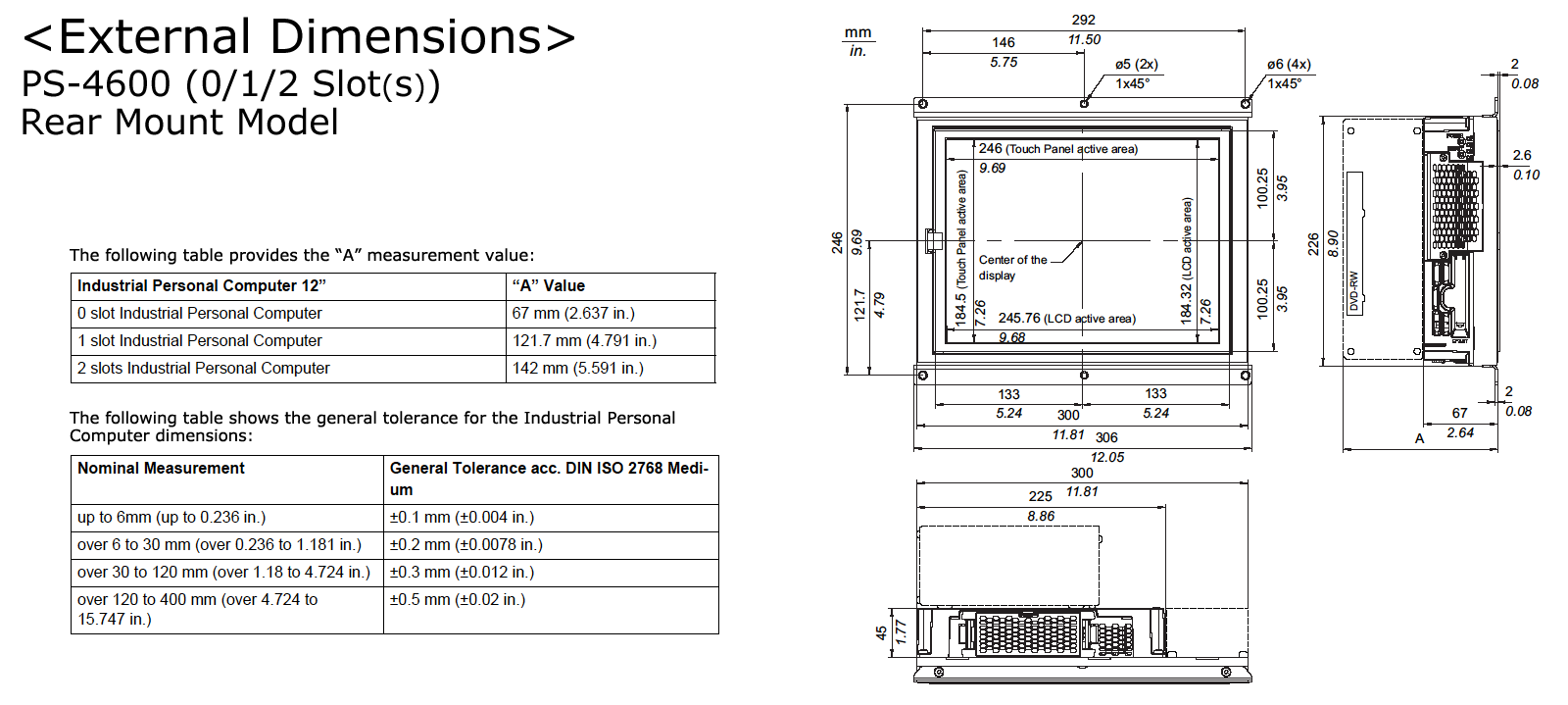

External installation diagram

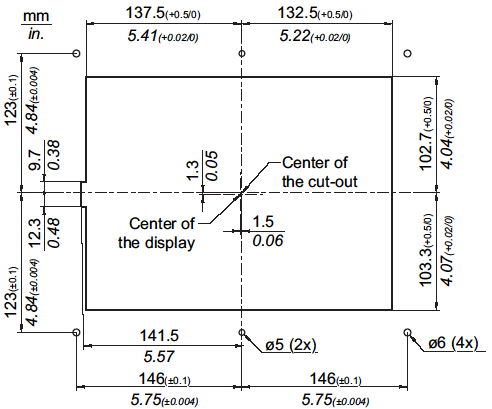

Panel cut dimensions


The thickness of the installation panel must be exactly 2.3 mm [0.09 in.]
