Updated: 3/23/2026
Performance has been significantly improved.
Overview:

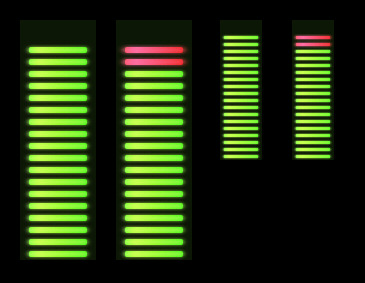

This is a vertical bar graph.
You can choose from two sizes: Large and Small.
You can adjust the minimum and maximum ranges, and the amount of movement of the bar graph will automatically change accordingly.
Target Model:
GP4000, SP5000, SP5000X, ST6000, STM6000, PS5000, PS6000, PC/AT
Target Size:
No Restrictions.
Details:
When you place this gauge on the screen, the following symbol variables and D-Script will be automatically registered in your project.
Please refer to the included simple manual for instructions on how to change the settings.
- (Symbol Variable) SD_BarGraph03
- (Symbol Variable) SD_BarGraph03_Setting
- (D-Script) SD_BarGraph03
Remarks:
- The download data 'SmartDesign_BarGraph.zip' also includes other Smart Design BarGraphs. If you have already downloaded another Smart Design BarGraph, you do not need to download this part.
- This package file is not available in GP-Pro EX versions before 5.00.000.
