GPH6000-MM01-EN.00

Update OS Using External Storage

NOTICE
LOSS OF DATA, EQUIPMENT DAMAGE
Do not turn off the product while updating the system.
Failure to follow these instructions can result in equipment damage.

Prepare external storage such as USB memory or an SD card in advance, and store the update file on them.

NOTE: Please format the external storage device with the FAT or FAT32 file system.
  1. Turn off this product and connect the external storage.
  2. Use the Tap-Tap operation to display the system settings. For details, refer to Display System Settings on the Product Screen.
  3. Log in as "admin" and select Management from the menu.
  4. Expand Main OS and touch the Update button.

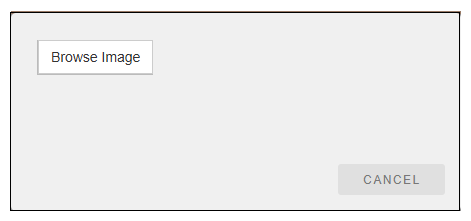

  5. A dialog box will appear. Touch Browse Image and select the update file (.img).
  6. Restart the product.
