GP6000-MM01-EN.00

Isolation Unit Installation Procedure

You can install the Isolation Unit to the back of this product or to the installation panel. For details such as settings when using the Isolation Unit, refer to the product manual.

DANGER
HAZARD OF ELECTRIC SHOCK OR EXPLOSION
Prior to connecting the Isolation Unit to this product, confirm that this product's power supply is completely turned OFF.
Failure to follow these instructions will result in death or serious injury.
NOTE:
  • Install the Isolation Unit to a stable surface.

  • Do not leave the Isolation Unit hanging by its cord.

  • Be careful with wire placement. Overlapping cords may cause noise.

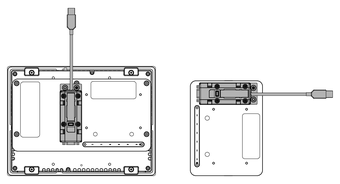

  1. Check the locations of two screw holes on the rear of this product.

    Panel mount type

    DIN mount type

    1. Screw holes

  2. Install one of the two attachment screws included in the Isolation Unit to this product. Use a torque of 0.5 N•m (4.4 lb-in).
    1. This product

    2. Attachment screw

  3. Attach the Isolation Unit to this product.
    1. This product

    2. Attachment screw

    3. Isolation unit

  4. Slide the Isolation Unit in the direction of the arrow so the Isolation Unit is hooked by the screw from Step 2.
  5. Secure the Isolation Unit in place with another attachment screw. Use a torque of 0.5 N•m (4.4 lb-in).
