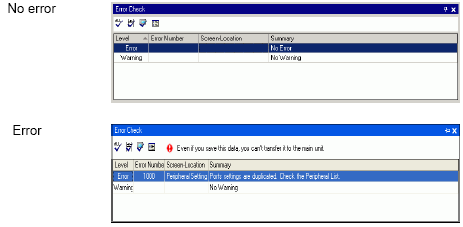

Checks whether an error exists in the settings in a project.
Operation Icons
All
Checks for errors in all settings.
Logic only
Checks for errors in logic screens only.
Screen only
Checks for errors in screens only.
Settings
The [Preferences] dialog box appears with the [Error Check] options.
Level
Displays the error level as either an [Error] or a [Warning].
If there is even one [Error], it cannot be transferred. For cases of only [Warning], it can be transferred, but it will not run properly.
If a checkmark is not placed in [Display Warnings] from the [View] menu's [Preferences] - [Error Check], [Warning] will not be displayed.
3.8.5.4 Preferences - Error Check
Error Number
Displays the error number. For details about error numbers, refer to "Maintenance/Troubleshooting."
Screen-Location
Displays the Screen Number, Part Number, or Row Number where the error occurred.
Summary
Displays the error details.
Error checks are automatically performed when saving projects.
When you click
on the [Error Check] window, display fixing of the window is disabled. The window displays as the [Error Check] tab on the [Function Bar]. Point the cursor to the tab to display the [Error Check] window. You can execute error checks while drawing without using a window.
