Using the following timing, saves the retrieved operation log to external storage as a CSV file.
Transfer Project (Send Project)
When you exceed backup memory (SRAM) capacity
23.14.6 Operation Log Capacity
When the [Add IP address to log when operating from Pro-face Remote HMI] check box is selected, and the sixth client uses Pro-face Remote HMI to operate the display unit
Even if the execution condition of the operation log is set to [When Bit is ON], in the above example the log is automatically output to external storage as a CSV file.
File Name
File names are saved in the following format.
OLHHMMSS.csv
OL: File name prefix for operation log
HH: Hours
MM: Minutes
SS: Seconds
For example, an operation log saved at 17:03:08 is named OL170308.csv
File Folder

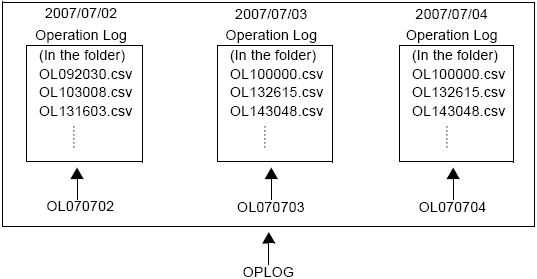

Files are automatically saved in CSV format in the folder created. The "OPLOG" folder is created in external storage designated as the save destination, and a folder is created in "OPLOG" daily.
For example, the folder to save in and the file name for the operation log saved at 13:16:3 on July 2, 2007
\\OPLOG\OL070702\OL131603.csv
Do not save any files other than operation logs in the "OPLOG" folder.
You can view operation log files on the display unit using the CSV Display.
26.7 Displaying/Editing CSV data on the Screen
