35.3.3 Procedure - Connecting a Printer Directly to the Display Unit

Configure settings to connect the display unit and a printer using a USB-PIO converter.

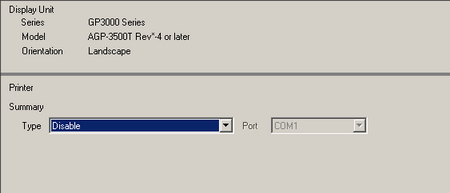

1. In the [Project] menu, select [System Settings] and then select [Printer].


2. Configure the printer type to use and the output port. (For example, [Type] EPSON PM/Stylus 6 Color, [Port] USB/PIO)



   • If the port is being used by another device, the mark displays next to the box. Select a port that is not used by another device/PLC.

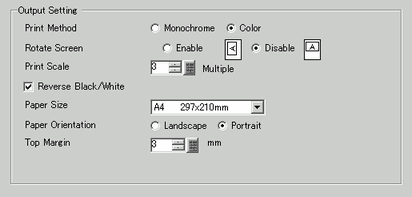

3. Configure the output settings. Configure the [Print Method], [Rotate Screen], [Print Scale], [Reverse Black/White], [Paper Size], [Paper Orientation], and [Top Margin] settings.

   The printer connection settings are complete.
   Connect the printer to the display unit with a specified output port (USB/PIO) and configure print settings for each feature. The printer starts.



   • For monochrome models, the print will be monochrome even if [Color] is selected for the [Print Method].
