You can paste instructions that were copied/cut to the desired location.

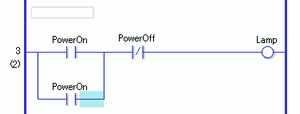

Here, paste the copied NO instruction (Normally Open) in the branch in the 3rd rung, for example.
![]()
Select where you want to insert the instruction.

![]()
If you select an instruction itself, the original instruction will be replaced with the copied instruction.
Click the icon
. The instruction on the clipboard is pasted.

![]()
You can also paste an instruction in either of the following ways.
Right-click to and then click [Paste (P)].
Press CTRL+V.
When an instruction is pasted, the operands of the instruction are also pasted. Edit the instruction as required.
30.6 Assigning Addresses to Instructions
