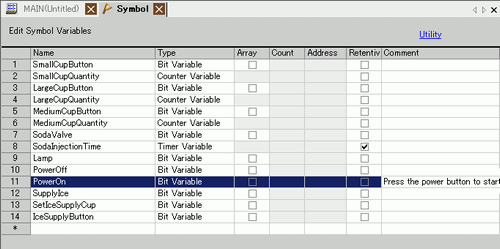

Enter variable comments in the [Edit Symbol Variable] window's [Comment] field. Enter up to 32 characters.
For how to input the symbol variable comments, refer to the following.
30.3.2.1 Registering Symbol Variables
You can also add and change the symbol variable comments in [Properties].
30.14.5 Using Reference Features to Search Logic Programs
You can display a list of symbol variable comments and edit the comments in the [Comment List] window.
30.7.4 [Comment List] Window

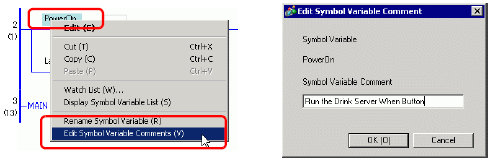

A comment about the system variable can be added or changed using the [Edit Symbol Variable Comment] dialog box, which is displayed by right-clicking the symbol variable section allocated to the instruction and selecting [Edit Symbol Variable Comments (V)].

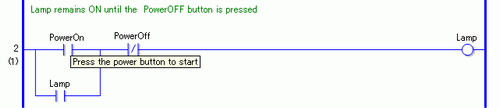

A comment about the symbol variable is displayed in a tool tip when the cursor is placed over the symbol variable part of the instruction.

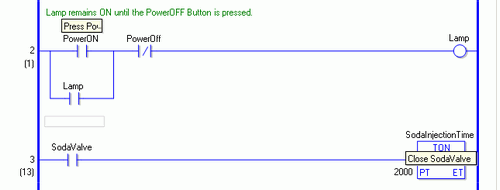

Press the [F9] key to display all comments in the logic.
If the entire comment does not fit in the comment area, the rest of the comment is indicated by a "...".
Click the comment to view it in its entirety.
You cannot edit the symbol variable comment during online monitoring.
