T.2.3.2 Is the driver for the USB cable installed?

Cause

The USB driver may not have been installed properly to your computer.

Solution

Follow the procedure below to check if the driver has been installed. The following procedure provides an explanation of cases in which a USB data transfer cable "CA3-USBCB-01", which is an optional part, is used, as an example.

  1. From the [Control Panel] of your computer, select [Device Manager].

  2. When [Device Manager] opens, double-click the [Universal Serial Bus Controller].
    If you find [USB Link Cable (CA3-USBCB-01)] in the displayed list, the driver has been installed successfully.

If the driver has not been installed, re-install it according to the procedure below.

Connect the computer and display unit using the USB cable.

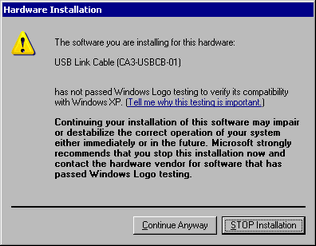

If the USB cable driver has not been installed, the following dialog box appears. Install the driver according to the instructions.
