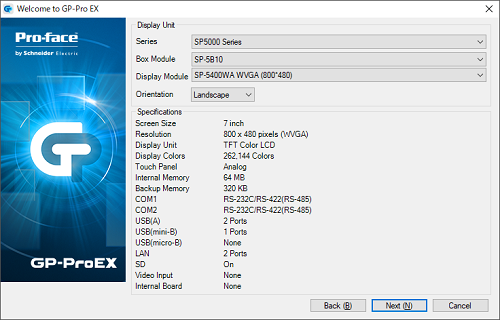

Display Unit
Set the Display Unit.
Series
Select the display unit series that will be used.
Box Module
When [SP5000 Series] is selected, choose your box module model.
Display Module
When [SP5000 Series] is selected, choose the display module model.
Model
Select one of the models from the series.
Select either the [Landscape] or [Portrait] display orientation. For models that support portrait installations, refer to the following.
Screen Size
In the following, select the display module model.
From [Series] select either[IPC Series(PC/AT)] or [GP-4G** Series]
For the [Series] select [SP5000 Series], for [Box Module] select [SP-5B41/5B41*], for [Display Module] select [DC Power Supply Adapter]
For [Series], select [GP6000 Series (Advanced)], and for [Model], select [PFXGP6B40*]
Revision
Select the display unit revision.
This property does not display for models that do not require the revision number.
Specifications
Displays the specifications of the display specified in [Display Unit].
