Catalog Manager
Displays the [Catalog Manager] dialog box.
31.10.4.2 Catalog Manager Dialog Box
Registered devices
Displays registered EDS in the [Catalog manager] dialog box.
Device Information
Display the contents of the registered EDS.
Add adapter
From the [Registered EDS], add the selected EDS to the tree view of the network configuration. Add up to 32 adapters.
Delete adapter
Delete the adapter selected in the tree view of the network configuration.
Setting
Display the settings of the node (scanner, adapter and connection) selected in the tree view of the network configuration.
Add connection
Add a connection to the adapter selected in the tree view of the network configuration. Select the connection in the [Add connection] dialog box.
Only one connection can be set up for each adapter.
Delete connection
Delete the connection to the adapter selected in the tree view of the network configuration.
Setting items vary depending on the node (scanner, adapter and connection) selected in the tree view of the network configuration.

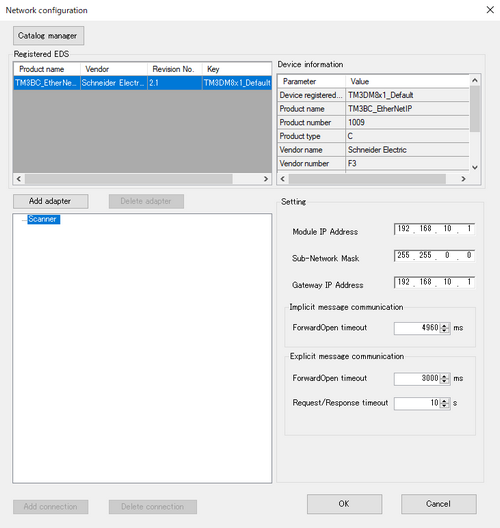

Scanner
Module IP Address
Set the IP address of the scanner (display unit).
Sub-Network Mask
Set the subnet mask of the scanner (display unit).
Gateway IP Address
Set the default gateway address of the scanner (display unit).
Implicit message communication
ForwardOpen timeout
Set the ForwardOpen timeout from 1,000 to 8,335,840 milliseconds.
Explicit message communication
ForwardOpen timeout
Set the ForwardOpen timeout from 1,000 to 8,335,840 milliseconds.
Request/Response timeout
Set the request and response timeout from 1 to 65535 seconds.
Adapter
IP Address
Set the adapter’s IP address.
Connection
Input
Set the data output from the adapter.
RPI(T->O)
Displays the communication frequency set in the EDS. The setting range is 2 to 65535 milliseconds.
Input size
Displays the size of the communication data set in the EDS. If the size is smaller than the size of the terminal assigned to the variable in the [I/O Settings] screen, the variable assignment is canceled.
Input priority
Displays the priority set in the EDS. Select from Schedule, High or Low, depending on the EDS settings.
Input mode
Displays the input mode set in the EDS. Select from Multicast, PointToPoint or Null, depending on the EDS settings.
Input trigger
Displays the input trigger set in the EDS. Select from Cyclic, ChangeOfState or Application, depending on the EDS settings.
Inhibit time mode
Select the inhibit time mode for when [ChangeOfState] is selected as the [Input trigger].
[Default]: 1/4 of RPI(T->O)
[Un-Activate]: 0
[Custom]: Value set in [Inhibit time]
Inhibit time
Set the inhibit time when [Custom] is selected as the [Inhibit time mode]. The setting range is 1 to 255 milliseconds. However, it must be smaller than the RPI(T->O).
Time-out Multiplier
Select a value to multiply the RPI value by to calculate the timeout value. Select the value to multiply by from the following.
x4
x8
x16
x32
x64
x128
x256
x512
Output O->T
Set the data output from the scanner (display unit).
RPI(O->T)
Displays the communication frequency set in the EDS. The setting range is 2 to 65535 milliseconds.
Output size
Displays the size of the communication data set in the EDS. If the size is smaller than the size of the terminal assigned to the variable in the [I/O Settings] screen, the variable assignment is canceled.
Output priority
Displays the priority set in the EDS. Select from Schedule, High or Low, depending on the EDS settings.
Output mode
Displays the output mode set in the EDS. Select from Multicast, PointToPoint or Null, depending on the EDS settings.
