31.11.1 Setup Flow - AnyWire

1. Select LT3000 Series as the display unit.

2. Select [AWBD2 (AnyWire Bus D2) Driver] from the I/O driver list.

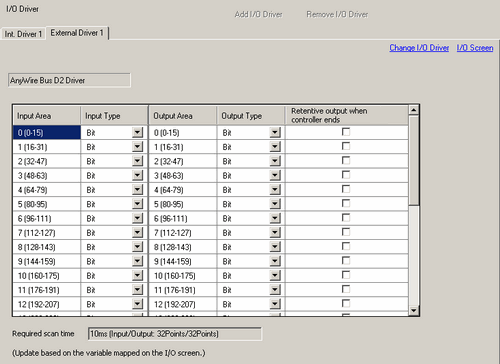

3. From the [System Settings] window, click [I/O Driver] and open the [External Driver] tab.


4. Set the [Input Type], [Output Type] and [Retentive output when controller ends] properties.

5. To map variables to terminals, click [I/O Screen] or select [I/O Screen] in the [Screen List] window. For information on how to map variables, refer to the following.
   31.11.2 Mapping I/O - AnyWire

6. Create a Logic Screen and a Base Screen to work with the mapped variables and then transfer to the display unit.
