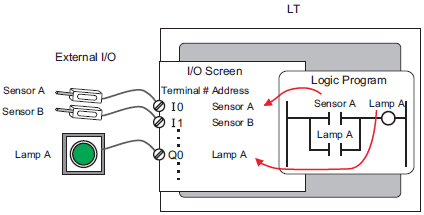

Terminal Structure
Different terminals are allocated for the standard I/O and for the special I/O (high-speed counter and PWM output and so on.).
Terminal for Standard Input:
X8 - X11 (LT-3200 Series)
X8 - X15 (LT-3300 Series / STC6000 Series)
X8 - X19 (LT4000 Series (DIO model))
X8 - X11 (LT4000 Series (analog model))
Terminal for Standard Output:
Y4 - Y5 (LT-3200 Series)
Y4 - Y15 (LT-3300 Series / STC6000 Series)
Y4 - Y11 (LT4000 Series (DIO model))
Y4 - Y7 (LT4000 Series (analog model))
Common terminal for standard I/O and special I/O:
X0 - X7, Y0 - Y3 (LT3000 Series / STC6000 Series)
X0 - X7 (LT4000 Series)
Special I/O output terminal:
Y0, Y1(LT4000 Series)
LT-3200 Series
LT-3300 Series / STC6000 Series
LT4000 Series (DIO model)
LT4000 Series (analog model)
