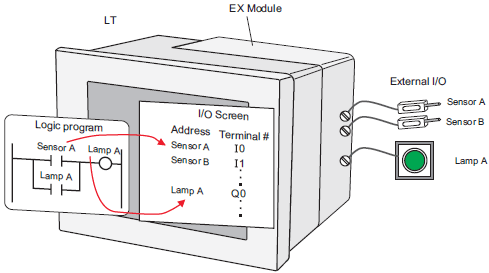

31.6 Controlling External I/O in LT3000 / STC6000 Series and EX Modules

Feature

Type

Description

Browse to

Standard Input

EXM-DDI8DT

DIO Module: 8-input sink/source

31.6.2.1 External Driver - DIO Input Module (8 points or 16 points)

EXM-DDI16DT

DIO Module: 16-input sink/source

Standard Output

EXM-DDO8UT

DIO module: 8-output sink

31.6.2.2 External Driver - DIO Output Module (8 points or 16 points)

EXM-DDO8TT

DIO module: 8-output source

EXM-DRA8RT

DIO module: 8-output relay

EXM-DDO16UK

DIO module: 16-output sink

EXM-DDO16TK

DIO module: 16-output source

EXM-DRA16RT

DIO module: 16-output relay

Standard I/O

EXM-DMM8DRT

DIO Module: 4-input sink/source

DIO module: 4-output relay

31.6.2.3 External Driver - DIO Input/Output Module

EXM-DMM24DRF

DIO Module: 16-input sink/source

DIO module: 8-output relay

Analog Input

EXM-AMI2HT

Analog Module: 2-input
Voltage (0 - 10V) / Current (0 - 20mA)

31.6.2.4 External Driver - Analog Input Module (2 points)

EXM-AMI4LT

Analog Module: 4-input
Voltage (0 - 10V) / Current (0 - 20mA) /Pt100/Pt1000/Ni100/Ni1000

31.6.2.5 External Driver - Analog Input Module (4 points)

EXM-ARI8LT

Analog Module: 8-input
Pt100/Pt1000

31.6.2.6 External Driver - Analog Input Module (8 points)

Analog Output

EXM-AMO1HT

Analog Module: 1-output
Voltage (0 - 10V) / Current (4 - 20mA)

31.6.2.7 External Driver - Analog Output Module (1 point)

EXM-AVO2HT

Analog Module: 2-output
Voltage (-10 - 10V)

31.6.2.8 External Driver - Analog Output Module (2 points)

Analog Input/Output

EXM-AMM3HT

Analog Module: 2-input
Voltage (0 - 10V) / Current (4 - 20mA)

Analog Module: 1-output
Voltage (0 - 10V) / Current (4 - 20mA)

31.6.2.9 External Driver - Analog Input/Output Module

EXM-AMM6HT

Analog Module: 4-input
Voltage (0 - 10V) / Current (4 - 20mA)

Analog Module: 2-output
Voltage (0 - 10V) / Current (4 - 20mA)

EXM-ALM3LT

Analog Module: 2-input
Thermocouple (K, I, T)/Pt100

Analog Module: 1-output
Voltage (0 - 10V) / Current (4 - 20mA)

31.6.2.10 External Driver - Temperature Input Module
