Parts ID
Parts are automatically assigned an ID number.
Switch/Lamp Parts ID : SL_**** (4 digits)
The letter portion of the ID is fixed and depends on the part. The number portion can be changed. The setting range is from 0000 to 9999.
Comment
The comment for each Part can be up to 20 characters.
Select Shape
The part shapes can be changed.

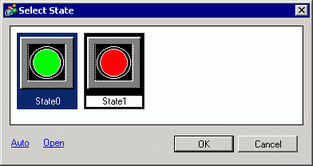

Double-click a part in each state in the [Select State Window], or click [Open] to display the [Shape Browser].

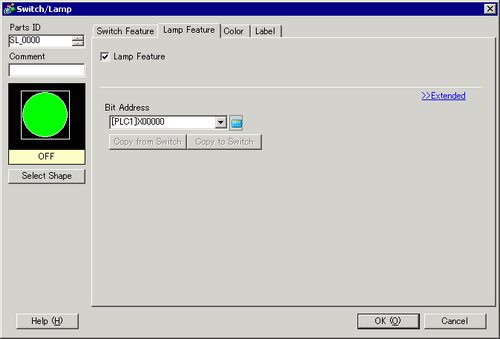

12.8.2 Lamp Feature - Extended / Bit Address
