21.4.1 Procedure - Moving Objects to show Changes in Condition

Using the current position as the start point, set the end position 200 pixels away, horizontally.

1. Select the object to move then from the [Edit (E)] menu click [Animation (N)], or right-click the object and select [Animation (N)].



   • The animation settings screen can also be displayed as follows.

   • Select an object on the screen, from the [Properties] window, [Animation], [Settings], click on the ellipsis [...].


   • On the [Screen Data List] dialog box, double click on the [Animation] column of the object you want to edit.

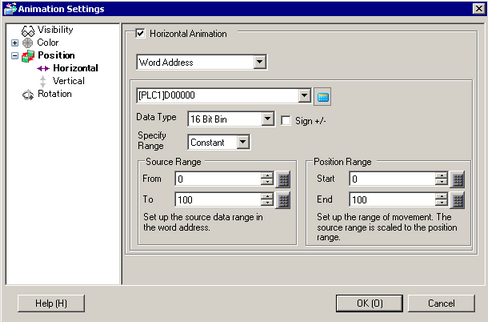

2. The [Animation Settings] dialog box appears. On the left pane, expand [Position] and select [Horizontal].

3. Select the [Horizontal Animation] check box.


4. Enter the address that defines how much to move. (For example, D100)



   • If you want to specify the distance using an expression, see the following.
     21.10.1 Numeric Expression

5. Configure the [Data Type]. For example, 16 Bit Bin.

6. Select [Specify Range] from [Constant] or [Address]. (For example, Constant)



   • If you select [Address] for [Specify Range], you can change the [Input Range] or [Position Range] during operation.

   • For more information about the relationship between [Source Range] and the [Position Range], please refer to the following.
     21.4.2 How Position Animation Works

7. For the [Source Range], enter the [From] and [To] values. (For example: From = 0, To = 100)

8. Select the [Position Range]'s [Start] and [End] points. (For example: Start = 0 and End = 200)

9. Click [OK].
