Value Change

The Value Change operation changes the value and property of Variable, Object, and Target.

Block

Text

changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, TARGET, EXPRESSION);

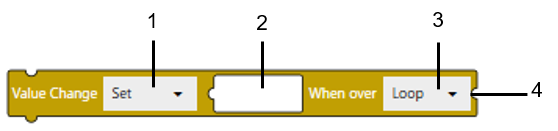

3 1 2 4

1: Operation

2: Destination

3: When over

Set the operation when the value exceeds the range.

Setting in [When over]:

[Loop]: The portion that exceeds the range loops to either the minimum or maximum value. For example, if the value range is 0 to 10, adding 7 to a current value of 5 will result in 1. The only exception is when the operation is [Set]. In that case, when you write a value that exceeds the value range, the current value remains unchanged.
[Stop]: The value is set to either the minimum value or maximum value.

Note: [Loop] does not support Real data type variables, which cause the loop to stop when the maximum value is reached.

4: Source

Operation

[Set]	Block [Set] Text '$Enums.AssignmentOperator.Set' Or '='	Writes the variable, constant, or expression specified in the source block to the destination block.
[AddTo]	Block [AddTo] Text '$Enums.AssignmentOperator.AddTo' Or '+='	Adds the variable, constant, or expression specified in the source block to the destination block.
[SubTo]	Block [SubTo] Text '$Enums.AssignmentOperator.SubTo' Or '-='	Subtracts the variable, constant, or expression specified in the source block to the destination block.
[MulTo]	Block [MulTo] Text '$Enums.AssignmentOperator.MulTo' Or '*='	Multiplies the value of the destination block by the variable, constant, or expression specified in the source block, and copies the result to the destination block.
[DivTo]	Block [DivTo] Text '$Enums.AssignmentOperator.DivTo' Or '/='	Divides the value of the destination block by the variable, constant, or expression specified in the source block, and copies the result to the destination block.
[AndTo]	Block [AndTo] Text '$Enums.AssignmentOperator.AndTo' Or '&='	Runs the AND operation (logical product) between the integer or variable specified in the source block and the destination block, and copies the result to the destination block.
[OrTo]	Block [OrTo] Text '$Enums.AssignmentOperator.OrTo' Or '\|='	Runs the OR operation (logical sum) between the integer or variable specified in the source block and the destination block, and copies the result to the destination block.
[XorTo]	Block [XorTo] Text '$Enums.AssignmentOperator.XorTo' Or '^='	Runs the XOR operation (exclusive logical sum) between the integer or variable specified in the source block and the destination block, and copies the result to the destination block.
[NandTo]	Block [NandTo] Text '$Enums.AssignmentOperator.NandTo'	Runs the NAND operation (logical product followed by NOT) between the integer or variable specified in the source block and the destination block, then copies the result to the destination block.
[NorTo]	Block [NorTo] Text '$Enums.AssignmentOperator.NorTo'	Runs the NOR operation (logical sum followed by inverter) between the integer or variable specified in the source block and the destination block, and copies the result to the destination block.

Note:

You cannot use a negative value in a Math block and Value Change operation with mathematical operators divide (/) or modulo (%).
When you use 16 or more decimal digits in a Value Change operation (AddTo, SubTo, DivTo, MulTo), then use LINT or ULINT as the destination variable.

The [Value Change] operation allows you to set a variable or source property as the destination.

Variable Value Change - INTEGER
Variable Value Change - DATE AND TIME
Variable Value Change - BOOL
Variable Value Change - STRING
Object Source Property Value Change
Variable Source Property Value Change
Target Source Property Value Change

Variable Value Change - INTEGER

Set the value of the source block to the variable in the destination block.

(Example): Set

Operation	Destination Block	Source Block
[Set]	Set the variable INT1 to the Variable block.	Select [Int] and set 5 to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, INT1, 5);

→ INT1 is set to 5 when the script is executed.

(Example): AddTo

Operation	Destination Block	Source Block
[AddTo]	Set the variable INT1 to the Variable block.	Select [Int] and set 7 to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.AddTo, INT1, 7);

→ If INT1 is 3 when the script is executed, 7 of the source block is added and INT1 becomes 10.

(Example): SubTo

Operation	Destination Block	Source Block
[SubTo]	Set the variable INT1 to the Variable block.	Select [Int] and set 3 to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.SubTo, INT1, 3);

→ If INT1 is 5 when the script is executed, the value 3 in the source block is subtracted and INT1 becomes 2.

(Example): DivTo

Operation	Destination Block	Source Block
[DivTo]	Set the variable INT1 to the Variable block.	Select [Int] and set 2 to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.DivTo, INT1, 2);

→ If INT1 is 5 when the script is executed, its value is divided by the source block value of 2 and INT1 becomes 2. If the value is an integer type, the decimal point value is truncated.

(Example): MulTo

Operation	Destination Block	Source Block
[MulTo]	Set the variable INT1 to the Variable block.	Select [Int] and set 5 to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.MulTo, INT1, 5);

→ If INT1 is 3 when the script is executed, its value is multiplied by the source block value of 5 and INT1 becomes 15.

(Example): AndTo

Operation	Destination Block	Source Block
[AndTo]	Set the variable SINT1 to the Variable block.	Set the variable SINT2 to the Variable block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.AndTo, SINT1, SINT2);

→ If SINT1 is 3 (binary: 00000011) and SINT2 is 5 (binary: 00000101), SINT1 will be 1 (binary: 00000001) when the trigger occurs.

The logical expression converts the value of the destination block and the source block to binary numbers and calculates the logical product at each digit. Set the result back to the original radix and set it to the destination block.

(Example): OrTo

Operation	Destination Block	Source Block
[OrTo]	Set the variable SINT1 to the Variable block.	Set the variable SINT2 to the Variable block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.OrTo, SINT1, SINT2);

→ If SINT1 is 3 (binary: 00000011) and SINT2 is 5 (binary: 00000101), SINT1 will be 7 (binary: 00000111) when the trigger occurs.

The logical expression converts the value of the destination block and the source block to binary numbers and calculates the logical sum at each digit. Set the result back to the original radix and set it to the destination block.

(Example): XorTo

Operation	Destination Block	Source Block
[XorTo]	Set the variable SINT1 to the Variable block.	Set the variable SINT2 to the Variable block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.XorTo, SINT1, SINT2);

→ If SINT1 is 3 (binary: 00000011) and SINT2 is 5 (binary: 00000101), SINT1 will be 6 (binary: 00000110) when the trigger occurs.

The logical expression converts the value of the destination block and the source block to binary numbers and calculates an exclusive logical sum at each digit. Set the result back to the original radix and set it to the destination block.

(Example): NandTo

Operation	Destination Block	Source Block
[NandTo]	Set the variable SINT1 to the Variable block.	Set the variable SINT2 to the Variable block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.NandTo, SINT1, SINT2);

→ If SINT1 is 3 (binary: 00000011) and SINT2 is 5 (binary: 00000101), SINT1 will be -2 (binary: 11111110) when the trigger occurs.

The logical expression converts the value of the destination block and the source block to binary numbers and calculates the negative logical product at each digit. Set the result back to the original radix and set it to the destination block.

(Example): NorTo

Operation	Destination Block	Source Block
[NorTo]	Set the variable SINT1 to the Variable block.	Set the variable SINT2 to the Variable block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.NorTo, SINT1, SINT2);

→ If SINT1 is 3 (binary: 00000011) and SINT2 is 5 (binary: 00000101), SINT1 will be -8 (binary: 11111000) when the trigger occurs.

The logical expression converts the value of the destination block and the source block to binary numbers and calculates a logical sum followed by Inverter at each digit. Set the result back to the original radix and set it to the destination block.

Variable Value Change - DATE AND TIME

Set the date and time value from the source variable to the destination variable.

DATE, TIME_OF_DAY, and DATE_AND_TIME variables support the [Set] and [AddTo] operator.

The following illustrates operation behavior when the Source Block and Destination Block are DATE, TIME_OF_DAY, or DATE_AND_TIME variables:

Operation	Source Block	Destination Block	Behavior
[Set]	DATE	DATE	Set date.
		TIME_OF_DAY	No value is set.
		DATE_AND_TIME	Set date only.
	TIME_OF_DAY	DATE	No value is set.
		TIME_OF_DAY	Set time.
		DATE_AND_TIME	Set time only.
	DATE_AND_TIME	DATE	Set date only.
		TIME_OF_DAY	Set time only.
		DATE_AND_TIME	Set date and time.
[AddTo]	DATE	DATE	Add date.
		TIME_OF_DAY	No value is set.
		DATE_AND_TIME	Add date only.
	TIME_OF_DAY	DATE	No value is set.
		TIME_OF_DAY	Add time.
		DATE_AND_TIME	Add time only.
	DATE_AND_TIME	DATE	Add date only.
		TIME_OF_DAY	Add time only.
		DATE_AND_TIME	Add date and time.

(Example): Set

Operation	Destination Block	Source Block
[Set]	Set the variable TIME_OF_DAY1 to the Variable block.	Select [TIME_OF_DAY] and set 00:15:00 to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, TIME_OF_DAY1, timeOfDay(00, 15, 00)); → When the trigger occurs, the time in TIME_OF_DAY1 is set to 00:15:00.

Note: If a source block is set to a [constant] date or time, any date or time value not included in the constant will be zero. For example, if you write a constant time to the DATE_AND_TIME variable, the date value will be 0 (1970/01/01).

(Example): AddTo

Operation	Destination Block	Source Block
[AddTo]	Set the variable DATE_AND_TIME1 to the Variable block.	Select [TIME_OF_DAY] and set 00:15:00 to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.AddTo, DATE_AND_TIME1, timeOfDay(00, 15, 00));

→ If DATE_AND_TIME1 is 2024/10/01 12:34:56, when the trigger occurs, 00:15:00 in the source block is added and DATE_AND_TIME1 becomes 2024/10/01 12:49:56.

Variable Value Change - BOOL

A single bit of data is set to the destination variable.

(Example): Set

Operation	Destination Block	Source Block
[Set]	Set the variable BOOL1 to the Variable block.	Select [Int] and set 1 to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, BOOL1, 1);

→ BOOL1 is set to ON when the trigger occurs.

Variable Value Change - STRING

A string is set to the destination variable.

(Example): Set

Operation	Destination Block	Source Block
[Set]	Set the variable STRING1 to the Variable block.	Select [STRING] and set "DEF" to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, STRING1, "DEF");

→ STRING1 is set to DEF when the trigger occurs.

(Example): AddTo

Operation	Destination Block	Source Block
[AddTo]	Set the variable STRING1 to the Variable block.	Select [STRING] and set "DEF" to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.AddTo, STRING1, "DEF");

→ If STRING1 is "AB", when the trigger occurs, "DEF" is added to the source block and STRING1 becomes "ABDEF".

Object Source Property Value Change

Set the value in the source block to the source property in the destination block.

(Example 1)

Operation	Destination Block	Source Block
[Set]	Set the object source property Rectangle1.Thickness to the Object block.	Select [Int] and set 10 to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, $GraphicObject.Rectangle1.Thickness, 10);

→ The Rectangle1 border thickness changes to 10 when the trigger occurs.

(Example 2)

Operation	Destination Block	Source Block
[Set]	Set the object source property Lamp1.Interlock to the Object block.	Select [Int] and set 0 to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, $GraphicObject.Lamp1.Interlock, 0);

→ Lamp1 interlock state is set to OFF when the trigger occurs.

Variable Source Property Value Change

Set the value in the source block to the source property in the destination block.

(Example)

Operation	Destination Block	Source Block
[Set]	Set the variable source property INT1.Value to the Variable block.	Select [Int] and set 1 to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, INT1.Value, 1);

→ INT1.Value is set to 1 when the trigger occurs.

Target Source Property Value Change

Set the value in the source block to the source property in the destination block.

(Example 1)

Set a date for the Target.

Operation	Destination Block	Source Block
[Set]	Set target source property Target01.DateAndTime.Date to the Target block.	Select [Date] and set 10/17/2017 to the Constant block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, $Target.Target01.DateAndTime.Date, date(2017, 10, 17));

→ Display unit is set to 10/17/2017 when the trigger occurs.

(Example 2)

Set the date and time of the display unit to the same date and time as the external device.

(Example 2-1)

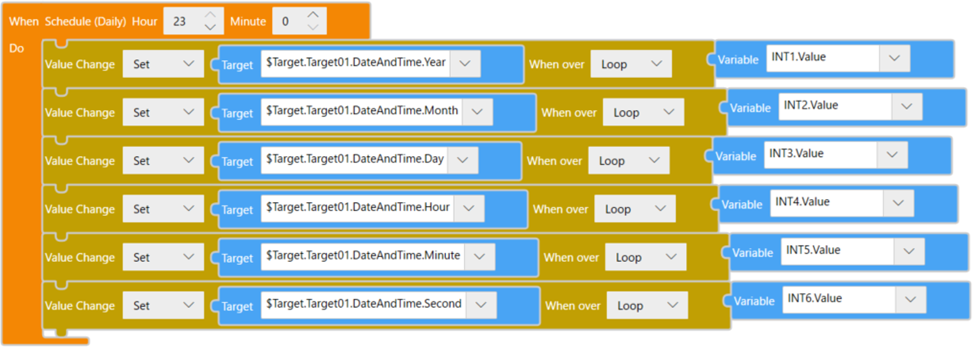

Set the date and time (year, month, day, hours, minutes, seconds) of the external device to integer variables INT1 to INT6, respectively.

Operation

Destination Block

Source Block

[Set]

Set the target source property to the Target block.

Target01.DateAndTime.Year

Target01.DateAndTime.Month

Target01.DateAndTime.Day

Target01.DateAndTime.Hour

Target01.DateAndTime.Minute

Target01.DateAndTime.Second

Set the variable INT1 to INT6 to the Variable block.

Block

Text

onScheduledDay(23, 0, () => {

changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, $Target.Target01.DateAndTime.Year, INT1.Value);

changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, $Target.Target01.DateAndTime.Month, INT2.Value);

changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, $Target.Target01.DateAndTime.Day, INT3.Value);

changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, $Target.Target01.DateAndTime.Hour, INT4.Value);

changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, $Target.Target01.DateAndTime.Minute, INT5.Value);

changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, $Target.Target01.DateAndTime.Second, INT6.Value);

});

→ The date and time on the display unit are set to the date and time of the external device at 23:00 every day.

(Example 2-2)

Set the date and time of the external device to a DATE_AND_TIME variable Var1 as the number of seconds (32-bit integer) from 1970/01/01 00:00:00 UTC. For the relationship between the value of Var1 and the date and time, refer to the following.

TIME, DATE, TIME_OF_DAY, DATE_AND_TIME

Operation	Destination Block	Source Block
[Set]	Set the target source property Target01.DateAndTime.DateTime to the Target block.	Set the variable Var1 to the variable block.

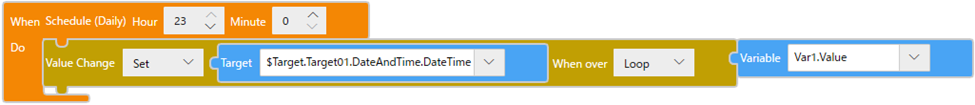

Block Text onScheduledDay(23, 0, () => { changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, $Target.Target01.DateAndTime.DateTime, Var1.Value); });

→ The date and time on the display unit are set to the date and time of the external device at 23:00 every day.

(Example 3)

Turn off the backlight of the display unit.

Operation	Destination Block	Source Block
[Set]	Set the target source property Target01.Preferences.BacklightOff to the Target block.	Set the variable BOOL1 with value 1 in the Variable block.
Block Text changeValue($Enums.WhenOver.Loop, $Enums.AssignmentOperator.Set, $Target.Target01.Preferences.BacklightOff, BOOL1.Value);

→ The display unit's backlight turns off when the trigger occurs.
