Block Trend

The Block Trend operation draws/clears an individual or all channels on the desired block trend graph.

Note:

For information on the naming convention and script keywords, refer to the following.
Naming Conventions
Block
Text

refreshBlockTrend(BLOCKTREND,[],$Enums.DrawMode.ClearAndDraw);
                       1     2                3

1: Block Trend
Select target Block Trend.
2: Channel
Select the channel that displays in the Block Trend.
3: Operation
Select the Clear and Draw operation

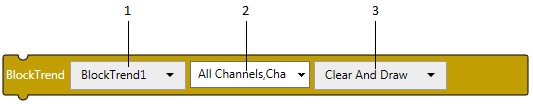

(Example)

Block

Text

refreshBlockTrend($GraphicObject.BlockTrend1,[$Enums.Channels.All],$Enums.DrawMode.ClearAndDraw);

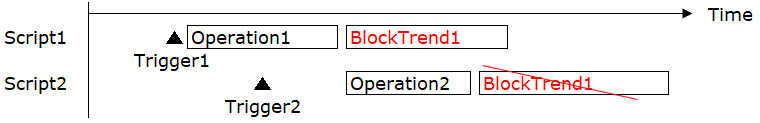

Note: If multiple triggers cause the overlap of the execution timing of [Block Trend] operations on the same Block Trend object, the latter [Block Trend] operations are skipped.

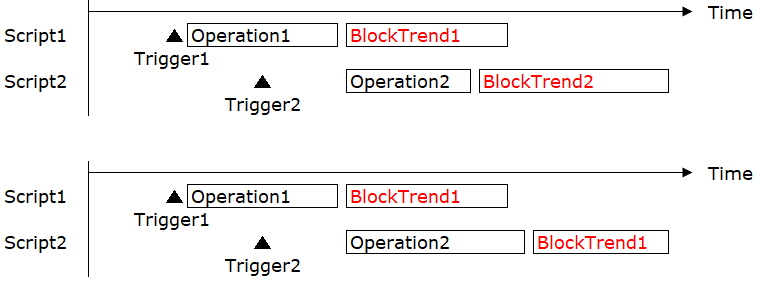

If multiple triggers cause the overlap of the execution timing of [Block Trend] operations on different Block Trend objects, or if the execution timing of [Block Trend] operations on the same Block Trend object do not overlap, the latter [Block Trend] operations are executed.

Clear And Draw

This operation allows you to clear the plotted graph and plots again.

Block

[Clear And Draw]

Text

'$Enums.DrawMode.ClearAndDraw'

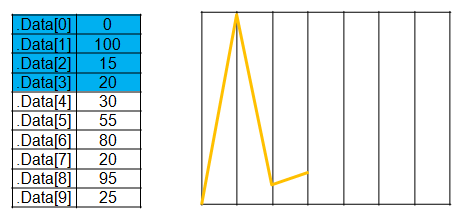

Clear And Draw Operation

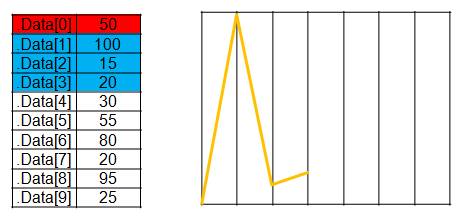

Updated array variable values



Clear And Draw Operation

Clear

This operation allows you to clear the plotted graph.

Block

[Clear]

Text

'$Enums.DrawMode.Clear'

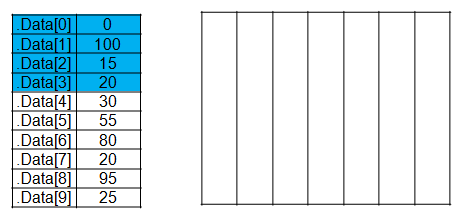

Clear And Draw Operation



Clear Operation

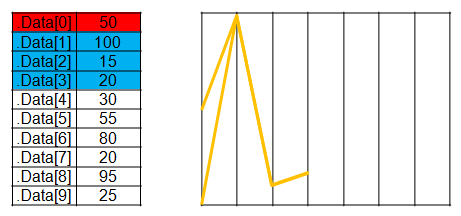

Draw

This operation allows you to plot the graph. A graph is always added.

Block

[Draw]

Text

'$Enums.DrawMode.Draw'

Clear And Draw Operation



Updated array variable values



Draw Operation
