Values
Value block refers to the value of a specified variable or property. You can read or overwrite values that are stored using a value block.
- To specify a property in a value block, use a period (.). For example, to specify the text color in NumericDisplay1, set "NumericDisplay1.TextColor".
- For information on the naming convention and script keywords, refer to the following.
Naming Conventions
Variable
This block defines a variable. Set the desired variable.
Block
Text
'Var1' or '$Global.Var1'
Local Variable
This block defines a local variable. Set the desired local variable.
Block
Text
'$Local.Var1'
Screen Object
This block defines a screen or object. Set the desired screen or object.
Block
Text
'$GraphicObject.NumericDisplay1'
Constant
This block defines a constant value. Select the data type and set the desired value. To define Int, Bool, String or Float data type when [Script Mode] is [Text], type the value.Block
Text
Int, Bool, String or Float
'2', 'true', 'ABC', '1.23'
Time
'time(0)'
Date
'date(YYYY, MM, DD)'
Time of Day
'timeOfDay(H, M, S)'
Date and Time
'datetime(YYYY, MM, DD, H, M, S)'
Address
'address(123.123.123.123)'
| Type | Range |
| Int | -2147483648...4294967295 |
| Bool | True or False |
| String | Stores up to 1024 characters. |
| Float | -1.7E308...1.7E308
The precision of float data is limited to 15 digits. |
| Time(ms) | -2147483648...2147483647 |
| Date | 1/1/1970...2/7/2106 |
| TimeOfDay | 00:00:00...23:59:59 |
| DateAndTime | 1/1/1970 00:00:00...2/7/2106 6:28:15 |
| Address | 000.000.000.000...255.255.255.255 |
Target
This block defines the display unit property, either '$Target' for the display unit or '$FTP' for the FTP server.
Target property
Block
Text
'$Target.Target01'
FTP server property
Block
Text
'$FTP'
Alarm
This block defines an Alarm property except Alarm Group. Set the desired Alarm property.
Block
Text
'$AllAlarm'
Alarm Group
This block defines an Alarm Group property. Set the desired Alarm Group property.
Block
Text
'$AlarmGroup.AlarmGroup1'
Data Logging
This block defines a Data Logging property. Set the desired Data Logging property.
Block
Text
'$DataLogging.LoggingGroup1'
Recipe
This block defines a Recipe property (except Recipe Control properties). Set the desired Recipe property.
Block
Text
'$Ingredient.RecipeFamily1'
Recipe Control
This block defines a Recipe Control property. Set the desired Recipe Control property.
Block
Text
'$RecipeControl.RecipeControl1'
After specifying the Recipe Control properties ([Recipe Family ID],
[Recipe Group ID] and [Recipe ID]), execute the [Recipe] operation.
[Recipe Control] alone cannot perform operations on the recipe data.
Recipe

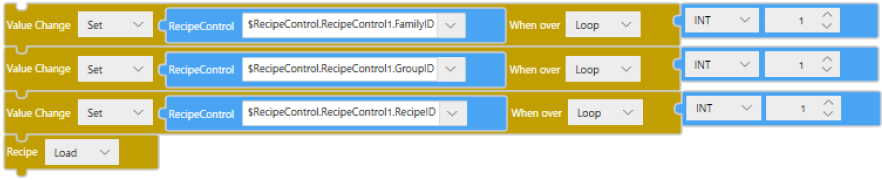

(Example)
When reading recipe data with FamilyID=1,
GroupID=1
and RecipeID=1
Block
Text
'$RecipeControl.RecipeControl1.FamilyID
= 1;
$RecipeControl.RecipeControl1.GroupID = 1;
$RecipeControl.RecipeControl1.RecipeID = 1;
loadRecipe();'
Operation Log
This block defines an Operation Log property. Set the desired Operation Log property.
Block
Text
'$OperationLog'
Equipment
This block defines the equipment property. Set the desired Equipment property.Block
Text
'$Device.ModbusTCPDriver1.SchneiderModbusTCPIPEquipment1.ScanOffStatus'
Language Text ID
This block specifies the table ID using a value block such as a variable block or constant block.
If the table ID value is out of range or the variable quality is "bad", the trigger or operation that uses this block will not execute and the script will execute the next trigger or operation.
Which table string is output is specified by the [User Language ID].
[Target01] property window ➞ Function] tab ➞ [Options] tab ➞ [Preferences]Block
Text
'getLanguageText(EXPRESSION)'

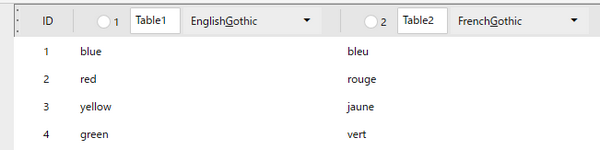

(Example)
In the following, if the [User Language ID] is 1 and table ID is 1, output is "blue".
Block
Text
'getLanguageText(1)'
This block outputs text with the font type set in the language table. If the font type of the output text does not match the font type of the object, such as a switch that uses the text, the text may not display properly.
To match font types, associate the object's font type to the source property 'Target01.Preference.LanguageID' of [User Language ID]. Note that when associating source properties, create and select a range converter that converts the language ID to the font type value (Dec) set in the language table.
