Types of Converters

You can convert the value of property by using below features.

Type	Description
Unit	Convert the value of property according to set unit.
Scale	Convert the value of property according to set input and output ranges.
Range	Outputs the specified value of a property when the input value falls within the set range.
Expression	Calculates and outputs the value of property according to the set expression.

Note: You can register up to 1024 converters.

[Unit]

The Unit converter is used to convert one system of units to another.

The following units are supported:

Category	Unit
Temperature	C
Temperature	F
Length	mm
	cm
	m
	km
	in
	ft
	yd
	mi
Weight	mg
	g
	kg
	Oz
	Lbs
Area	m2
	km2
	in2
	ft2
	yd2
	acre
	mi2
Pressure	Pa
	kPa
	MPa
	bar
	atm
	at
	Torr
	psi
Volume	ml
	cl
	dl
	l
	gal (US lqd)
	gal (US dry)
	gal (UK)
	mm3
	cm3
	m3
	km3
	cu in
	cu ft
	ac ft
	bu (US)
	bu (UK)
	fl oz (US)
	fl oz (UK)
	gi (US)
	gi (UK)
	pt (US lqd)
	pt (US dry)
	pt (UK)
	qt (US lqd)
	qt (US dry)
	qt (UK)
	bl (US lqd)
	bl (US dry)
	bl (UK)

The Scale converter is used to convert the value of property according to the set input and output ranges. The input value refers to the data from the device address. The output value refers to the value displayed on the screen.

(Example)

[Minimum (Source)]: 0

[Maximum (Source)]: 400

[Minimum (Output)]: 0

[Maximum (Output)]: 20

[Range]

The Range converter is used to output the specified value of property when the input value falls within the set range.

Set the conditional expression ([Range]), and the value to be obtained as output ([Data Type (Result)]).

(Example)

Example

[Data Type (Source)]

[Data Type (Result)]

Setting in [Range]

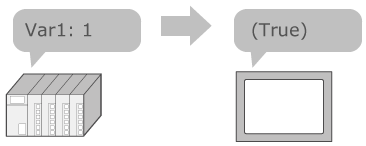

When the value of the variable (numeric) is greater than or equal to "1", the value will be converted to a boolean value "True".

[Numeric]

[Boolean]

Property	Value
[Data (Input)]	1
[Operator]	[>=]
[Data (Output)]	[True]

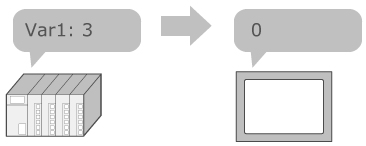

When the value of the variable (numeric) is greater than "2", the value will be converted to a numeric value "0".

[Numeric]

Property	Value
[Data (Input)]	2
[Operator]	[>]
[Data (Output)]	0

When the value of the variable (string) equal to the text "END", the value will be converted to a string "OK".

[String]

Property	Value
[Data (Input)]	END
[Operator]	[==]
[Data (Output)]	OK

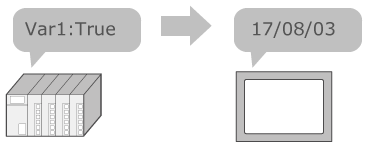

When the value of the variable (boolean) equal to "True", the value will be converted to a date and time "17/08/03".

[Boolean]

[Date/Time]

Property	Value
[Data (Input)]	[True]
[Operator]	[==]
[Data (Output)]	17/08/03

When the value of the variable (date and time) is before or equal to "2017/08/09 10:15:20", the value will be converted to a color ID "ID:3".

[Date/Time]

[Color ID]

Property	Value
[Data (Input)]	2017/08/09 10:15:20
[Operator]	[<=]
[Data (Output)]	[ID:3]

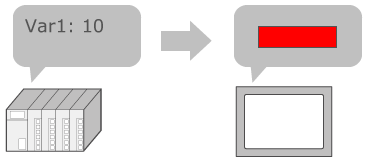

When the value of the variable (numeric) is less than or equal to "10", the value will be converted to a color code "#FF0000".

[Numeric]

[Color Code]

Property	Value
[Data (Input)]	10
[Operator]	[<=]
[Data (Output)]	#FF0000

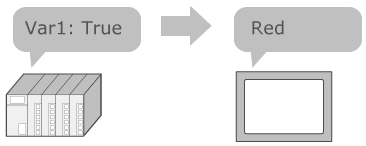

When the value of the variable (boolean) equal to "True", the value will be converted to a language text "1:Red".

[Boolean]

[Language Text]

Condition: [From] [==] True, [To] 1:Red

Value: True

Property	Value
[Data (Input)]	[True]
[Operator]	[==]
[Data (Output)]	[Language Text] [Source Property] : [1:Red]

Expression

The Expression converter is used to calculate and output the value of property according to the set expression. Expressions can be set in the Expression Editor.

Expression Editor

(Example)

[Expression]: [FromData] + Var1.Value* 10

Value: [FromData] = 5, Var1.Value = 10

Result: 105

Note: [FromData] refers to the source property value. For example, if you associate Var1 with [Current Value] in the Numeric Display, the value of Var1 is assigned to [FromData].
