Example of Screen Transitions with Multi-Layer Folders
This section describes screen transition in the example below.
- 1st Layer: [Left], 2nd Layer: [Left]
- 1st Layer: [Left], 2nd Layer: [Icon]
- 1st Layer: [Left], 2nd Layer: [slide]
- 1st Layer: [Icon], 2nd Layer: [Icon]
- 1st Layer: [Icon], 2nd Layer: [Left]
- 1st Layer: [Icon], 2nd Layer: [Slide]
- 1st Layer: [Slide], 2nd Layer: [Slide]
- 1st Layer: [Slide], 2nd Layer: [Left]
- 1st Layer: [Slide], 2nd Layer: [Icon]
1st Layer: [Left], 2nd Layer: [Left]
Item |
Navigation |
| Screen 1,2,5 |

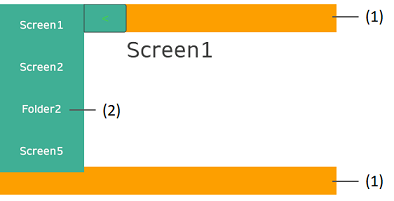

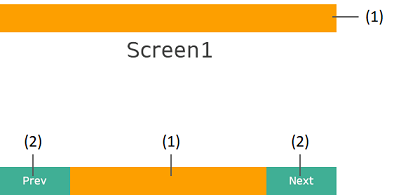

(1): Header / Footer of 1st hierarchy master screen (2): Switches to the 2nd hierarchy navigation |
| Screen 3,4 |

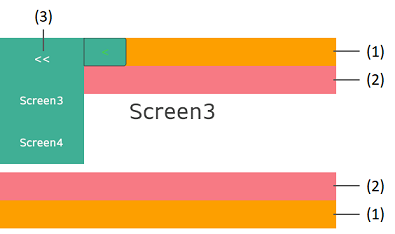

(1): Header / Footer of 1st hierarchy master screen (2): Header / Footer of 2nd hierarchy master screen (3): Switches to the 1st hierarchy navigation |
1st Layer: [Left], 2nd Layer: [Icon]
Item |
Navigation |
| Screen 1,2,5 |
(1): Header / Footer of 1st hierarchy master screen (2): Switches to the 2nd hierarchy initial screen |
| Screen 3,4 |
(1): Header / Footer of 1st hierarchy master screen (2): Header / Footer of 2nd hierarchy master screen (3): Switches to the 2nd hierarchy home screen 2nd hierarchy home screen  |
1st Layer: [Left], 2nd Layer: [slide]
Item |
Navigation |
| Screen 1,2,5 |
(1): Header / Footer of 1st hierarchy master screen (2): Switches to the 2nd hierarchy folder initial screen |
| Screen 3,4 |

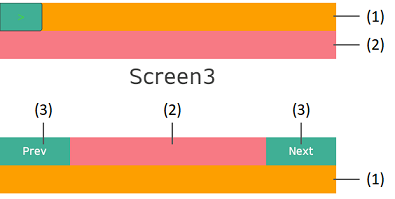

(1): Header / Footer of 1st hierarchy master screen (2): Header / Footer of 2nd hierarchy master screen (3): Slide Navigation Switch |
Screen Transition by Slide Navigation Switch:
1st Layer: [Icon], 2nd Layer: [Icon]
Item |
Navigation |
| Screen 1,2,5 |
(1): Header / Footer of 1st hierarchy master screen (2): Switches to the 1st hierarchy home screen 1nd hierarchy home screen
(3): Switches to the 2nd hierarchy home screen |
| Screen 3,4 |
(1): Header / Footer of 1st hierarchy master screen (2): Header / Footer of 2nd hierarchy master screen (3): Switches to the 2nd hierarchy home screen 2nd hierarchy home screen
(4): Switches to the 1st hierarchy home screen |
1st Layer: [Icon], 2nd Layer: [Left]
Item |
Navigation |
| Screen 1,2,5 |
(1): Header / Footer of 1st hierarchy master screen (2): Switches to the 1st hierarchy home screen 2nd hierarchy home screen
(3): Switches to the 2nd hierarchy initial screen |
| Screen 3,4 |
(1): Header / Footer of 1st hierarchy master screen (2): Header / Footer of 2nd hierarchy master screen (3): Switches to the 1st hierarchy home screen |
1st Layer: [Icon], 2nd Layer: [Slide]
Item |
Navigation |
| Screen 1,2,5 |
(1): Header / Footer of 1st hierarchy master screen (2): Switches to the 1st hierarchy home screen 2nd hierarchy home screen
(3): Switches to the 2nd hierarchy initial screen |
| Screen 3,4 |
(1): Header / Footer of 1st hierarchy master screen (2): Header / Footer of 2nd hierarchy master screen (3): Switches to the 1st hierarchy home screen (4): Slide Navigation Switch |
Screen Transition by Slide Navigation Switch:
1st Layer: [Slide], 2nd Layer: [Slide]
Item |
Navigation |
| Screen 1,2,5 |
(1): Header / Footer of 1st hierarchy master screen (2): Slide Navigation Switch |
| Screen 3,4 |

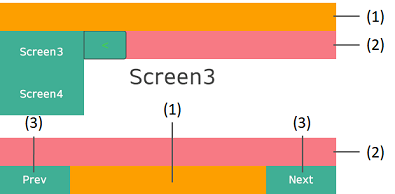

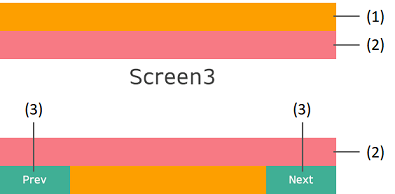

(1): Header / Footer of 1st hierarchy master screen (2): Header / Footer of 2nd hierarchy master screen (3): Slide Navigation Switch |

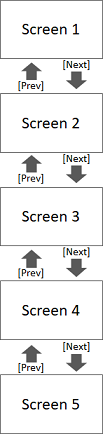

Screen Transition by Slide Navigation Switch (When 2nd hierarchy initial screen is Screen 3):

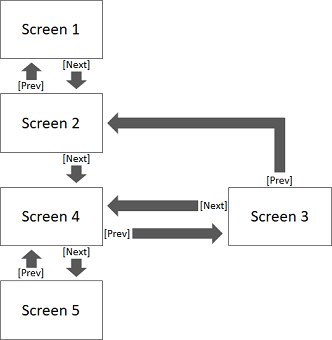

Screen Transition by Slide Navigation Switch (When 2nd hierarchy initial screen is Screen 4):
1st Layer: [Slide], 2nd Layer: [Left]
Item |
Navigation |
| Screen 1,2,5 |
(1): Header / Footer of 1st hierarchy master screen (2): Slide Navigation Switch |
| Screen 3,4 |
(1): Header / Footer of 1st hierarchy master screen (2): Header / Footer of 2nd hierarchy master screen (3): Slide Navigation Switch |

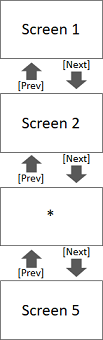

Screen Transition by Slide Navigation Switch:
*: 2nd hierarchy initial screen
1st Layer: [Slide], 2nd Layer: [Icon]
Item |
Navigation |
| Screen 1,2,5 |
(1): Header / Footer of 1st hierarchy master screen (2): Slide Navigation Switch |
| Screen 3,4 |
(1): Header / Footer of 1st hierarchy master screen (2): Header / Footer of 2nd hierarchy master screen (3): Slide Navigation Switch (4): Switches to the 2nd hierarchy home screen 2nd hierarchy home screen  |
Screen Transition by Slide Navigation Switch:
*: 2nd hierarchy initial screen
